Kamstrup MULTICAL 403 Technical Description

MULTICAL® 403
108
Kamstrup A/S · Technical description · FILE100000166_B_EN-55121689_M1_07.2023

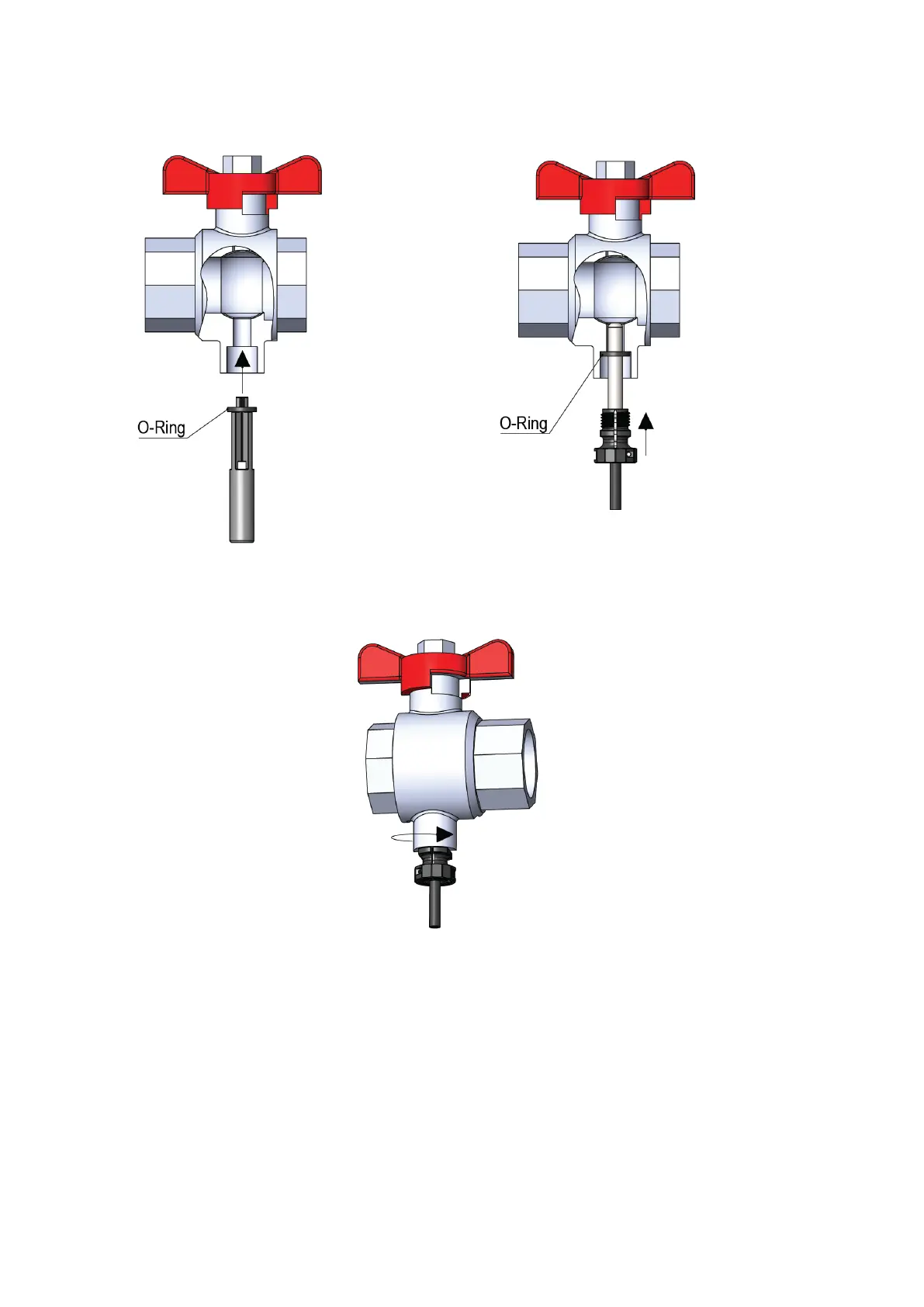

The O-ring duct is used for pushing the O-ring into place
after which the temperature sensor can be pushed to the bottom.
The composite union nut is tightened by hand. No tools must be used.

Kamstrup MULTICAL 403 Specifications

General

Type	Ultrasonic Heat Meter
Flow Sensor	Ultrasonic
Pressure Rating	PN16
Battery Life	Up to 16 years
Approval	MID Class 2
Display	LCD
Communication	M-Bus, Wireless M-Bus, Modbus, BACnet
Power Supply	Battery
Accuracy	Class 2
Protection Class	IP54
Housing Material	Composite
Flow Rate Range	0.6 m3/h to 15 m3/h
