MULTICAL® 403
38
Kamstrup A/S · Technical description · FILE100000166_B_EN-55121689_M1_07.2023

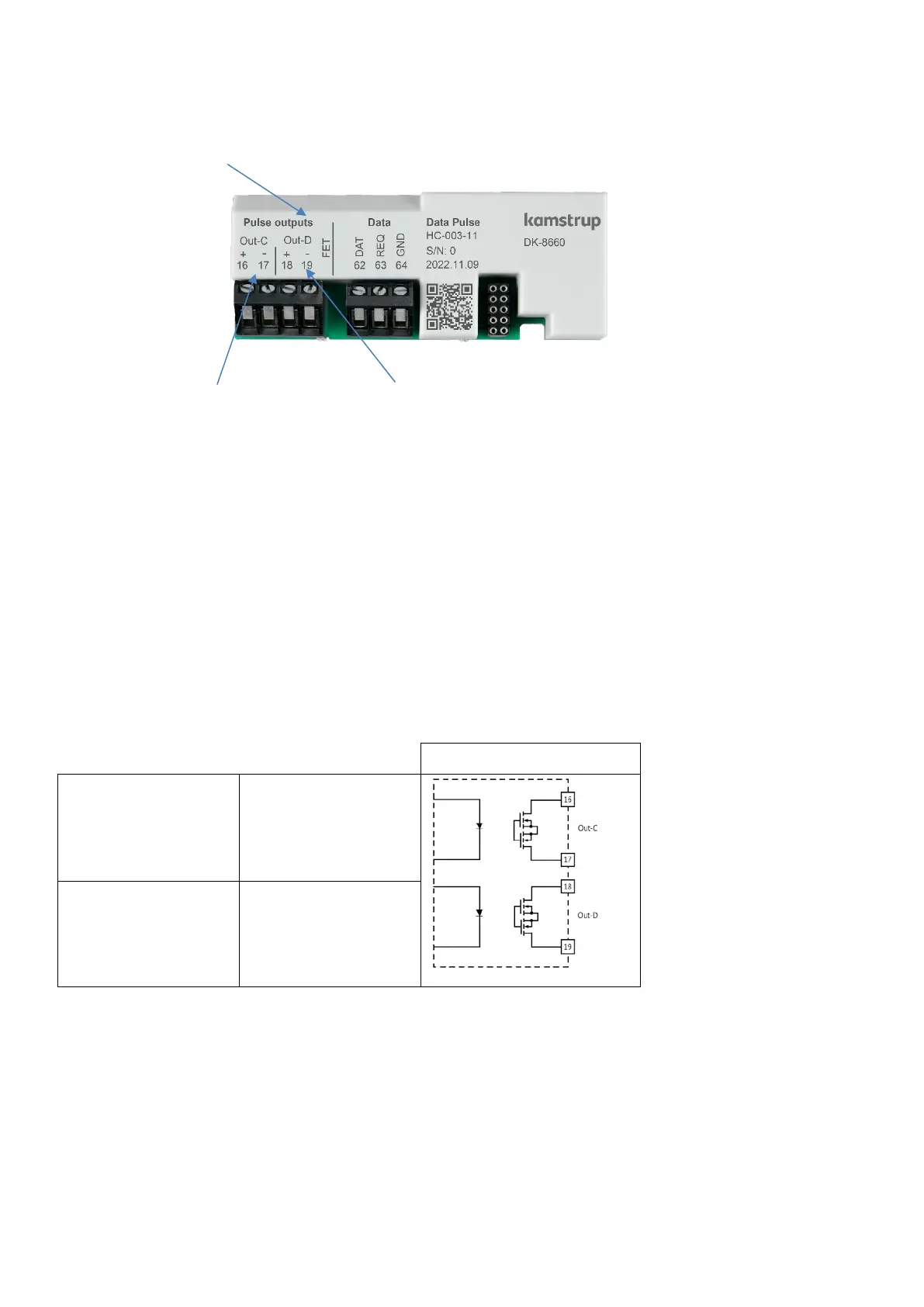

All modules with pulse outputs are clearly marked with this.
Terminals for Out- C and terminals for Out-D are marked as well.
See chapter 11.2 for more details about the available modules.
Technical data for Pulse outputs
Output type
Opto FET
External voltage
1…48 VDC/AC
Current
< 50 mA
On-Resistance
≤ 40
Ω
Isolation voltage
2 kV
Max. cable length
25 m
Please note the polarity when making the connection.
The pulse outputs are placed on the module with the following connection terminal numbering:
Opto FET
Pulse output C:
Terminals 16-17
Pulse output D:
Terminals 18-19
Note. For specifications on previous versions of pulse outputs, see "Electrical Data" in section 2.2.
