MULTICAL® 403
Kamstrup A/S · Technical description · FILE100000166_B_EN-55121689_M1_07.2023
59

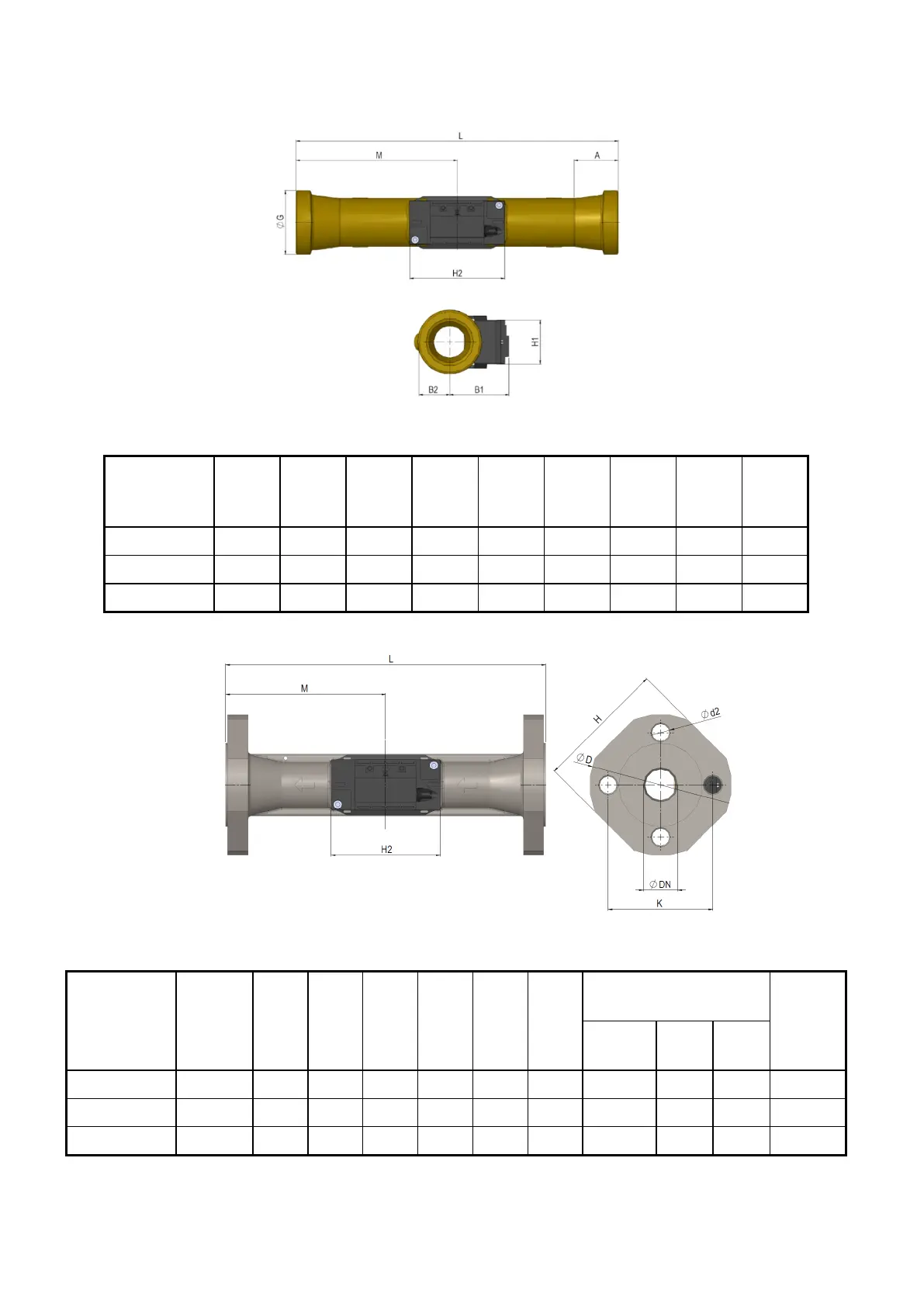

Figure 11: Flow sensor with G5/4 and G2 threaded connection
Thread EN ISO 228-1
Nominal flow
q
p
[m
3
/h]
Thread
G
L
M
H2
A
B1
B2
H1
Approx.
weight
[kg]
1
3,5 G5/4 260 130 88 16 51 20 41 2,0
6 G5/4 260 130 88 16 53 20 41 2,1
10 G2 300 150 88 40,2 55 29 41 3,0
1
Weight of calculator, flow sensor and 3 m sensor set excl. packing
Figure 12: Flow sensor with DN25, DN40 and DN50 flange connection
Flange facing type B, raised face in accordance with EN 1092-1, PN25
Nominal flow
Nom.
Bolts
Approx.
weight
q
p
[m
3
/h]
diameter
DN
L
M
H2
D
H
K
Number
Thread
d2
[kg]
1
6 DN25 260 130 88 115 106 85 4 M12 14 4,6
10 DN40 300 150 88 150 140 110 4 M16 18 7,5
15 DN50 270 155 88 165 145 125 4 M16 18 8,6
1
Weight of calculator, flow sensor and 3 m sensor set excl. packing
