MULTICAL® 403
Kamstrup A/S · Technical description · FILE100000166_B_EN-55121689_M1_07.2023

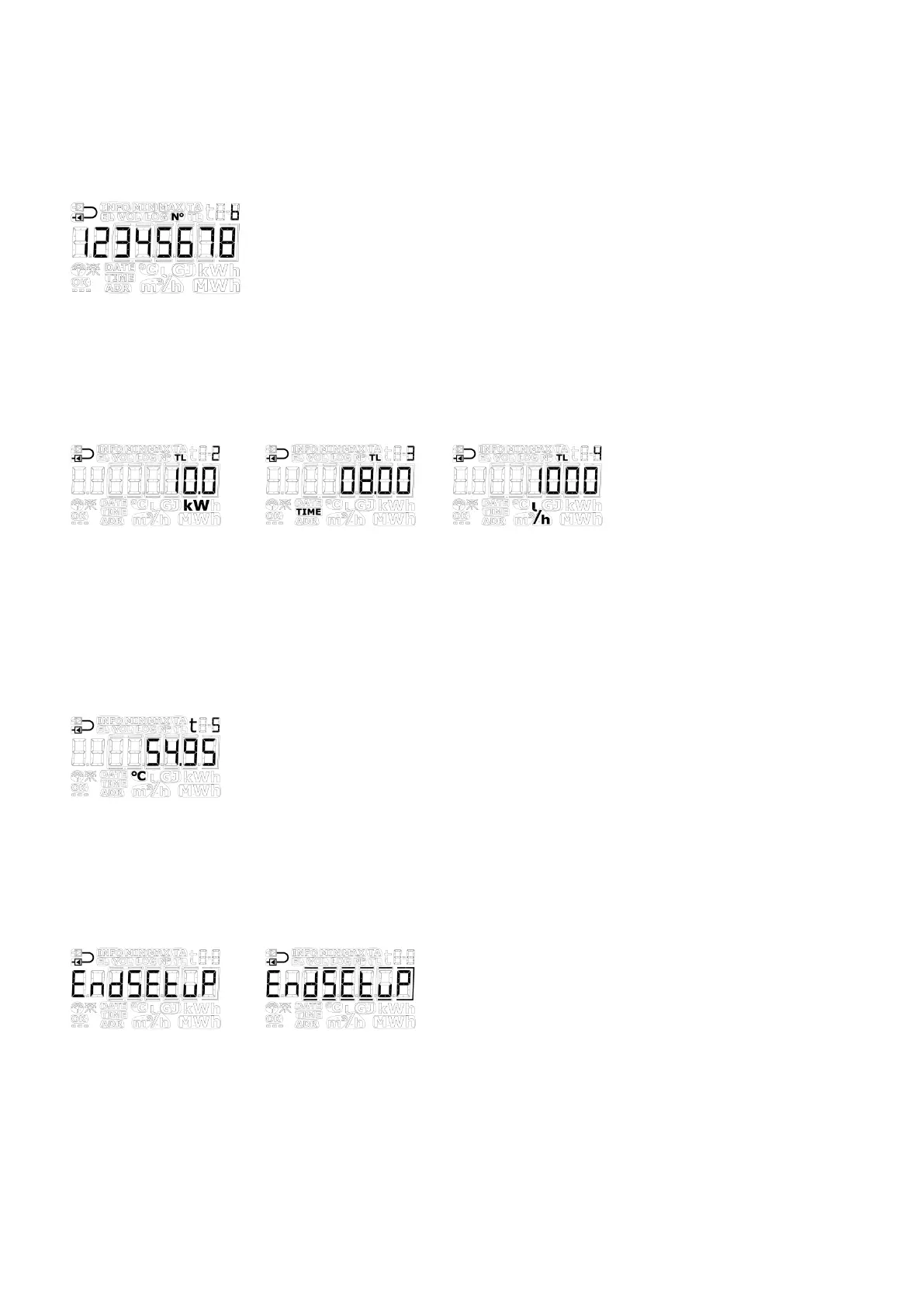

16. + 17 Meter numbers of Inputs A and B
Meter numbers of the water and/or electricity meter(s) connected to pulse inputs A and B can be adjusted in ”SETUP
loop”. The example is based on the connection of an electricity meter.
18. + 19 + 20 Tariff limits (TL2, TL3 and TL4)
The meter’s three tariff limits can be adjusted in ”SETUP loop”. The tariff limits are only active if a tariff type has
been selected during configuration of the meter, i.e. the EE-code differs from ”00”. The EE-code is shown in ”TECH
loop”, see paragraph 6.2. If a tariff type has been selected, the menu points reflect this by displaying the correct
tariff limit units. If no tariff type has been selected the menu points will be without units. Read more about tariff
types in paragraph 3.2.5.
Note:
It is not possible to have different types of tariff limits. The display readings
shown are just examples.
21. Presetting t5
The value of temperature value t5 can be adjusted in ”SETUP loop”. This value is used in connection with the
calculation of outlet energy registers, i.e. registers A1 (A-, heat at a discount) and A2 (A+, heat with an addition).
Read more about this calculation and function in paragraph 7.1.3.
22. ”EndSetup”
The menu point ”EndSetup” enables the technician to lock the access to ”SETUP loop” in transport state and thus
lock the meter against further configuration. In order to do so, the user must keep the secondary key activated for
five seconds. During the five seconds the frames around the reading “EndSetup” will be shown in the meter’s display.
This action can be undone by releasing the secondary key before the whole frame has become illuminated, i.e.
before the five seconds have passed.
”EndSetup” is an important function when the meter is in transport state, but when the meter is in operation
”EndSetup” is just one of three ways, in which you can exit ”SETUP loop”. See paragraph 6.3 above.
