System Description
The system is a Cone Beam Volumetric Tomography and Panoramic
X-ray device used for dental head and neck applications. The system
consists of a Scanner and Computer Workstation which is suitable
for an in-office environment.
This scanning device is an open design that allows Patients to sit
upright during a procedure. An electric powered seat is built into the
device for proper Patient positioning.

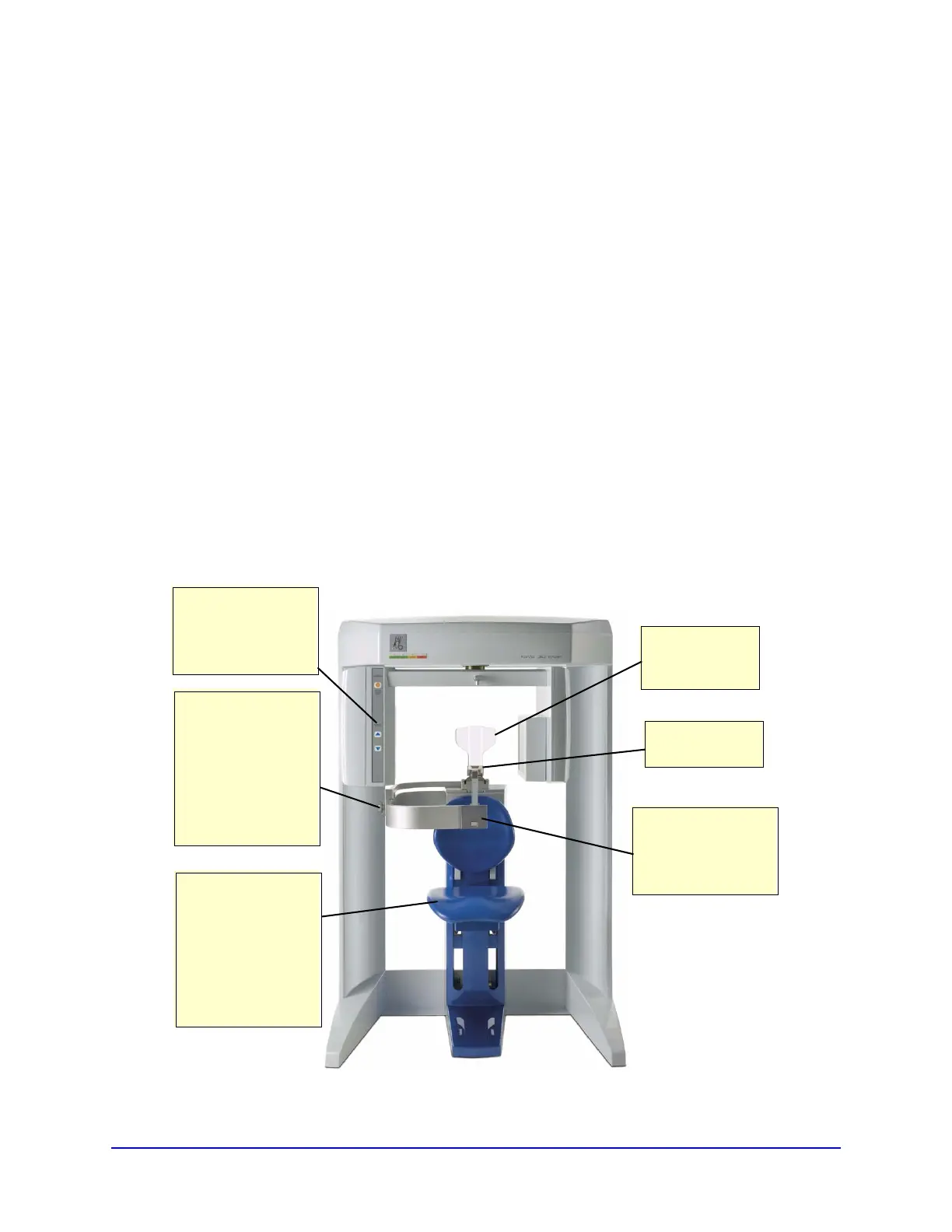

KaVo 3D eXa
®
Imaging System
HEAD
SUPPORT
BACKPLATE
CHIN
SUPPORT
GATE
(SWINGS OPEN,
MAGNETS LOCK
IN PLACE)
PATIENT
ALIGNMENT
PANEL (ADJUSTS
CHAIR UP/DOWN)
HEAD SUPPORT
BACK PLATE
KNOB
(SLIDES TO
ADJUST THE
POSITION OF THE
HEAD SUPPORT)
MOTORIZED
CHAIR
(MOVES
UP/DOWN VIA
BUTTONS ON
THE SYSTEM
CONTROL BOX)
