Reconstruction of Anatomy
7-9
NOTE: The Slice Thickness of each view is at the Voxel size
originally scanned. For example, if scanned at a 0.3 Voxel size, the
slice thickness is 0.3. If scanned at a Voxel size of 0.4, the slice
thickness is 0.4

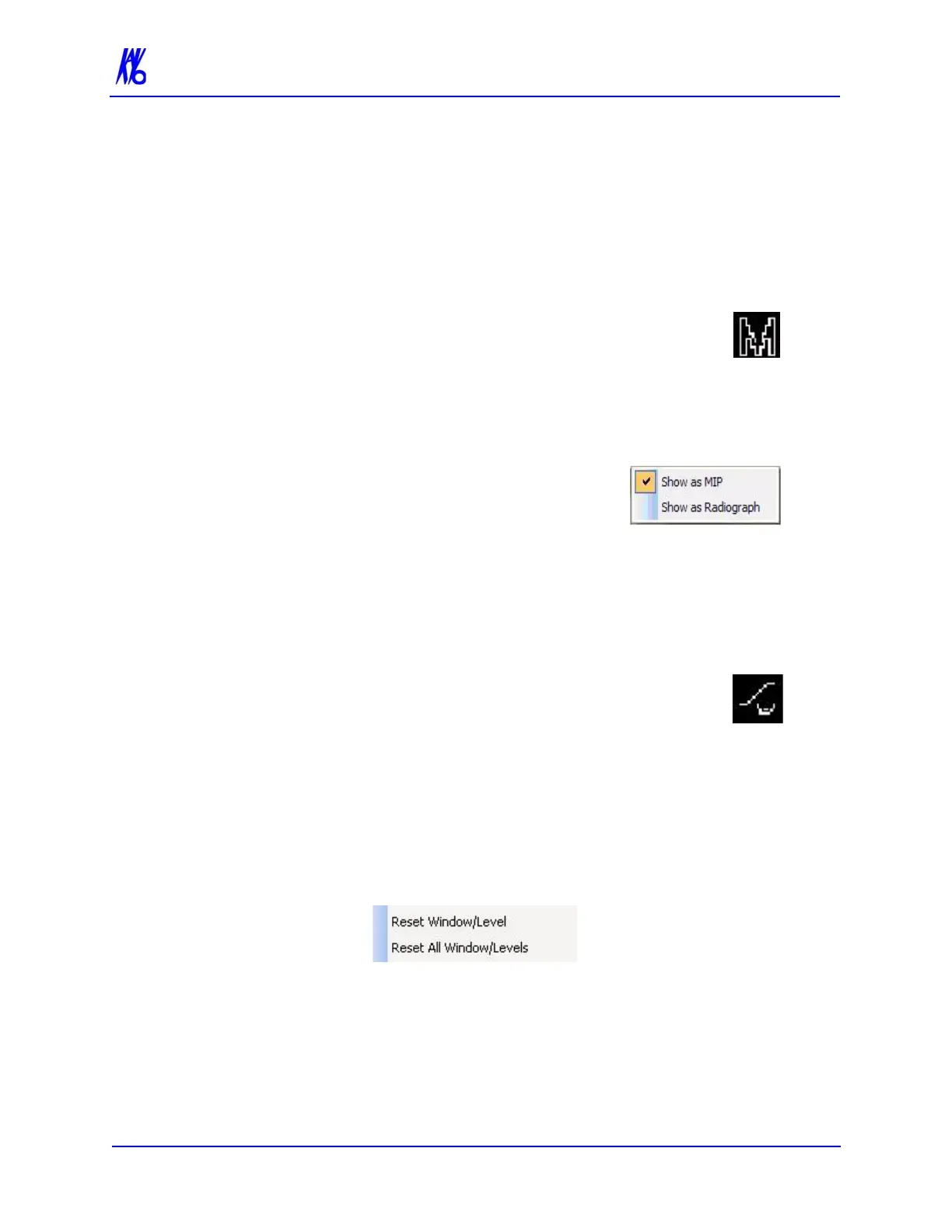

Selecting MIP or Radiograph Display
The system software enables displaying images as MIP or
Radiograph.
To select the type of image displayed:
1. Move cursor to the top right of any of the image views on the
preview screen. The cursor becomes an M.
2. Click mouse while cursor is an M and the
following popup window appears.
3. Click the menu item corresponding to the
desired image type. (The currently
selected image type is denoted with a
checkmark.)
Adjusting Brightness and Contrast
All views include a window level Brightness/Contrast
cursor tool. By default, this cursor is displayed. When
cursor appears as shown, click and drag up/down and left/
right to adjust brightness and contrast.
• Brightness - left and right.
• Contrast - up and down.
NOTE: If brightness and contrast are changed, they can be reset for
the specific window/level, or for all window/levels that were
affected, using the reset options on the pop up menu.
