Chapter
3
System Controls and
Indicators
Controls and Indicators are found on the following system units:
• Operator Control Box
• Patient Alignment Panel
• Patient Emergency Stop Control
• System Status Indicators

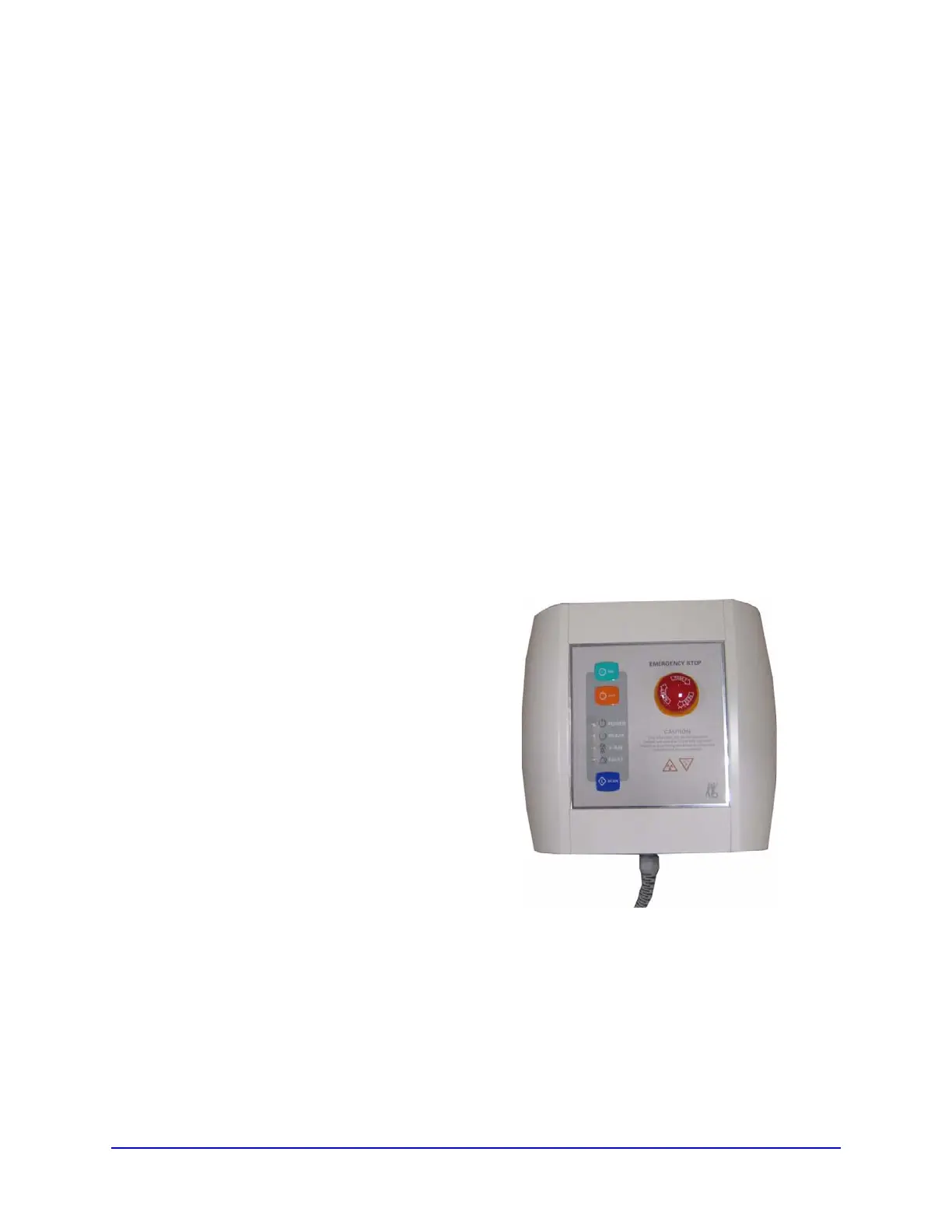

Operator Control Box
ON powers the Scanner and
the POWER indicator lights to
show that the device is ON.
OFF removes power from the
device and the POWER
indicators go OFF.
EMERGENCY STOP
immediately halts all X-ray
and scanning activities.
SCAN initiates Patient X-ray
scanning. (This allows the
Operator Control Box to be
mounted in a location different
from the Computer
Workstation.) When scanning
is occurring, the
X-RAY ON indicator is lit.
FAULT indicator lights when
a system error occurs (such as an
X-ray exposure problem).
