Reconstruction of Anatomy
7-5
Adjusting the Panoramic View
The Axial View is used to adjust the displayed image in the
Panoramic View.
To adjust the Panoramic View:
1. Select whether the Maxilla or Mandible Contour Line is used as
the Panoramic View adjustment reference by clicking on the
desired contour line in the Sagittal or Coronal View. The
selected Contour Line is shown as a solid line; the line which is
not currently selected is shown as a dotted line. The displayed
line in the Axial View matches the color of the selected Contour
Line in the Sagittal and Coronal Views.
2. Center the anterior point at midline.
3. Move the next two points up closer to the anterior point on each
side. Place them a few teeth away from anterior center.

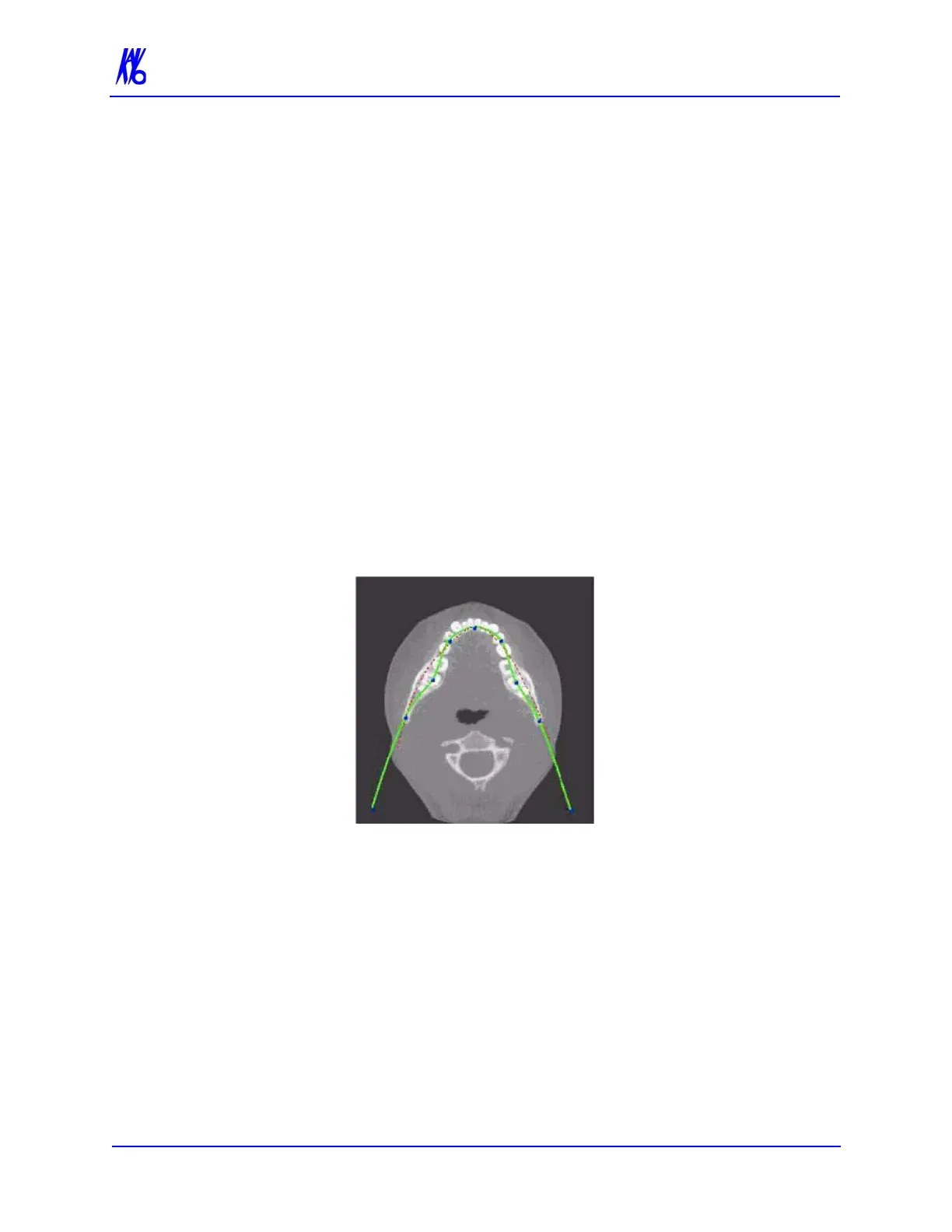

4. Then move the next two points closer to the molars. See the
example below.
All changes are reflected in the Panoramic View.
Contourline Setup
Contourlines are used to mark the Maxilla and Mandible in the
Sagittal and Coronal Views on the preview screen.
• Maxilla is a red line
• Mandible is a green line.
