SXR-130-15-0.5
70 kVp
130 kVp
90 kVp
100 kVp

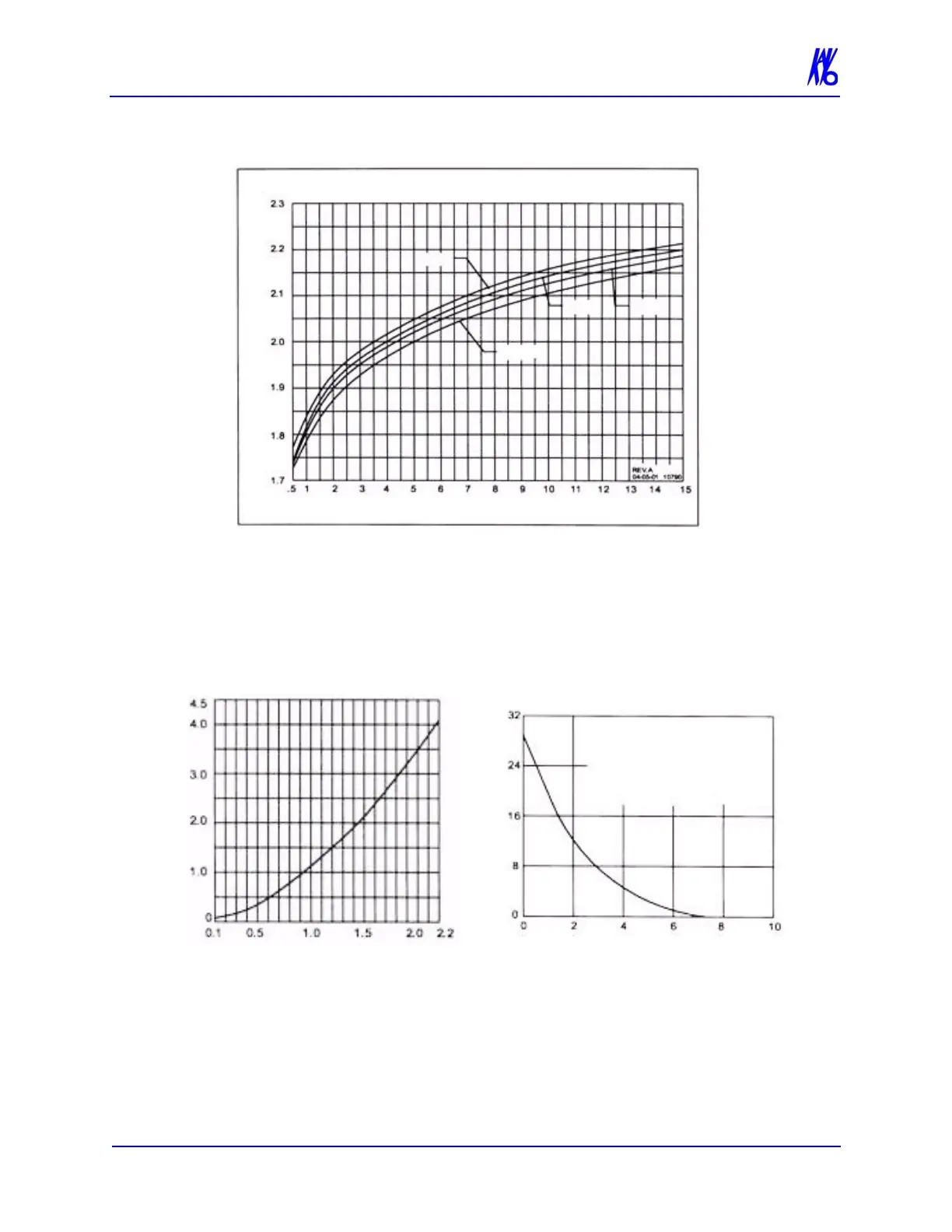

EMISSION CHARACTERISTICS
(Full Wave Rectified, Single Phase, Bi-polar)
FILAMENT CURRENT (AMP)
TUBE CURRENT (mA)
FILAMENT VOLT/AMPS CHARACTERISTICS:
60 Hz AC & DC
VOLTS
AMPS
ANODE COOLING CURVE
ANODE HEAT STORAGE CAPACITY
(HU X 1000)
TIME IN MINUTES
H.U. (Heat Units) = kVp (Kilovolts Peak)
Joules = .707 x H.U.
xmA (eff) x Time (sec.)
ANODE HEAT STORAGE CAP
30000 H.U.
MAX. ANODE COOLING RATE
165 H.U. PER SECOND *
* OIL SUBMERGED ONLY
