Parameter sets

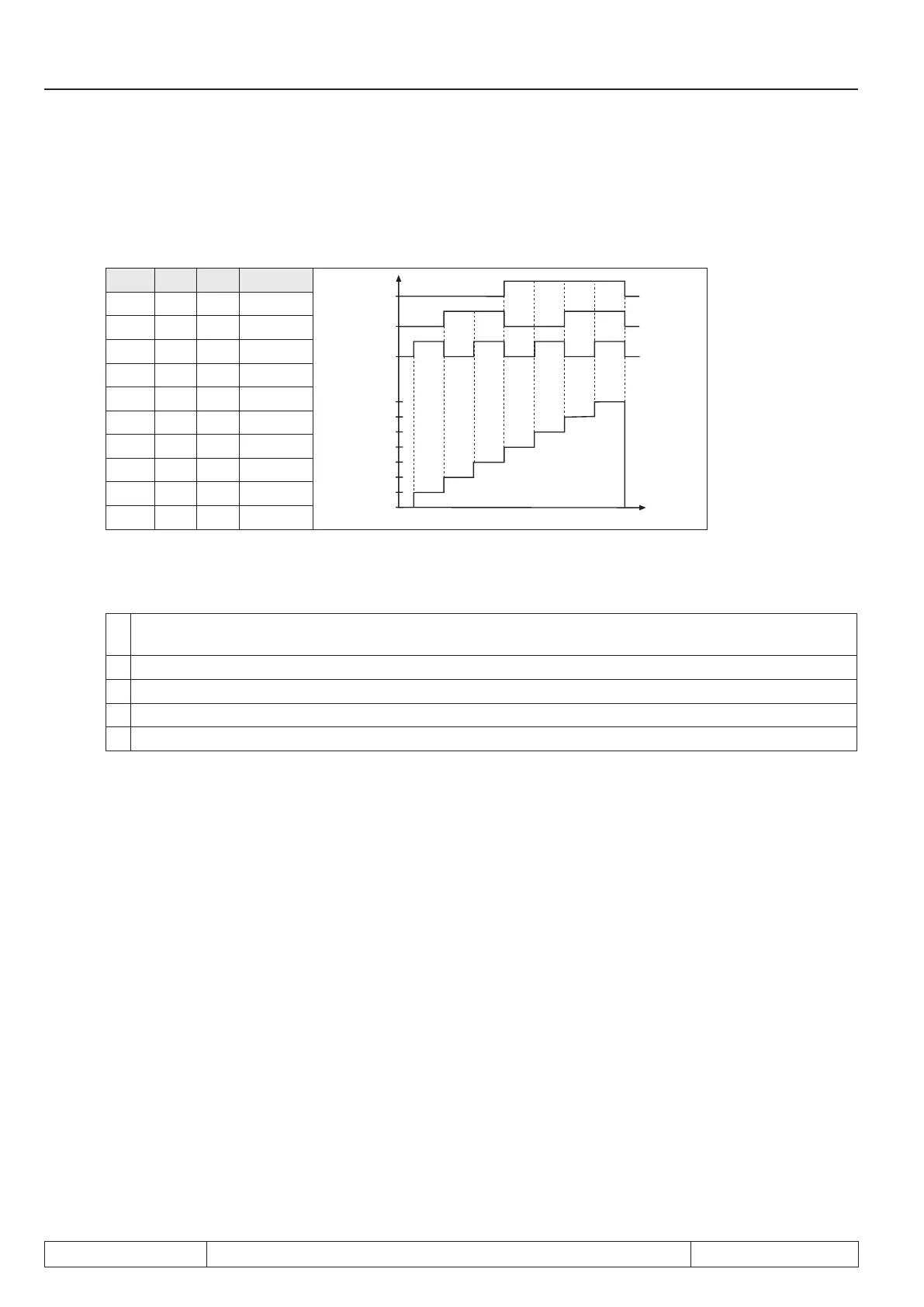

Example 1: With 3 inputs (F, I1 and I4) set 0...7 shall be selected
1.) Adjust parameter Fr. 07 to value „148“
2.) Adjust Fr.02 to value „2“ (set selection binary-coded via terminal strip)
I4 I1 F Input
F
I1
I4
t
Set 0
Set 1
Set 2
Set 3
Set 4
Set 5
Set 6
Set 7
2² 2
1
2
0
set
0 0 0 0
0 0 1 1
0 2 0 2
0 2 1 3
4 0 0 4
4 0 1 5
4 2 0 6
4 2 1 7
Input-coded set selection
With input-coded set selection
- maximally 7 of the internal or external inputs may be programmed to set selection (0...7 sets) to avoid set
selection errors.
- the lowest of the selected inputs has priority at Fr.02 = „3“
(ST>RST>R>F>I1>I2>I3>I4>IA>IB>IC>ID)
- the highest of the selected inputs has priority at Fr.02 = „4“
(ID>IC>IB>IA>I4>I3>I2>I1>R>F>RST>ST)
Example 1: With 5 inputs (I1, I2, I4, IB and ID) set 0...5 shall be selected.
1.) Adjust parameter Fr. 07 to value „2736“
2.) Adjust Fr.02 to value „3“ (set selection input-coded via terminal strip)
