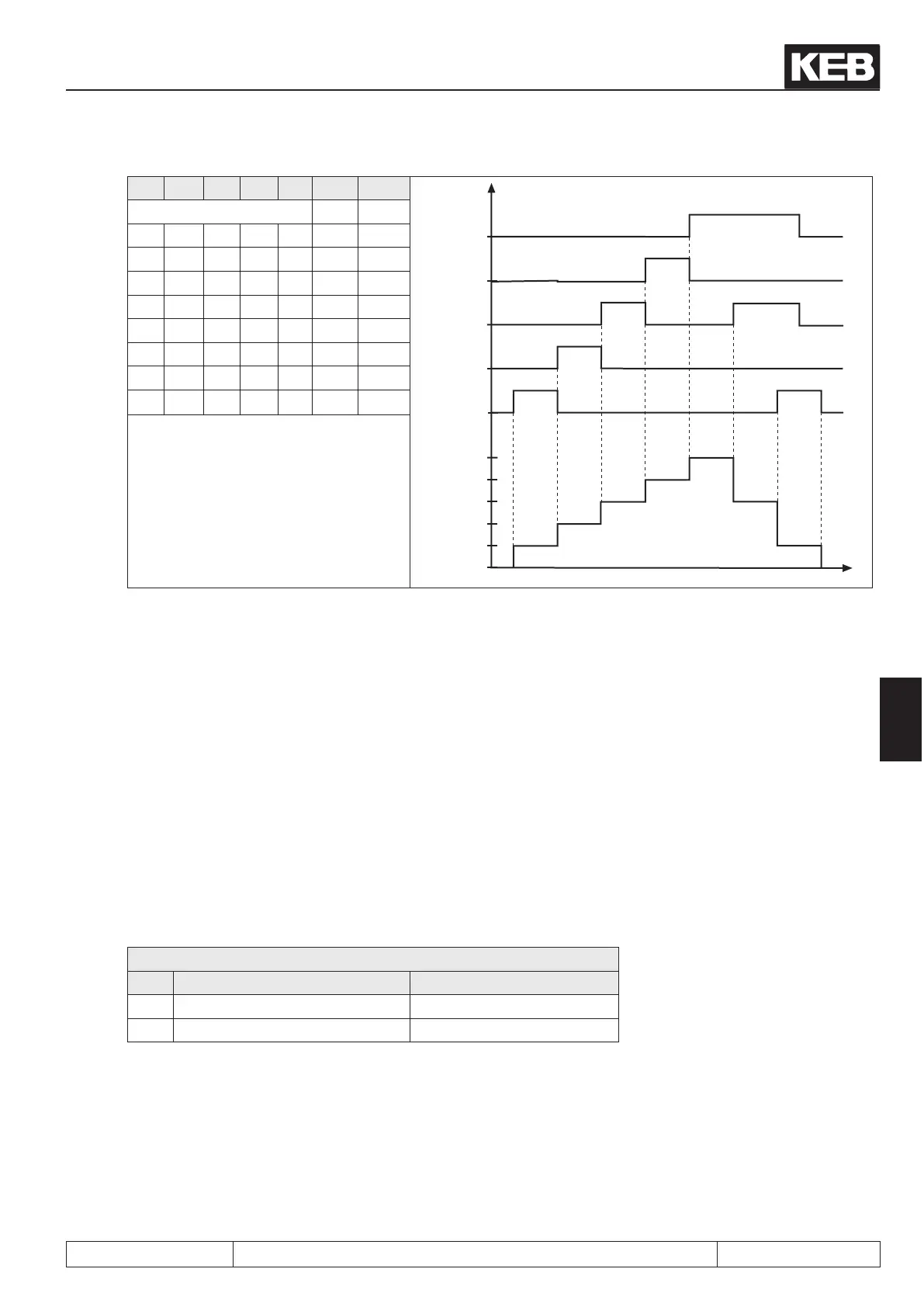

Parameter sets
© KEB, 2012-10 COMBIVERT F5-A, -E, -H Page 7.14 - 11
7
Id IB I4 I2 I1 set set
0
1
2
3
4
5
I1
I2
I4
IB
ID
set
set
set
set
set
set
Fr.02 = 3 4
0 0 0 0 0 0 0
0 0 0 0 1 1 1
0 0 0 2 0 2 2
0 0 3 0 0 3 3
0 4 0 0 0 4 4
5 0 0 0 0 5 5
5 0 3 0 0 3 5
5 0 3 0 1 1 5
Reset set input selection (fr.11)
The parameter Fr.11 denes an input, with which one can switch independently of the current parameter set in
to parameter set 0. This function is only active at Fr.02 = 0...4.
- with static input assignment the inverter remains in set 0 as long as the input is set.
- with edge-triggered inputs set 0 is always activated with the 1st edge. With the 2 nd edge the set activa-
ted by the other inputs is selected again.
Set change mode modulation on (Fr.12)
Parameter Fr.12 adjusts the behavior at set change. A motor set change without parameter set changes is only
possible when the modulation is switched off.
If the set change is disabled and the modulation is switched on, then a planned set change releases the errror
‘set selection error‘ (E.SET, A.SET). The set change is done, as soon as the modulation is switched off.
Fr.12: Set change mode mod. on
Bit Meaning Value
0 Set change mode 0: enable / 1: inhibited
1 Mode motor set change 0: enable / 1: inhibited
Bit 1 has no function at F5-S, since only one motor set is available here.
