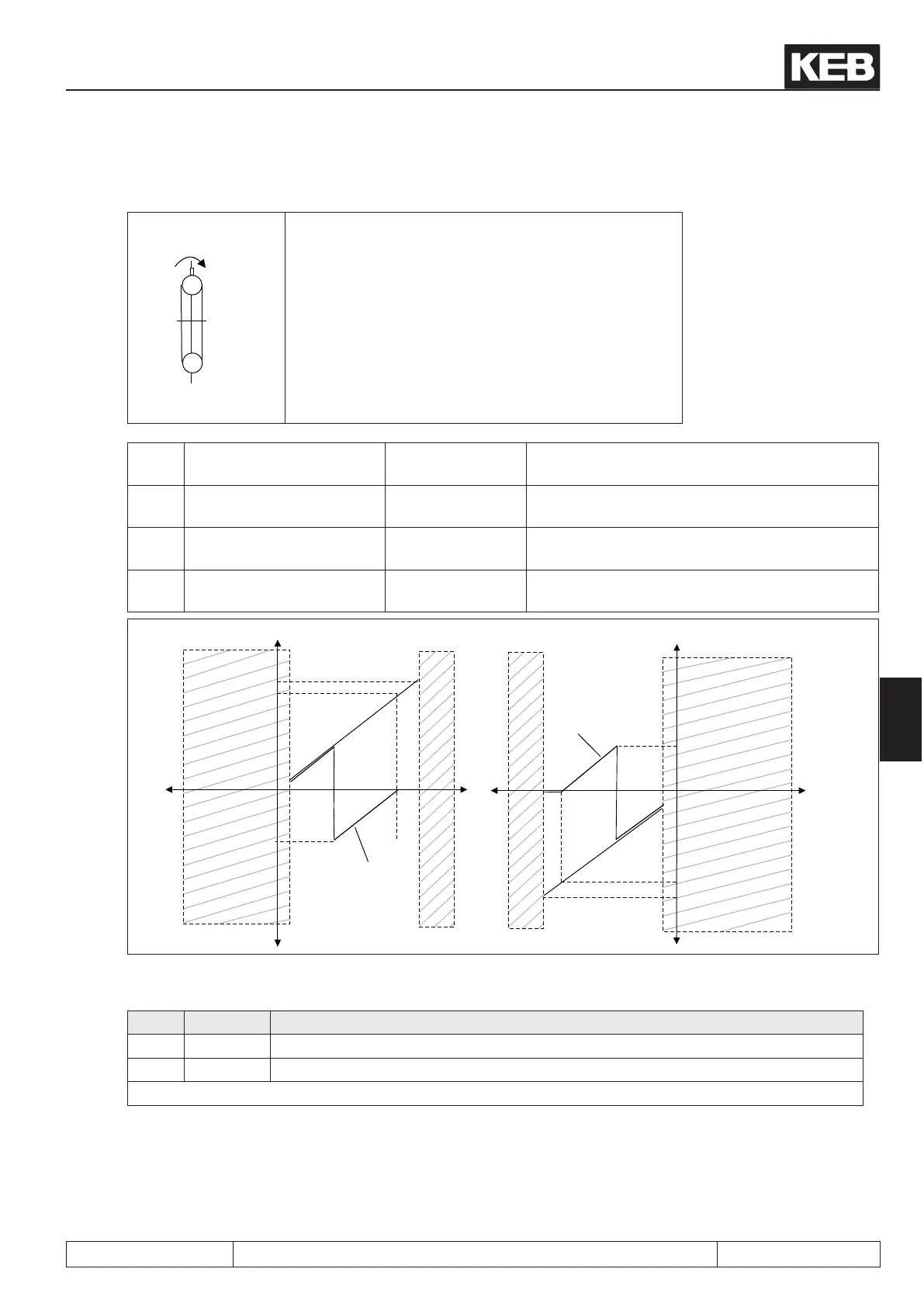

Angle deviation standardization:
0° / 360° / -360°
0 / rG.15 / -rG.15
-90°
-rG.15/ 4
90°
rG.15/ 4
+ / 180°
+ / -rG.15/ 2
The angle deviation can be preset optionally via rG.08…
rG.11, but it is internal limited to +-slave difference (rG.15).
Additionally a renormalization takes place, thus the an-
gle deviation setpoint ranges between –rG.15/2
…0….+rG.15/2.
rG.16
Reg. master / slave diffe-
rence
-2^31…2^31-1
inc.
Difference between the main pulses of master
and slave
rG.17 Reg. Register time master
0…100.000 ms
(0.125 res.)
rG.18 Reg. Register time slave
0…100.000 ms
(0.125 res.)
rG.19
Reg. master / slave
Period difference
0…100.000 ms
(0.125 res.)
Time difference between the period of master
and slave
-rG.15/ 2
rG.15/ 2
rG.15/ 2
-rG.15
rG.15
rG.10
rG.10
rG.08
rG.08
rG.09
rG.09
rG.11
rG.11
Reference
Reference
off off off off
Angle deviation setpoint [inc] Angle deviation setpoint [inc]
n_master
[rpm
]
A possible parameter list for picture 2:
Addr. Value Notice
PS.0 1025 Synchron mode + synchronisation at the start via op.28
rG.00 5 Register function activated + angle adjustment on
further on next side
