Timer interval (TIMER) — For the STEP function, the timer specifies the time delay
between scanned channels. For the SCAN function, the interval specifies the time delay
between scans. The timer starts when the scan is started. For SCAN, the next scan will not
start until the timer interval expires.
NOTE The Model 2750 can also be configured to run an advanced scan. For an
advanced scan, each channel can have its own unique setup (i.e., function,
range, etc.). Advanced scanning is covered in Section 7.

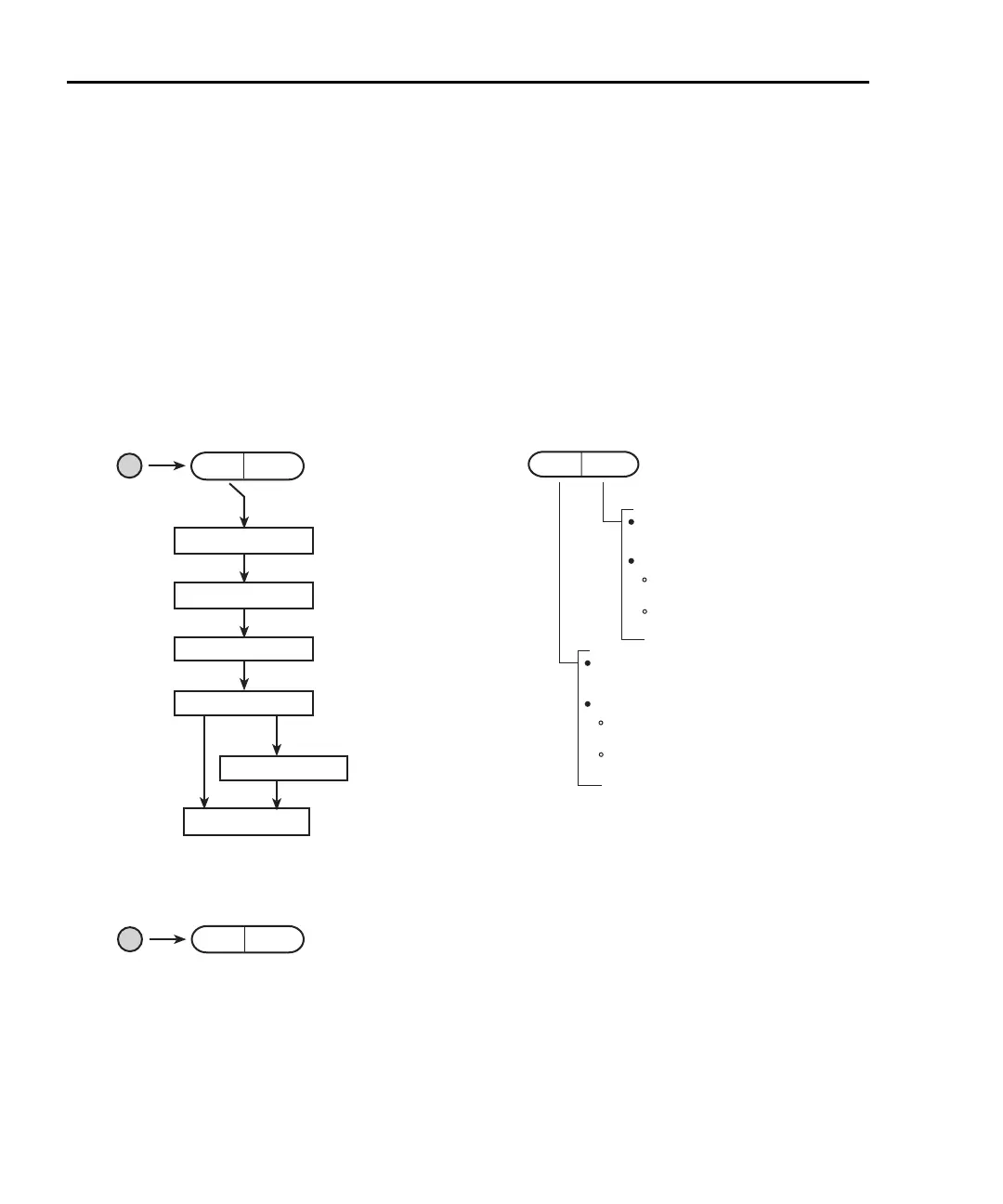

Figure 1-8
Simple scan operation
MIN CHAN: XXX
INT: SIMPLE
Display SIMPLE option
and press ENTER
Specify minimum channel
(XXX) and press ENTER
SHIFT
SCANSTEP
CONFIG
Press SHIFT
Press CONFIG (STEP)
MAX CHAN: YYY
Specify maximum channel
(YYY) and press ENTER
TIMER? NO/YES
Display NO or YES and
press ENTER
YESNO
xxH:xxM:xx.xxxS
Set timer interval in
hr:min:sec format and
press ENTER
RDG CT:xxxxxx
Specify reading count and press
ENTER
SCANSTEP
Press STEP or SCAN to start
scan
Timer interval specifies time
between scans.
Reading count:
Specifies number of scans
to be performed.
Specifies number of readings
to store in buffer.
Timer interval specifies time between
scanned channels.
Reading count:
Specifies number of channels to be
scanned.
Specifies number of readings to store
in buffer.
Step 1. Configure simple scan: Step 2. Run simple scan:
SHIFT
SCANSTEP
HALT
Press SHIFT
Press HALT (SCAN)
Step 3. Disable scan mode:
