2) Loosen the 2 × 8 self-tapping screws (C53) and remove the window panel (C7) (Fig. 37).
3) Reassemble by reversing steps 1 to 2 above.
2.3.12
R
e
p
l
a
cing the
T
o
p Case G
r
ille
(
H2
)
1) With the heater case closed, remove the grille (H2) from the top case (H1) by pressing its back side
toward the inside (Fig. 38).
Reassemble by reversing step 1 above. 2)
H2
(
2)
(
1)
C7
C
5
3

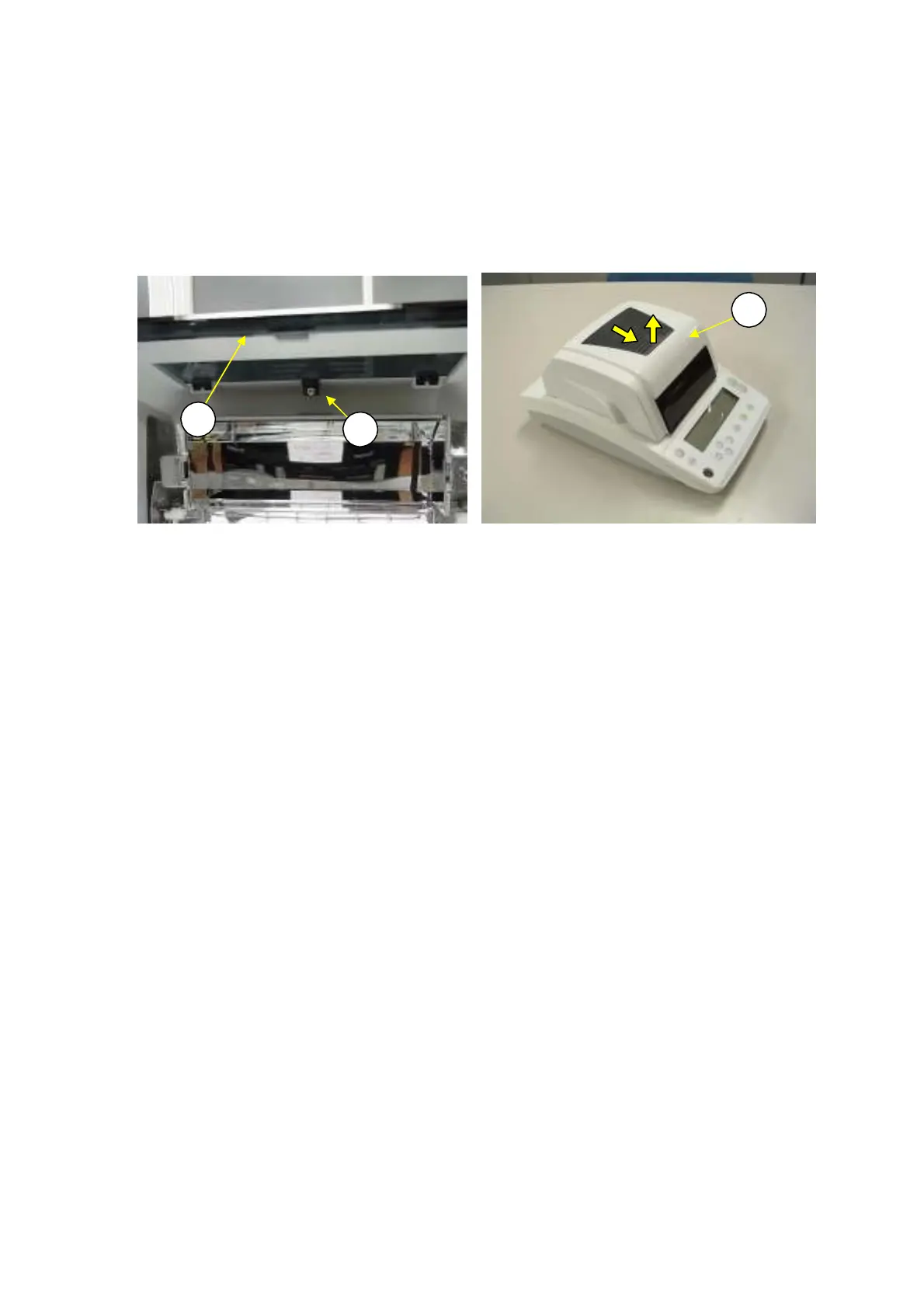

Fig. 37 Fig. 38
28 DBS-SH-e-1210
