KERN DBS User Manual

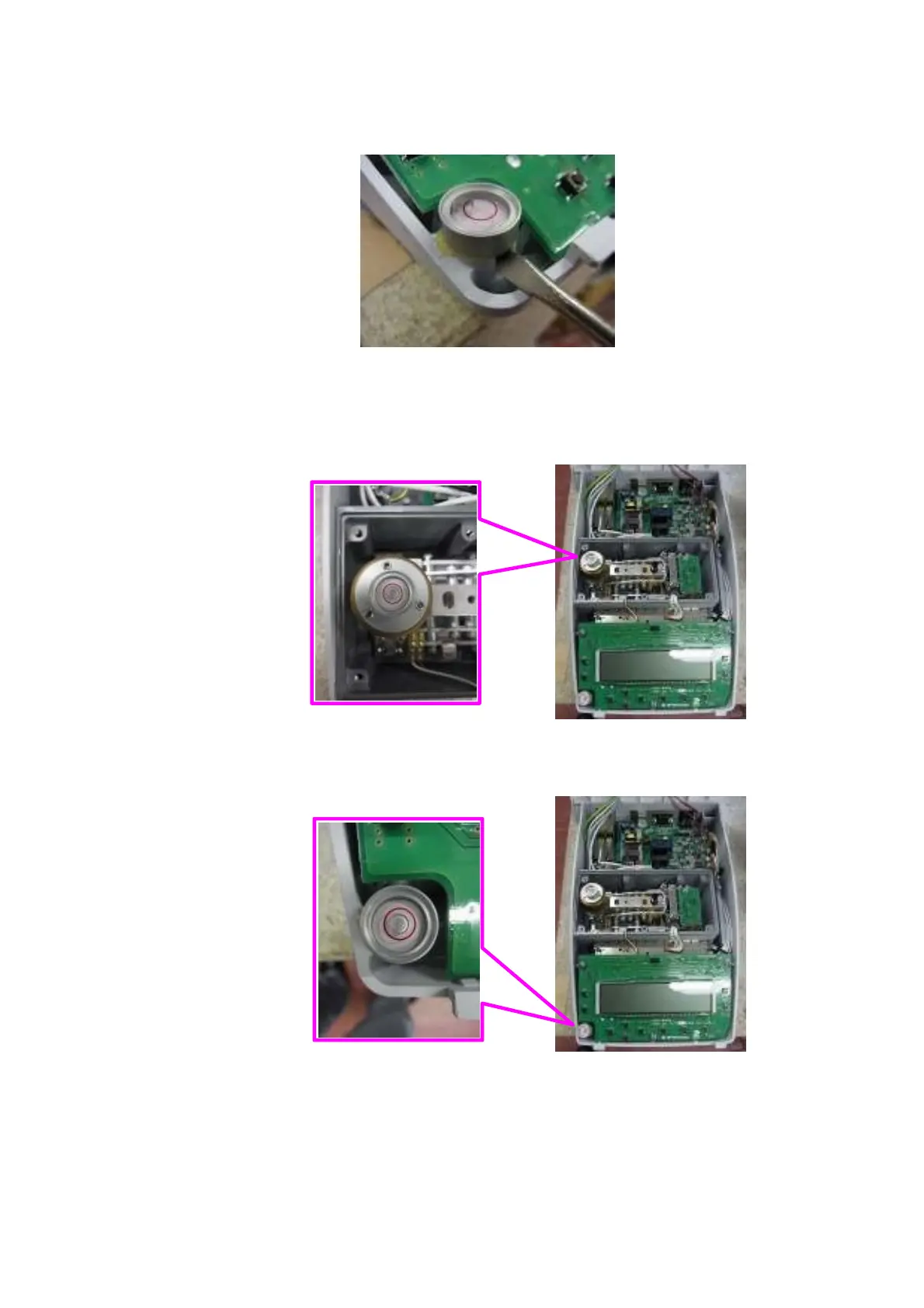

1. Insert flat-blade screw driver to the slit under the Level as Fig.8 and twist/remove to the Level.
Then remove adhesive from the Base.
Fig.8
2. Set level gauge jig on the Unibloc’s top face of fixing end as Fig.9
Adjust the level adjuster until the bubble of the level gauge jig centered to the red circle.
Fig.9
3. Apply mix Araldite 2012 on the under side of level gauge and base. Place the level gauge on
the base. Bubbles must be smaller than the size (around 3/4) for the red circle.
Fig.10
4. Press the level gauge, center the bubbles on the level gauge by using finger only.
Bubble must be on the center of the red circle.
Drying time for level gauge to the base is 15~20 mins. In case of araldite rapid
2.3.20 Replacing the level Gauge Assy (B7)
DBS-SH-e-1210 37

KERN DBS Specifications

General

Calibration	External
Power supply	230 V / 50 Hz
Type	Moisture analyzer
Auto Power Off	Yes
Tare Function	Yes
Model	DBS
Readability	0.001 g
Weighing range [Max]	50 g/120 g/200 g
Sample temperature	Up to 200°C
Display	LCD
Weighing plate size	90 mm
Permissible ambient temperature	10 °C / 40 °C
Maximum Capacity	220 g
Platform Size	90 mm
Interface	RS-232
