114 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

8 Display Settings

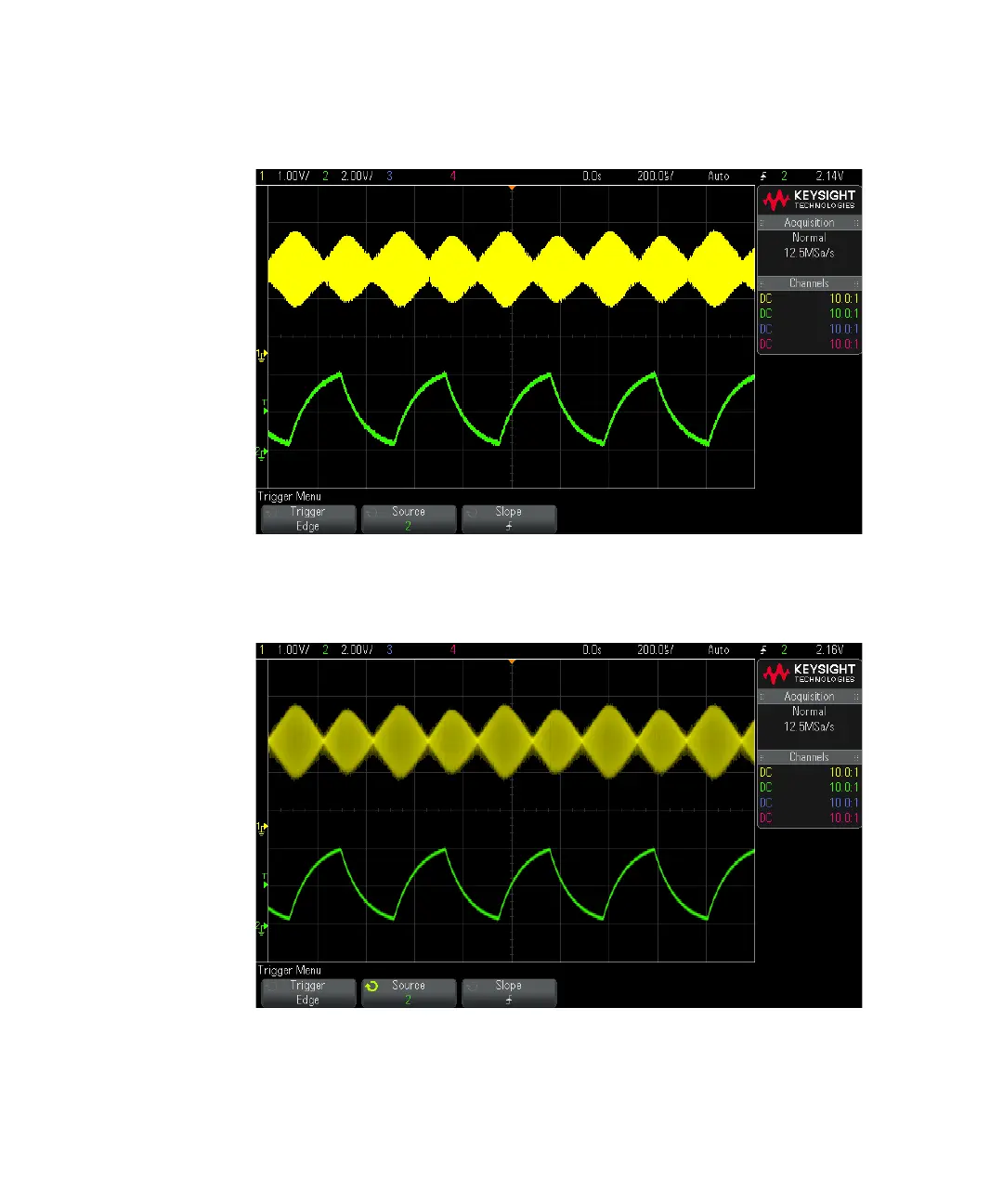

Figure 13 Amplitude Modulation Shown at 100% Intensity

Figure 14 Amplitude Modulation Shown at 40% Intensity
