312 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide
23 CAN/LIN Triggering and Serial Decode
• ID (Frame ID) — The oscilloscope triggers when a frame with an ID equal to
the selected value is detected. Use the Entry knob to select the value for the
Frame ID.
• ID & Data (Frame ID and Data) — The oscilloscope triggers when a frame with
an ID and data equal to the selected values is detected. When triggering on
a frame ID and data:
• To select the frame ID value, press the Frame ID softkey, and use the Entry
knob.
Note that you can enter a "don't care" value for the frame ID and trigger
on data values only.

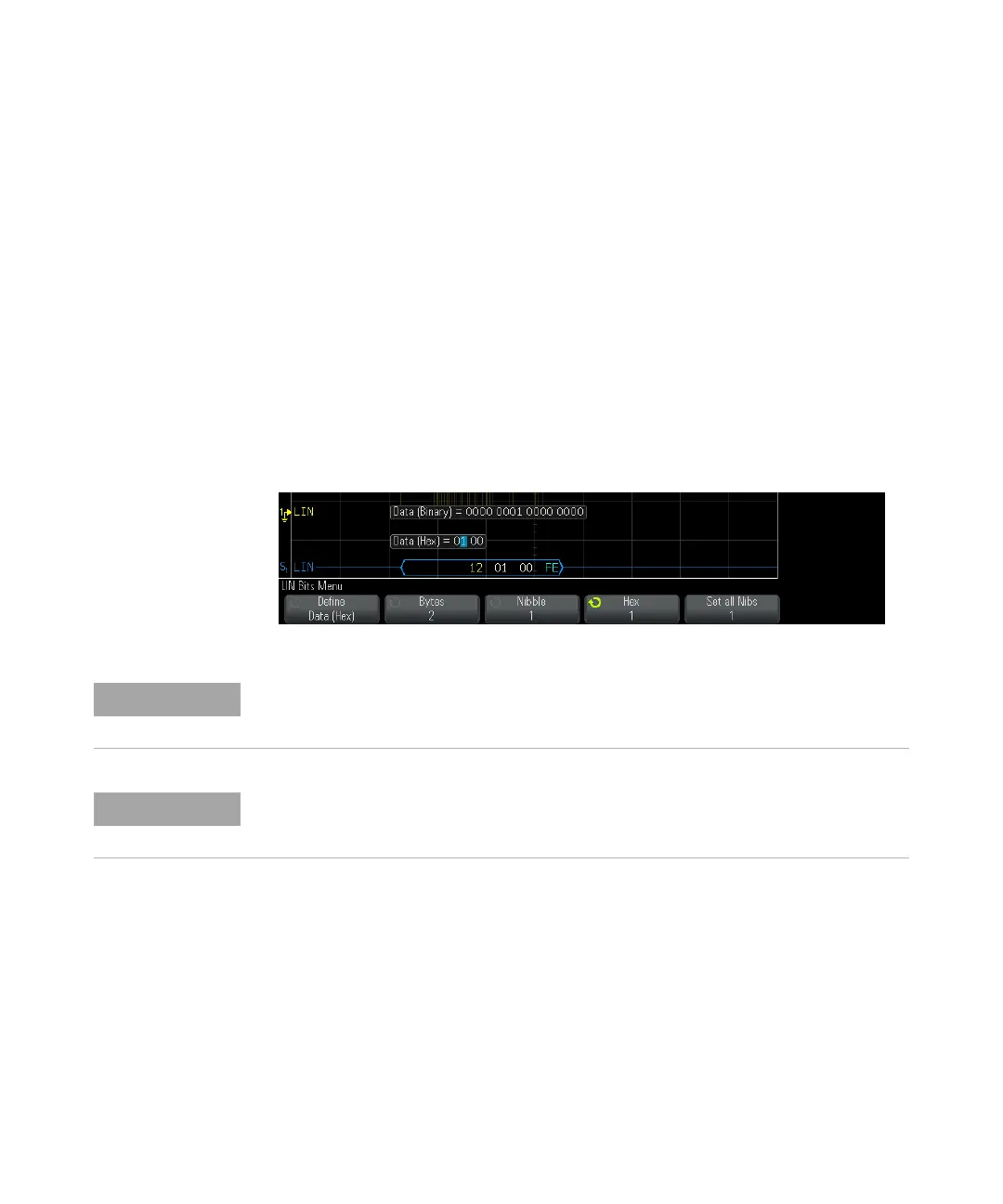

• To set up the number of data bytes and enter their values (in hexadecimal
or binary), press the Bits softkey to open the LIN Bits Menu.
LIN Serial Decode
To set up the oscilloscope to capture LIN signals, see “Setup for LIN Signals" on
page 309.
For details about using the LIN Bits Menu softkeys, press and hold the softkey in question to
display the built-in help.
For LIN decode information see “LIN Serial Decode" on page 312.
