50 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

2 Horizontal Controls

The Horizontal Menu lets you select the time mode (Normal, XY, or Roll), enable

Zoom, set the time base fine control (vernier), and specify the time reference.

The current sample rate is displayed above the Fine and Time Ref softkeys.

To adjust the horizontal (time/div) scale

1 Turn the large horizontal scale (sweep speed) knob marked to

change the horizontal time/div setting.

Notice how the time/div information in the status line changes.

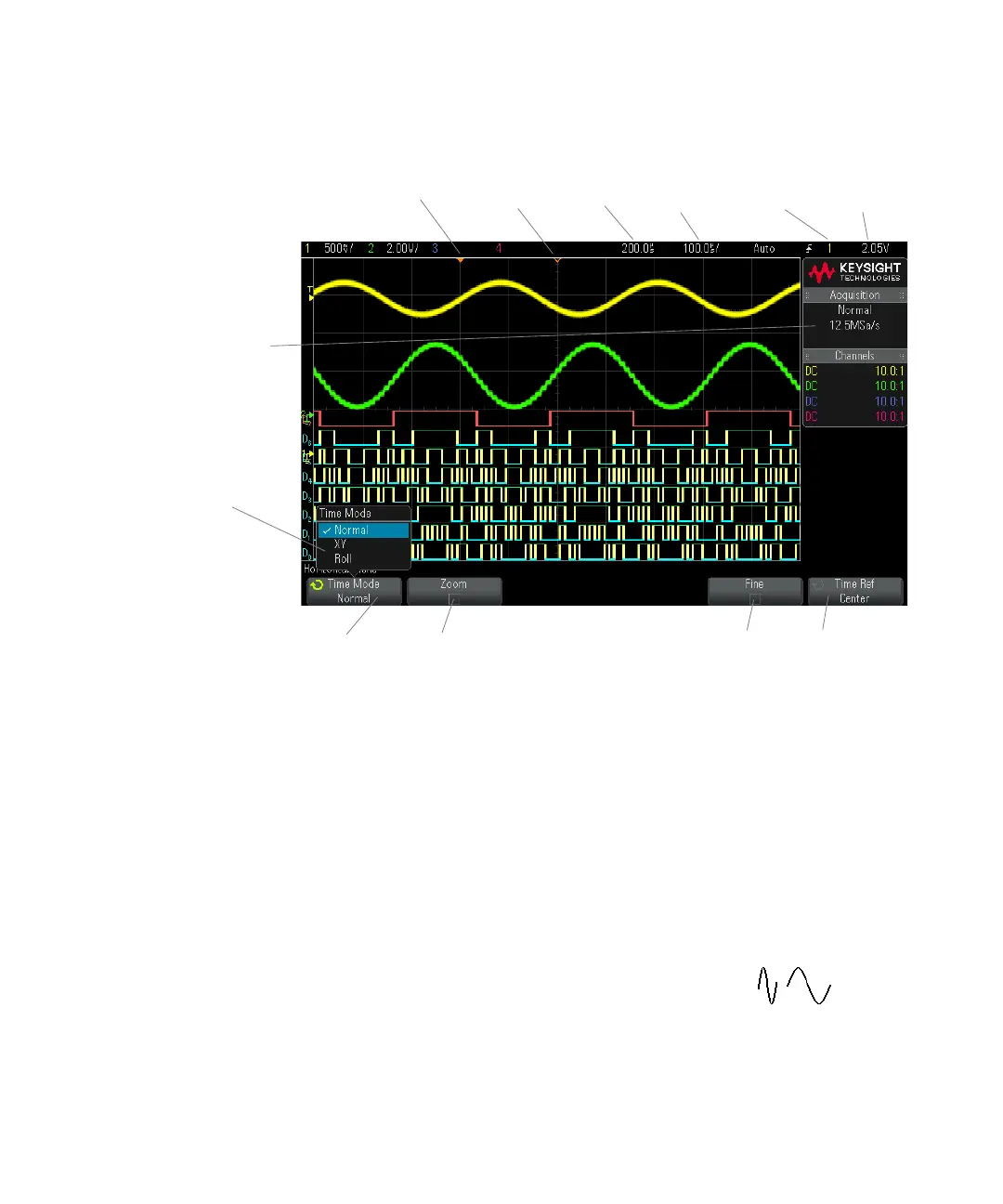

Figure 2 Horizontal Menu

Trigger

point

Sample rate

Time

reference

Delay

time

Time/

div

Trigger

source

Trigger level

or threshold

XY or Roll

mode

Normal

time mode

Zoomed

time base

Fine

control

Time

reference
