Web Interface 21

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 269

Browser Web Control

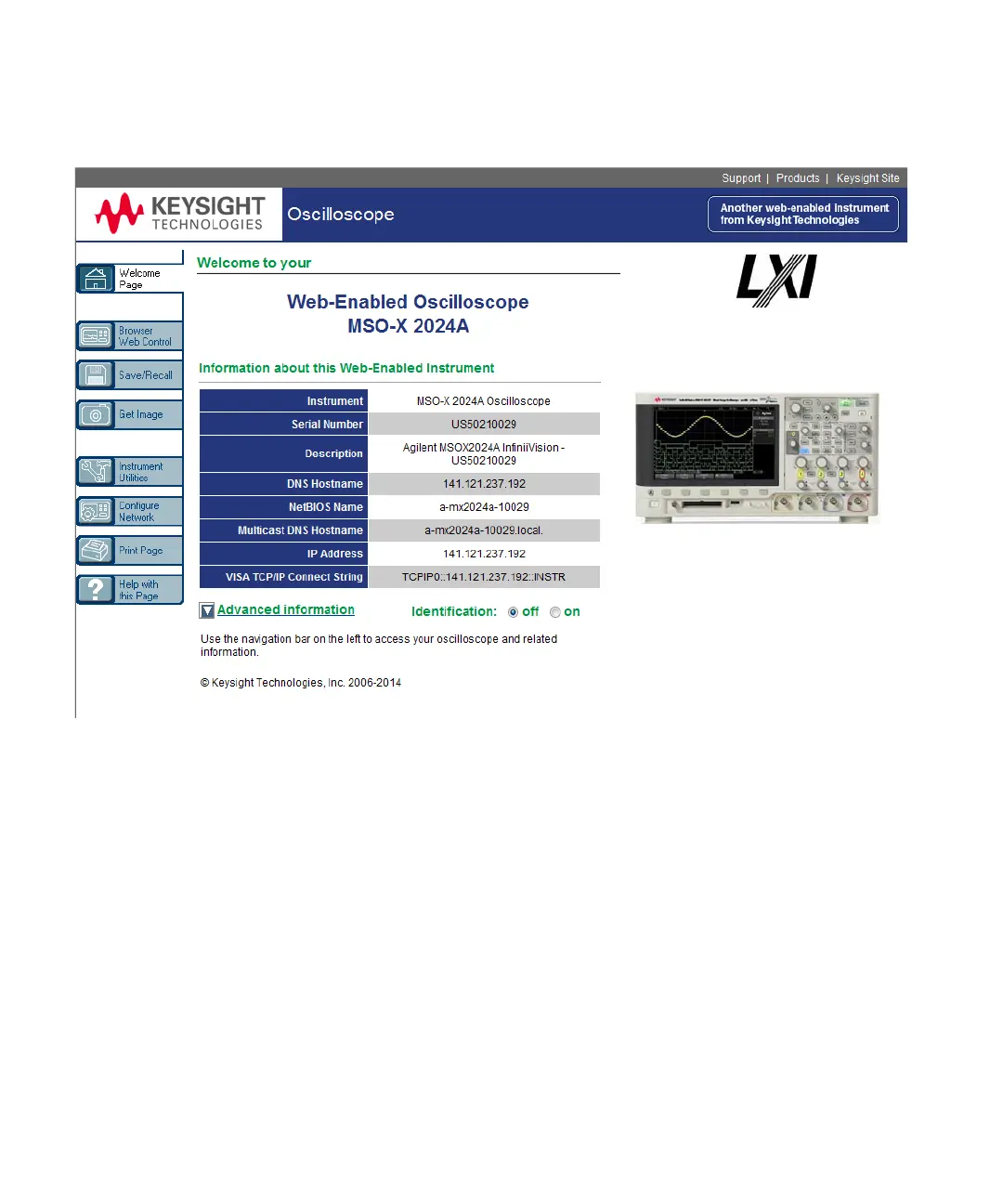

The web interface's Browser Web Control page gives you access to:

• The Real Scope Remote Front Panel (see “Real Scope Remote Front Panel" on

page 270).

• The Simple Remote Front Panel (see “Simple Remote Front Panel" on

page 271).

• The Browser-Based Remote Front Panel (see “Browser-Based Remote Front

Panel" on page 272).

• The SCPI Command window applet for Remote Programming (see “Remote

Programming via the Web Interface" on page 273).
