Measurements 14

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 189

Preshoot

Preshoot is distortion that precedes a major edge transition expressed as a

percentage of Amplitude. The X cursors show which edge is being measured (edge

closest to the trigger reference point).

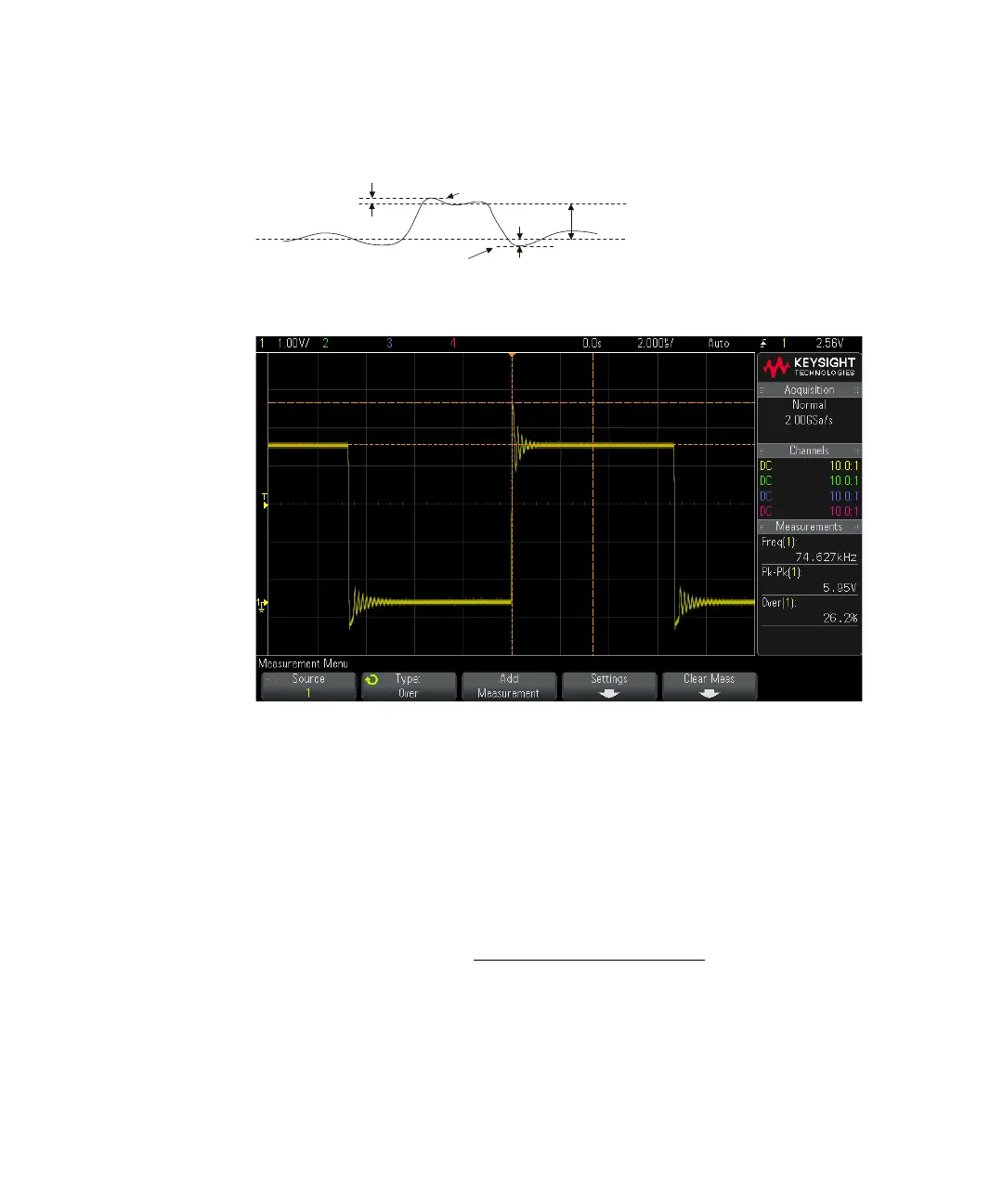

Figure 34 Automatic Overshoot measurement

Overshoot

local Maximum

local Minimum

Base

Top

Overshoot

Rising edge preshοot =

local Maximum − D Top

Amplitude

× 100
