Measurements 14

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 197

Phase

Phase is the calculated phase shift from source 1 to source 2, expressed in

degrees. Negative phase shift values indicate that the rising edge of source 1

occurred after the rising edge of source 2.

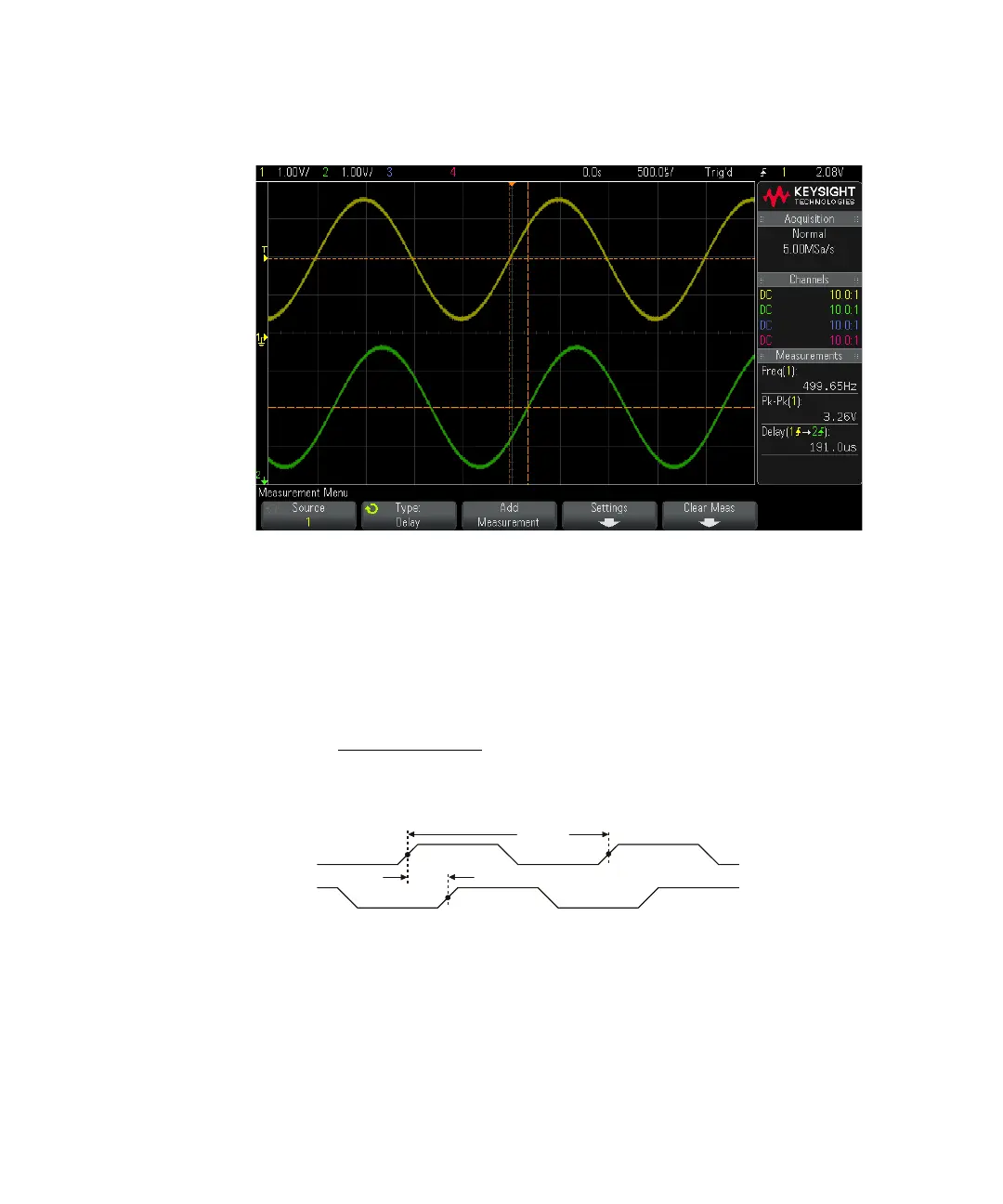

1 Press the [Meas] key to display the Measurement Menu.

2 Press the Source softkey; then turn the Entry knob to select the first analog

channel source.

3 Press the Type: softkey; then, turn the Entry knob to select Delay.

Phase =

Delay

Source 1 Period

× 360

Source 2

Source 1

Delay

Period
