Math Waveforms 4

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 75

See Also • “Units for Math Waveforms" on page 73

Multiply or Divide

When you select the multiply or divide math function, the Source 1 and Source 2

values are multiplied or divided point by point, and the result is displayed.

The divide by zero case places holes (that is, zero values) in the output waveform.

Multiply is useful for seeing power relationships when one of the channels is

proportional to the current.

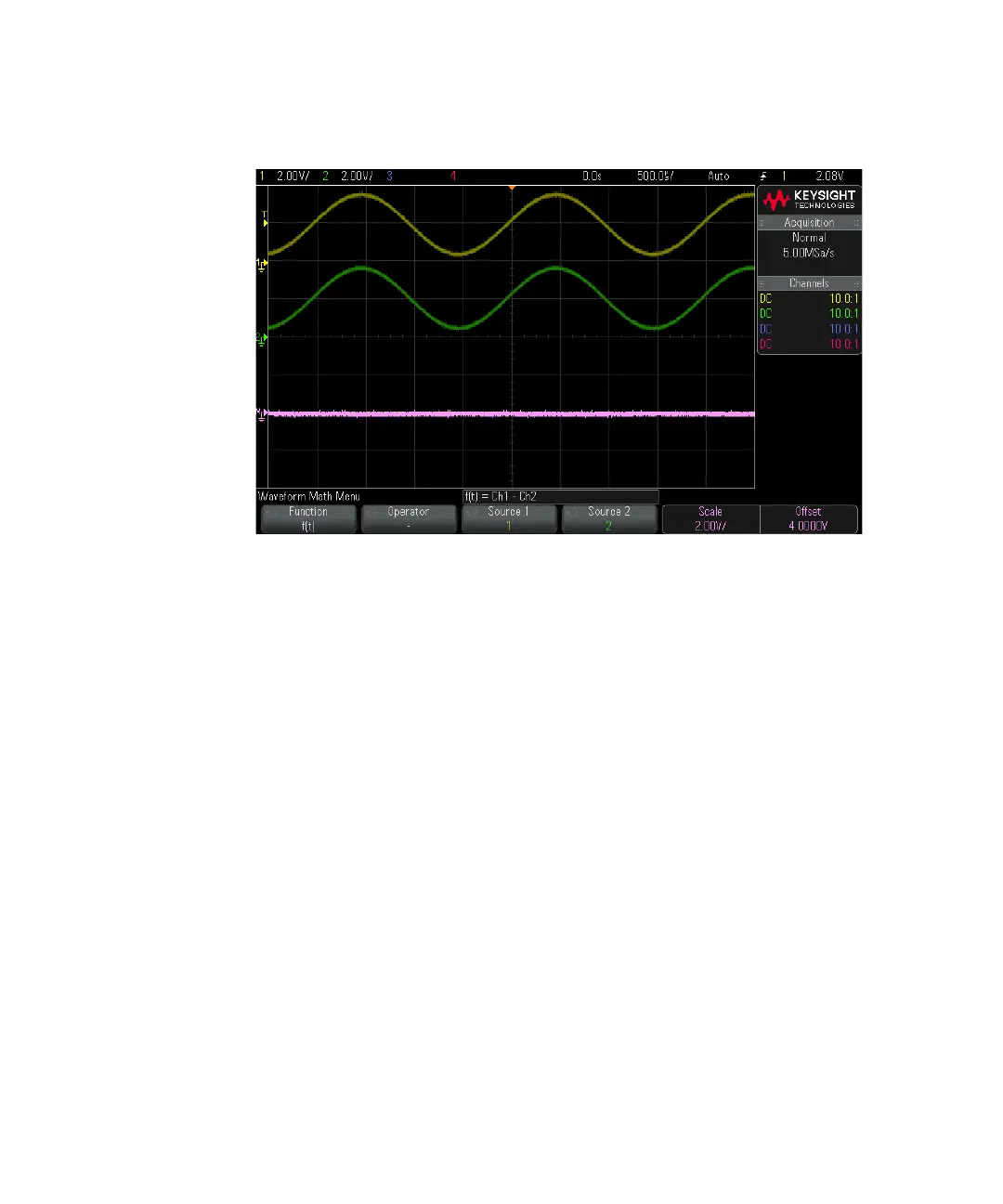

Figure 5 Example of Subtract Channel 2 from Channel 1
