196 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide
14 Measurements
Delay

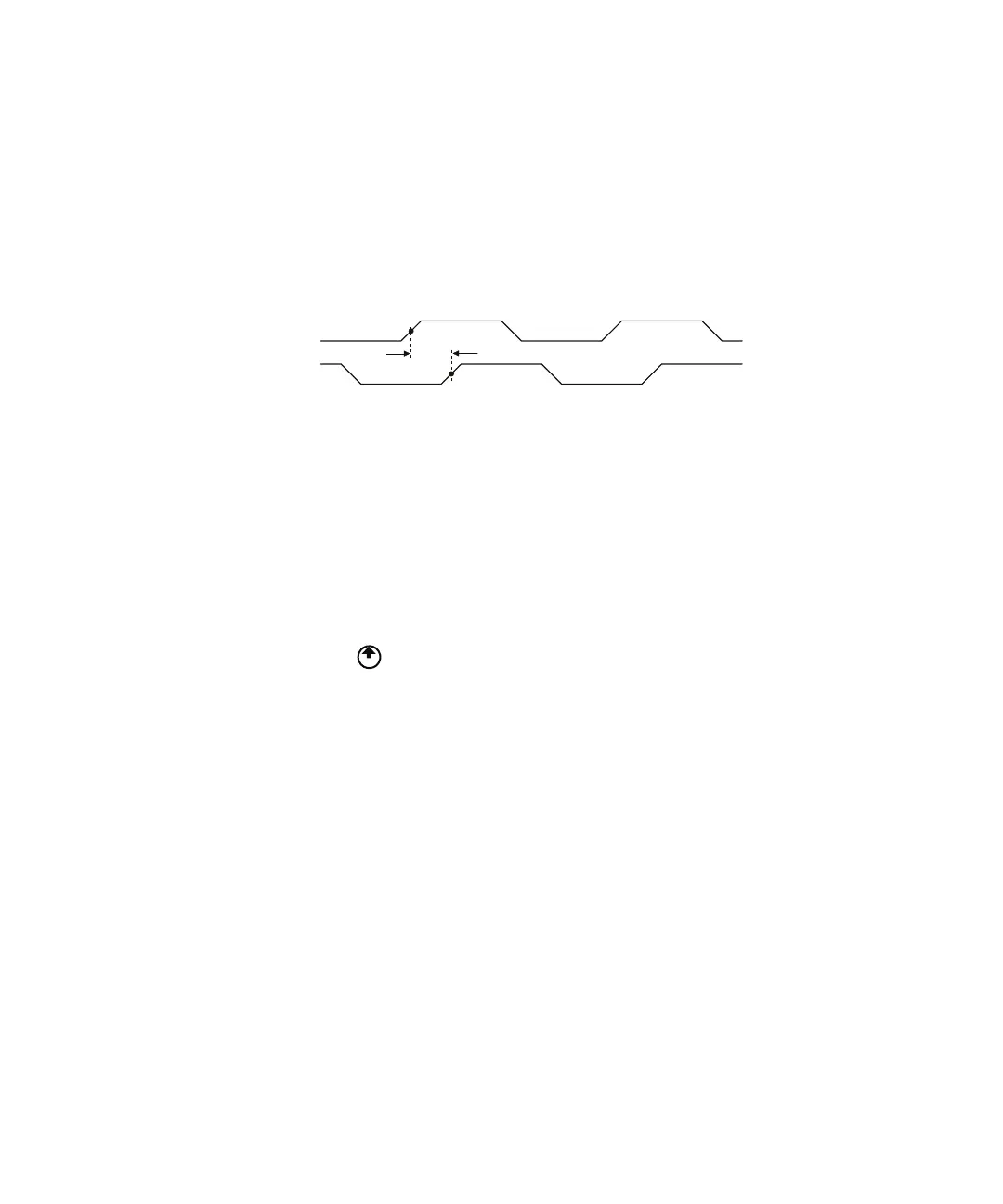

Delay measures the time difference from the selected edge on source 1 and the
selected edge on source 2 closest to the timebase reference point at the middle
threshold points on the waveforms. Negative delay values indicate that the
selected edge of source 1 occurred after the selected edge of source 2.
1 Press the [Meas] key to display the Measurement Menu.
2 Press the Source softkey; then turn the Entry knob to select the first analog
channel source.
3 Press the Type: softkey; then, turn the Entry knob to select Delay.
4 Press the Settings softkey to select the second analog channel source and slope
for the delay measurement.
The default Delay settings measure from the rising edge of channel 1 to the
rising edge of channel 2.
5 Press the Back/Up key to return to the Measurement Menu.
6 Press the Add Measurement softkey to make the measurement.
The example below shows a delay measurement between the rising edge of
channel 1 and the rising edge of channel 2.
