12 Acquisition Control
6 Press the [Run] or [Single] key.
The oscilloscope runs and fills a memory segment for each trigger event. When
the oscilloscope is busy acquiring multiple segments, the progress is displayed in
the upper right area of the display. The oscilloscope continues to trigger until
memory is filled, then the oscilloscope stops.
If the signal you are measuring has more than about 1 s of inactivity, consider
selecting the Normal trigger mode to prevent AutoTriggering. See “To select the
Auto or Normal trigger mode" on page 148.
See Also • “Navigating Segments" on page 168
• “Infinite Persistence with Segmented Memory" on page 169
• “Segmented Memory Re-Arm Time" on page 169
• “Saving Data from Segmented Memory" on page 169
Navigating Segments
1 Press the Current Seg softkey and turn the Entry knob to display the desired
segment along with a time tag indicating the time from the first trigger event.
You can also navigate segments using the [Navigate] key and controls. See “To
navigate segments" on page 60.

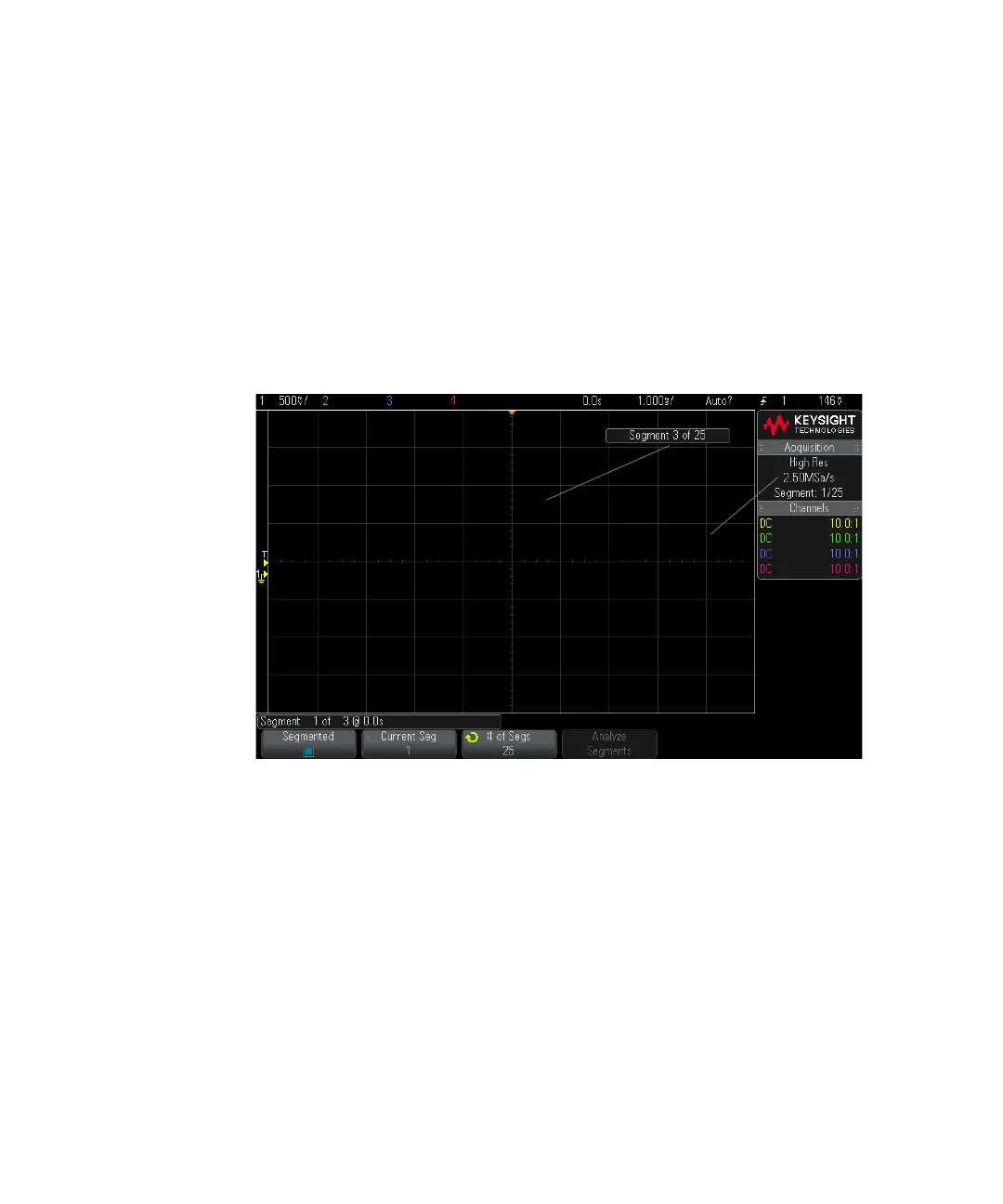

Progress indicator
Sample rate
