176 Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide

13 Cursors

Expand the display with Zoom mode, then characterize the event of interest with

the cursors.

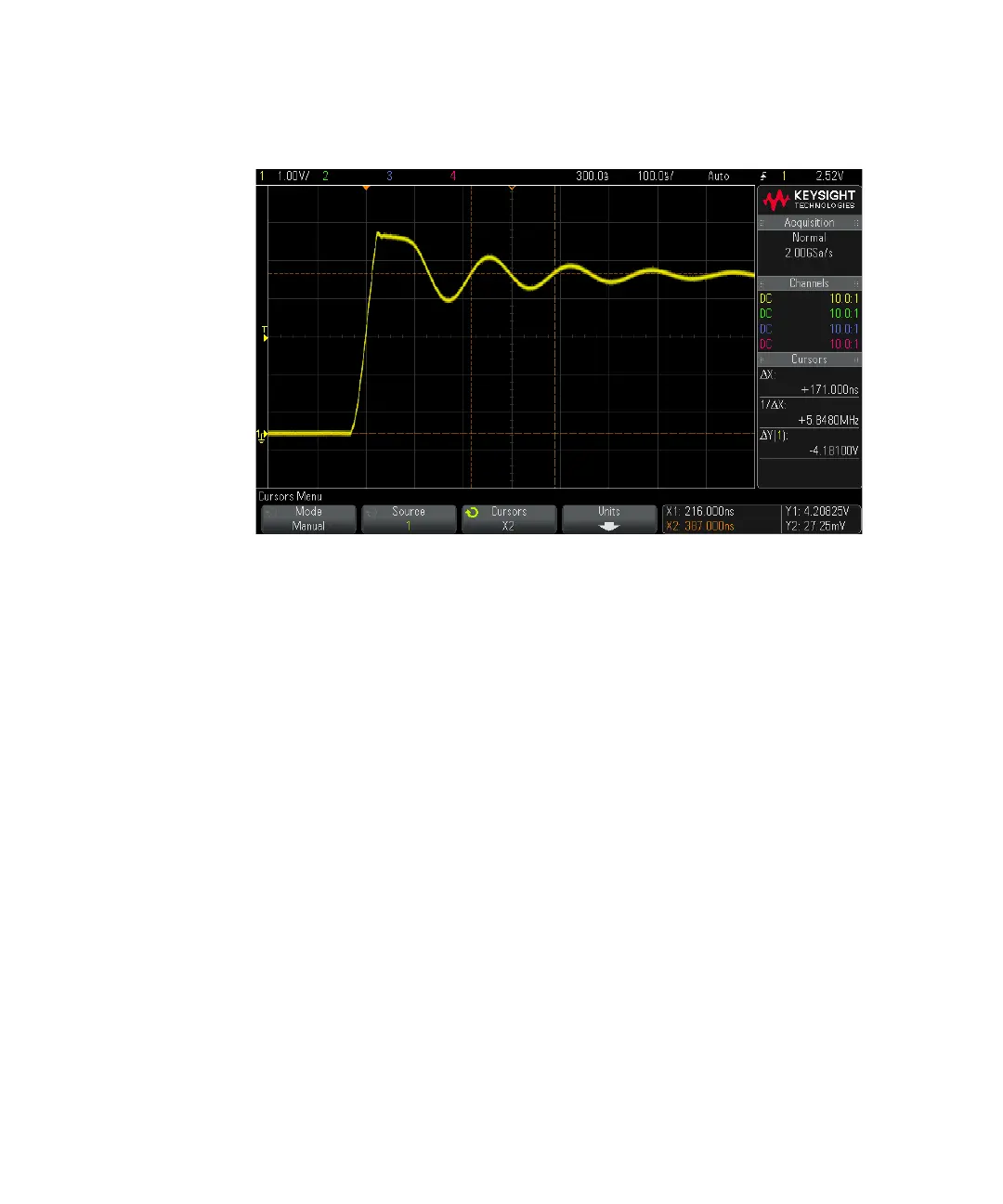

Figure 29 Cursors measure frequency of pulse ringing
