17 Waveform Generator

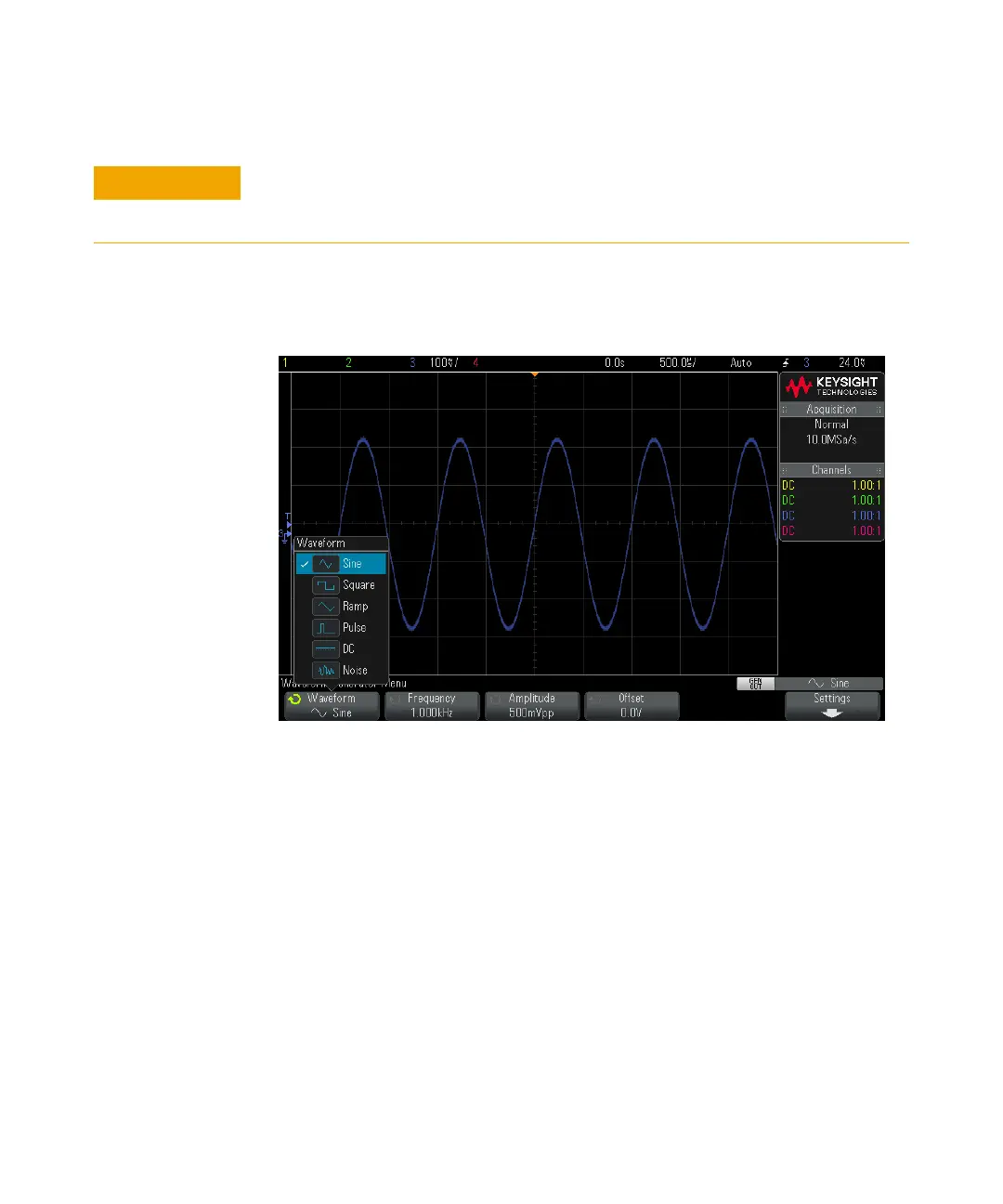

2 In the Waveform Generator Menu, press the Waveform softkey and turn the
Entry knob to select the waveform type.
3 Depending on the selected waveform type, use the remaining softkeys and the
Entry knob to set the waveform's characteristics.
It takes the overload protection circuit about 10 ms to respond to an overload. If you
instantly apply a voltage greater than ~40 V, you are likely to damage waveform
generator circuitry before the protection circuit can respond.
