Getting Started 1

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 25

See Also • “Probes and Accessories" on page 285

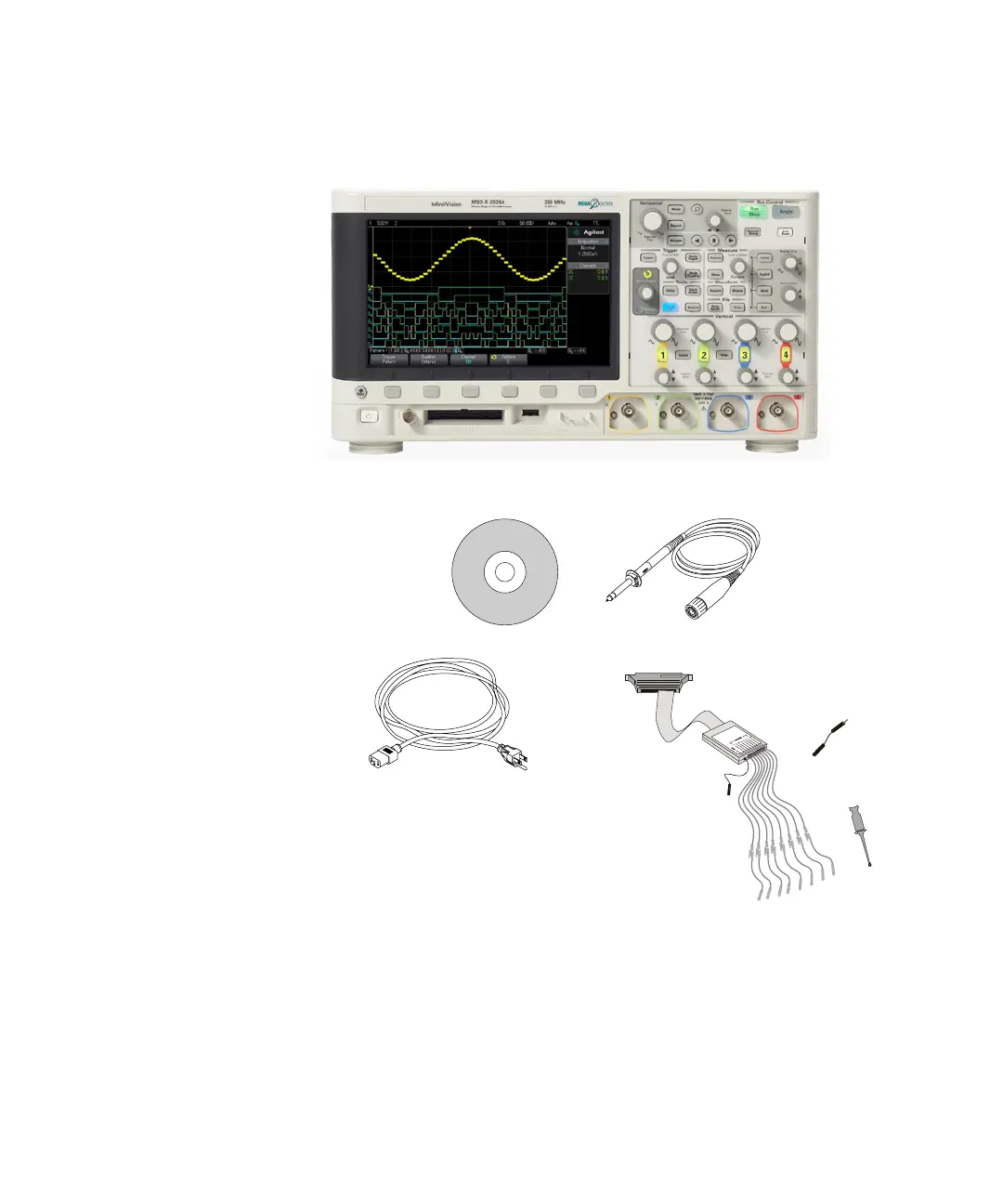

InfiniiVision 2000 X-Series oscilloscope

Power cord

(Based on country

of origin)

Documentation CD

N2841A probes

(Qty 2 or 4)

N2755-60001

Digital Probe Kit

(MSO models only)
