Utility Settings 20

Keysight InfiniiVision 2000 X-Series Oscilloscopes User's Guide 259

For a 4-channel oscilloscope, connect BNC tees to the equal-length cables as

shown below. Then connect a BNC(f)-to-BNC(f) (barrel connector) to the tee as

shown below.

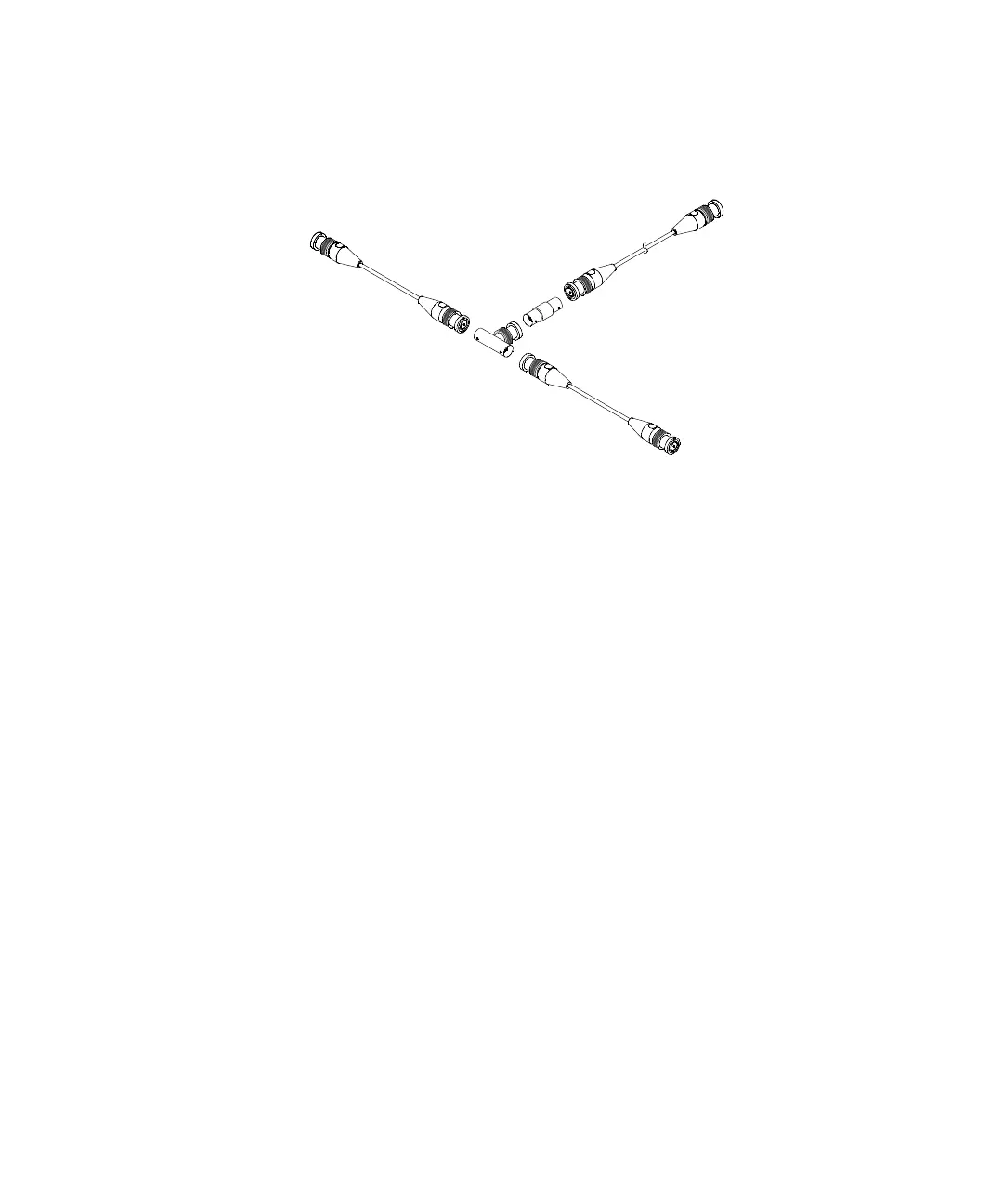

Figure 36 User Calibration cable for 2-channel oscilloscope

To Channel 1

To Channel 2

Long cable

to TRIG OUT
