Item Description
10 On/Standby key and LED indicator
Turns on the instrument. If the LED is amber, the instrument is in standby mode with AC inlet power connected, and if it is green, the
instrument is on.
11 All output on/off key
Turns all outputs On and Off according to the specified turn-on and turn-off delays.
12 Softkeys
Accesses the soft front panel menu.
13 USB port
Allows an external USB drive to be connected to the instrument.

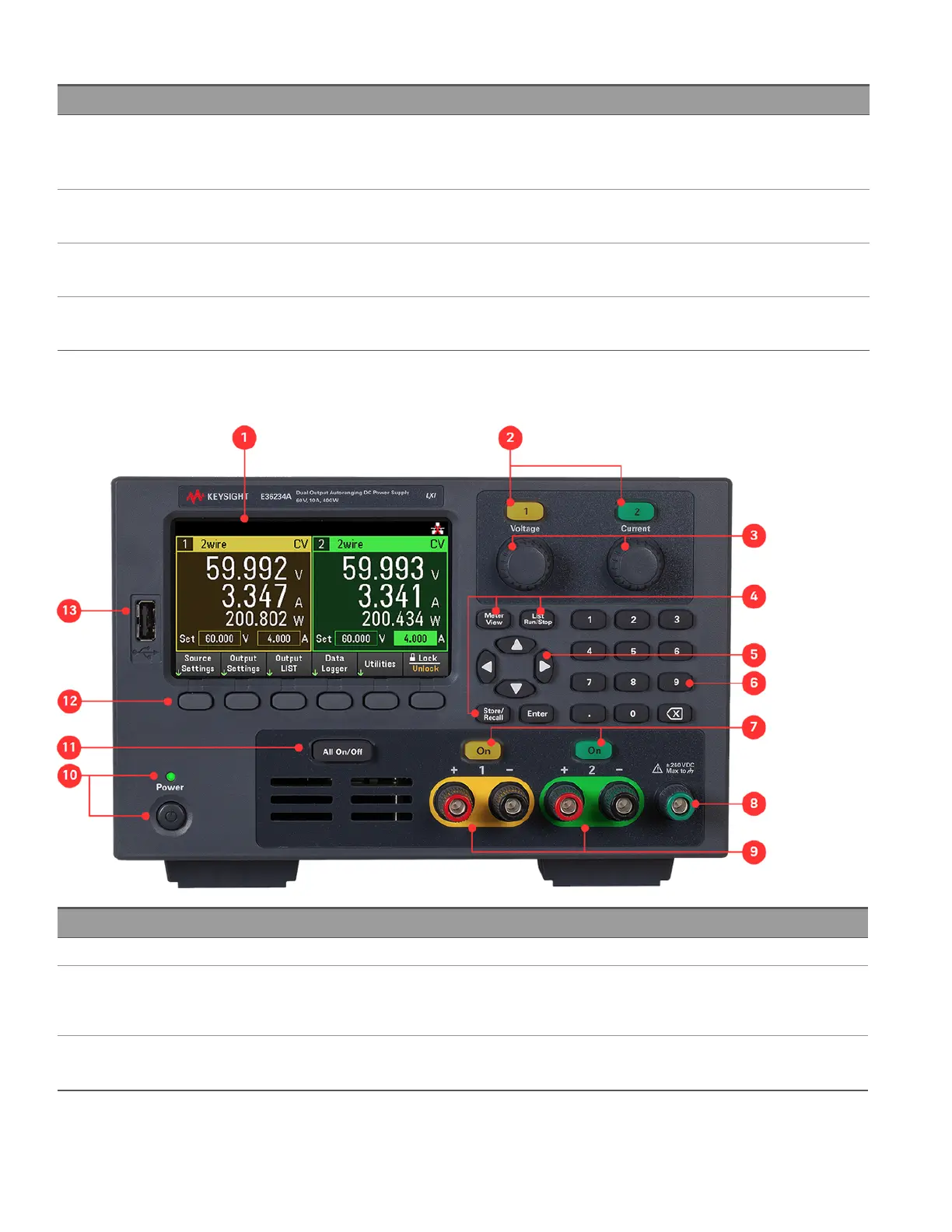

Front panel at a glance (E36234A)
Item Description
1 Information-packed, high contrast 4.3-inch LCD color display; easily viewable even from sharp angles
2 Output selection keys
Selects an output to control. The lit key indicates the selected output.
Tip: When this key is selected, pressing this key again will toggle between multiple and single output view.
3 Voltage/Current knobs
Set the voltage and current of the selected output.
18
Keysight E36200 Series User's Guide
To Next Page
