Turning the Unit On
After you have connected the power cord, press the [On/Standby] key to turn the unit on. The front panel display
lights up after a few seconds. When the front panel meter view appears, use the Voltage and Current knobs to enter
voltage and current values.
For the E36233A and E36234A models, Output 1 is selected by default:
E36231A /E36232A: Press the [On] key to enable the output.
E36233A/E36234A: Press one of the two [On] keys to enable an individual output or press the [All On/Off] key to
enable both outputs simultaneously.

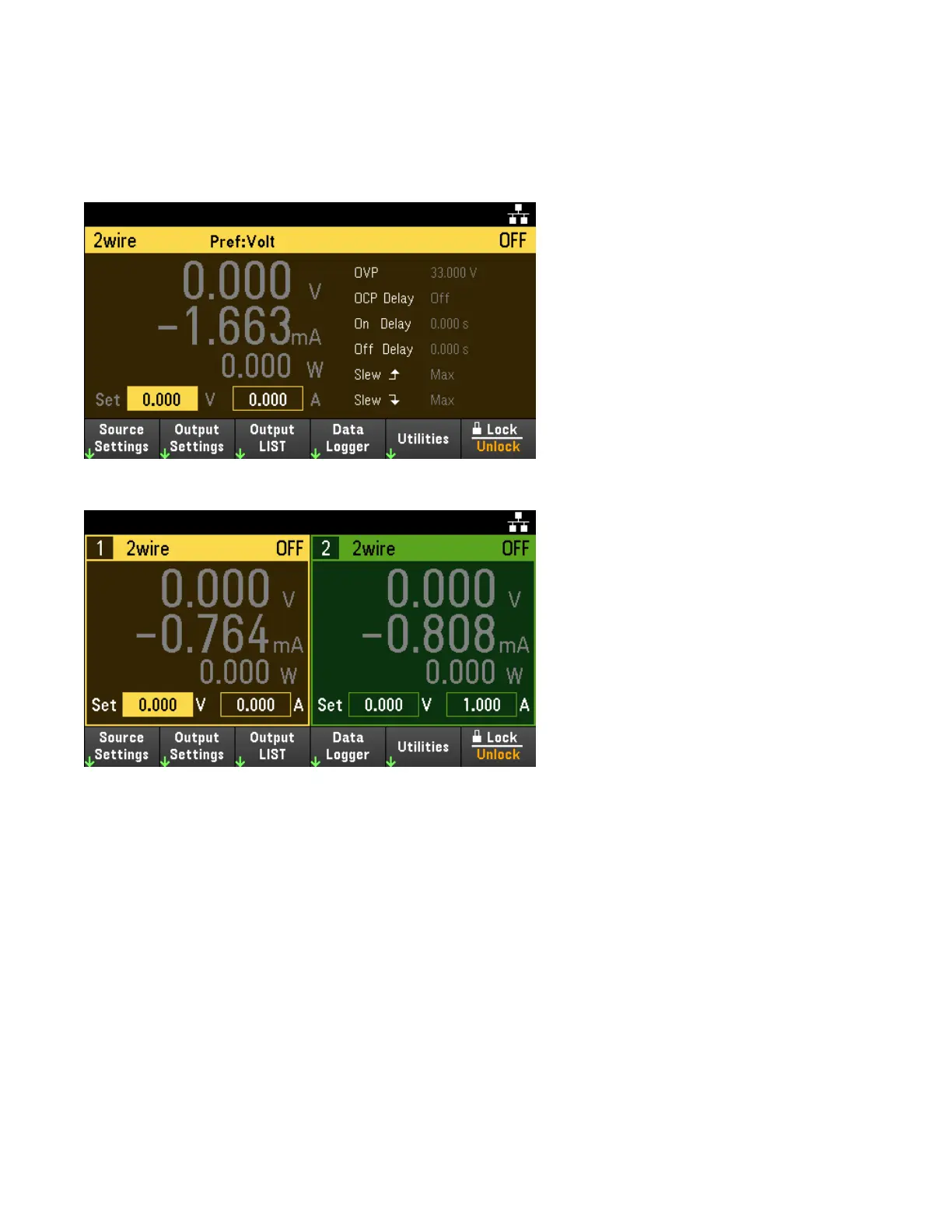

In meter view, the power supply continuously measures and displays the output voltage and current of each output.
Keysight E36200 Series User's Guide 63
