Controlling the Outputs

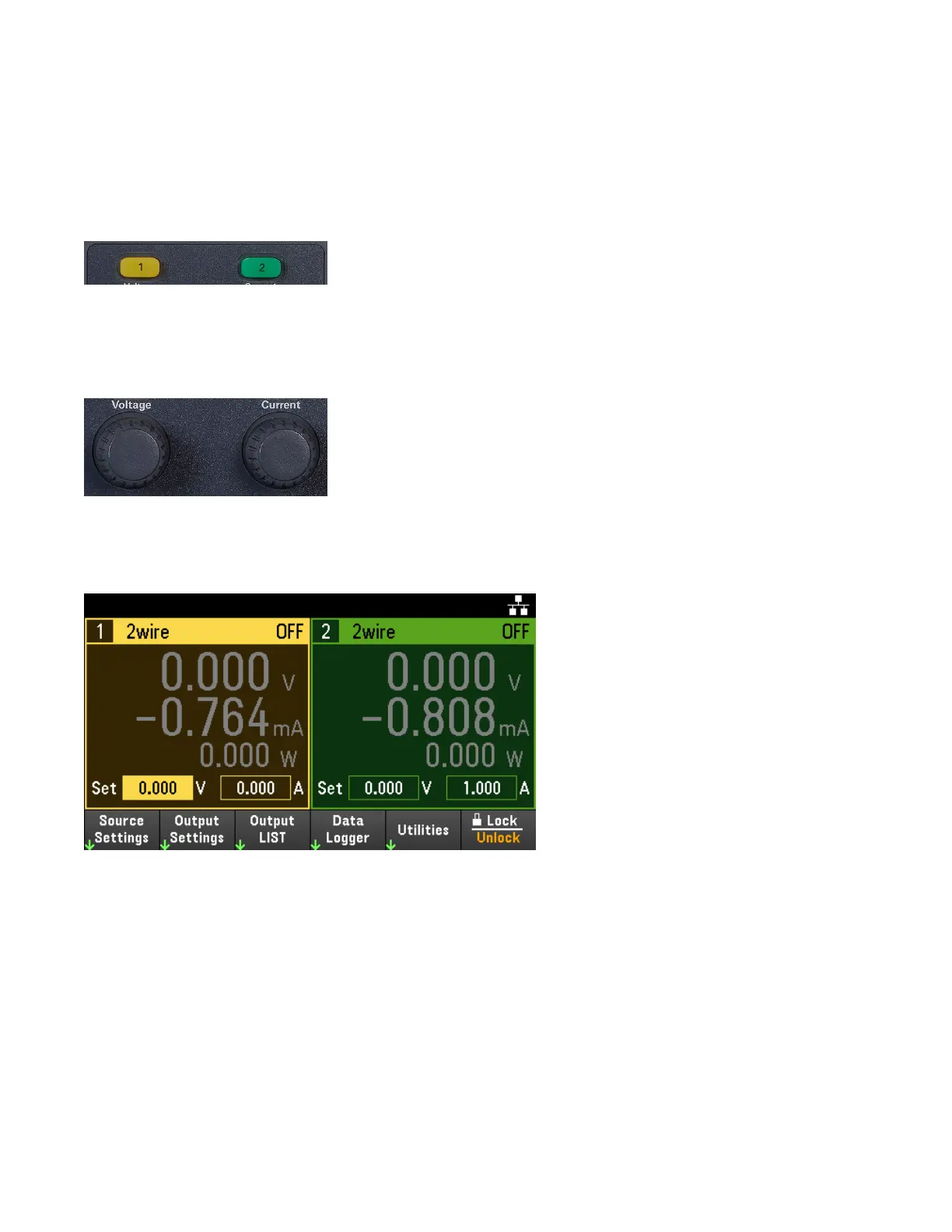

Step 1 - Select an output (E36233A/E36234A only)
Press one of the output selection keys to select an output to control. The lit key identifies the selected output. All
subsequent output-specific front panel commands are sent to the selected output.
Step 2 - Set the output voltage and current
Turn the Voltage and Current knobs. The output voltage or current setting changes when they are turned.
You can also enter the voltage and current values directly in the numeric entry fields (the Set fields) in the meter-view
display. Use the navigation keys to select the field; use the numeric entry keys to enter the value. The value becomes
active when you press [Enter].
Keysight E36200 Series User's Guide 65
