Keysight E36200 Series User Manual

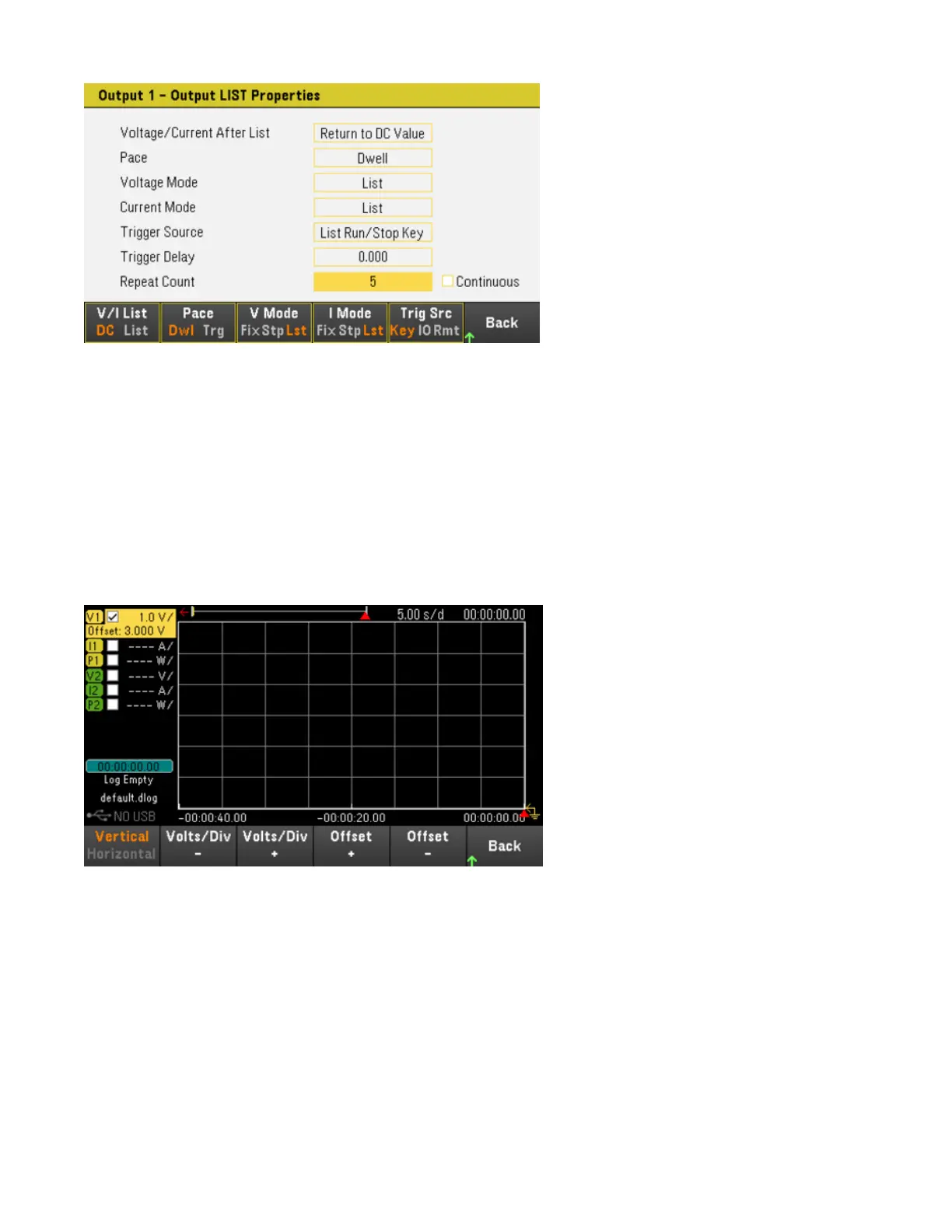

Step 2 – Configure the data logger traces
– Check V1. On the data logger display, use the navigation keys to select V1 and press [Enter].
– Uncheck V2 as the current and power traces.
– Press Waveform Settings > Vertical. Use Volts/Div – or Volts/Div + to set V1 to 1V/Div. Use Offset + or Offset –
to move the V1 trace to the bottom of the grid.
Traces are color coded according to output. The ground symbol on the right side of the display indicates the ground
reference of the trace.
Step 3 – Configure the data logger properties
Press Logging to display the Logging properties field.
– Leave the default Duration and Sample Period at 30 s and 200 ms respectively.
– Set the Trigger Source to Run/Stop Key by pressing Trig Src Key.
Keysight E36200 Series User's Guide 95
