Rack mounting the instrument
Use the Rack Mount kit as stated below to rack mount the instrument. Installation instructions are provided
with the rack mount kit.
To prevent overheating, do not block airflow to or from the instrument. Allow enough clearance at the rear,
sides, and bottom of the instrument to permit adequate internal air flow.
The power supply can be mounted in a standard 19-inch rack cabinet. They are designed to fit in three rack-units
(3U) of space.
Remove the feet before rack mounting the unit. Do not block the air intake and exhausts at the sides and rear of the
unit.

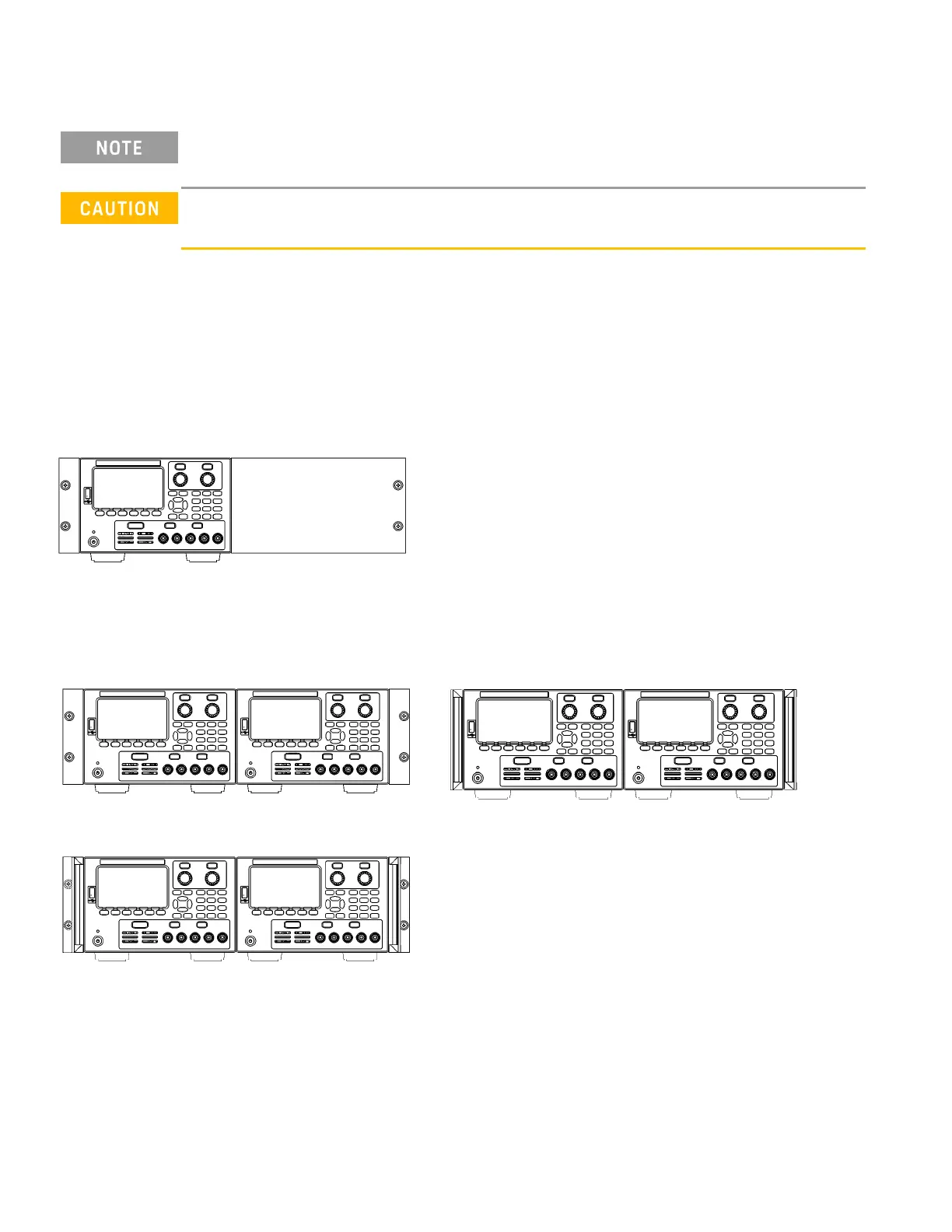

Rack mounting a single instrument
To rack mount a single instrument, order adapter kit (1CM116A).
Rack mounting instruments side-by-side
To rack mount two instruments side-by-side, order lock-link kit (5061-8769). Be sure to use the support rails in the
rack cabinet.
Rackmount kit without handles (1CM104A)
Front handle kit (1CN107A)
Rackmount kit with handles (1CP108A)
46
Keysight E36200 Series User's Guide
