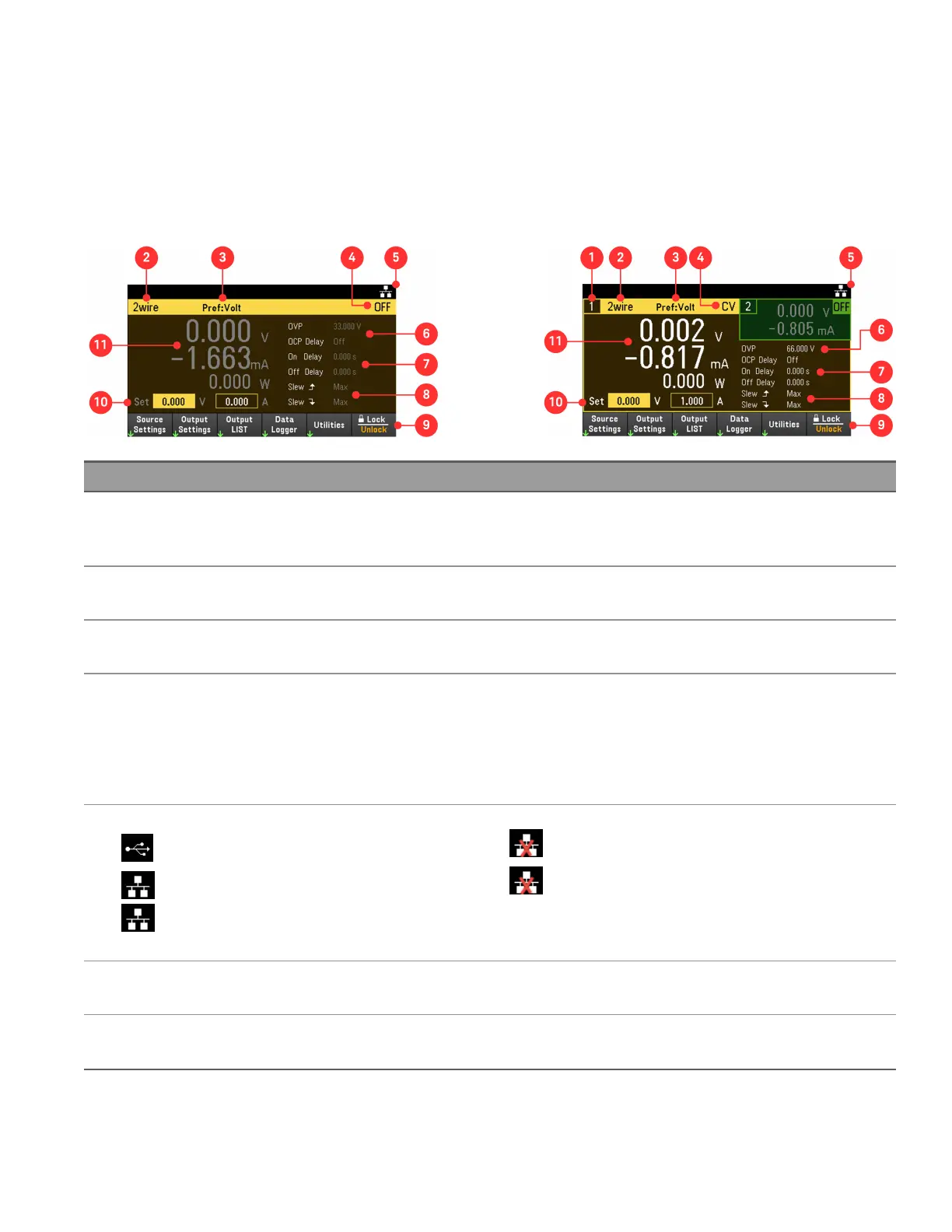

Meter view
The power supply's front panel features a high contrast 4.3-inch LCD color display.
Press [Meter View]. This key toggles between multiple (E36233A and E36234A models only) and single output view.
E36231A/E26232A E36233A/E26234A
Item Description
1 Output identifier (E36233A/E36234A only)
When an output is selected, the background becomes highlighted. The selected output is displayed in an enlarged format in single
output view.
2 Remote sense status
2wire or 4wire indicates that 2-wire or 4-wire sensing measurement is in use.
3 Preferred mode status
Volt or Curr indicates the preferred mode for output on or output off transitions.
4 Output status
OFF: The output is off
CV: The output is in constant voltage mode
CC: The output is in constant current mode
UR: The output is unregulated
OV: Over-voltage protection is tripped
OC: Over-current protection is tripped
OT: Over-temperature protection is tripped
5 Interface status
: The instrument is connected to USB.
: The instrument is connected to LAN.
(blinking): The instrument is under identification mode via
remote interface.
: The instrument is not connected to LAN.
(blinking): The LAN connection is at fault.
6 Ratings and protection
Displays the present over-voltage protection (OVP) setting.
7 Output delay
Displays the OCP, Output On, and Output Off delay status/values.
Keysight E36200 Series User's Guide 21
