Keysight E36200 Series User Manual

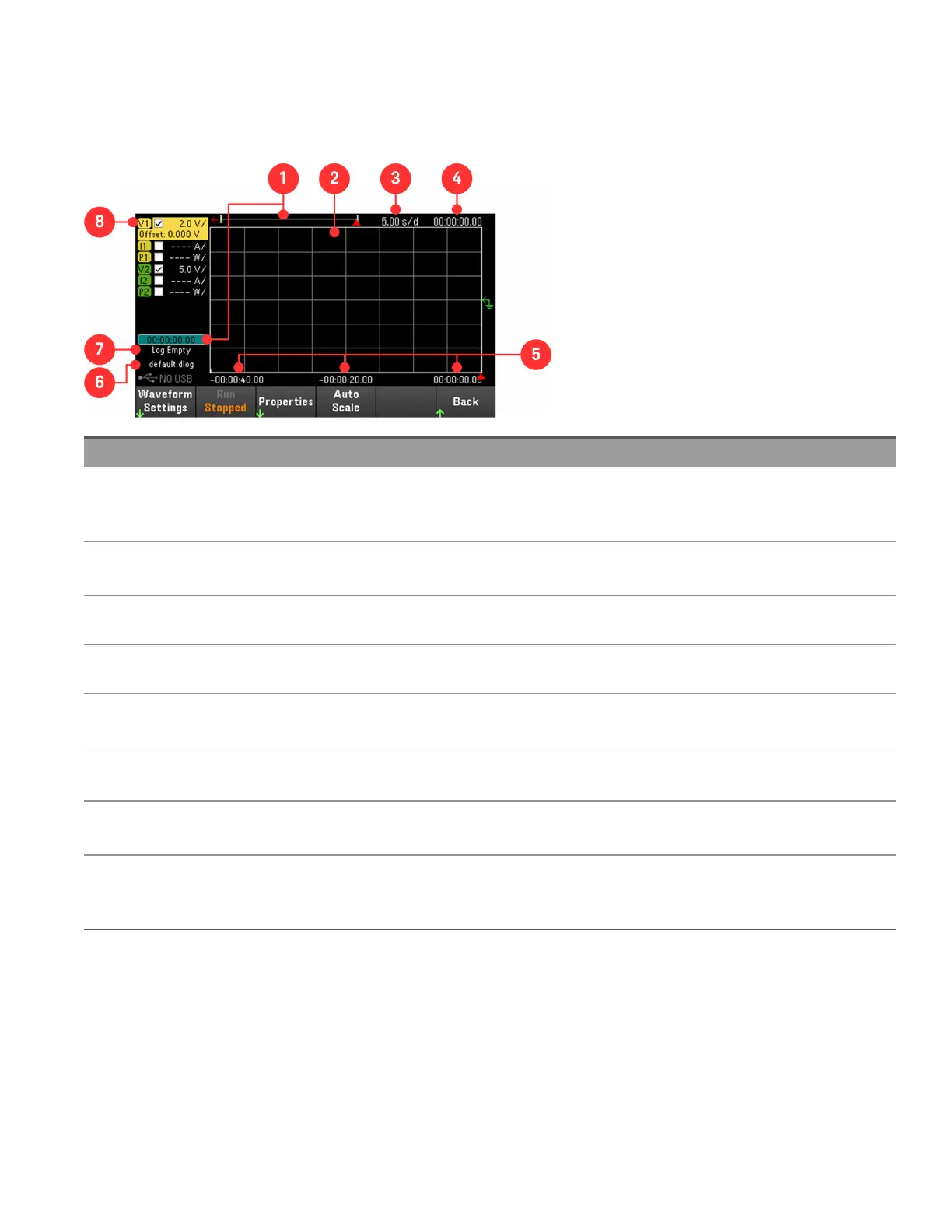

Data logger view
Press Data Logger from the soft front panel menu.
Item Description
1 Data bar and time elapsed
Displays the progress of the data logger. The yellow bar indicates the visible data. Numbers to the left indicate time elapsed/total
duration.
2 Output traces
Voltage, current, or power traces. Voltage traces V1 and V2 is shown for E36233A/E36234A. Press Auto Scale to auto scale all traces.
3 Time/Div
Indicates the horizontal time-base setting.
4 Offset time
Indicates the time that the right gridline is offset or away from the end of the data log.
5 Grid time
Displays the time on the gridline.
6 Filename
Indicates the file to which the data is being logged.
7 Status
Indicates whether the Data Logger is logging data, done logging, or is empty.
8 Trace controls
Identifies the voltage or current trace that will be displayed. Dashes (----) indicate that the specified trace is turned off. Select the
trace and press [Enter] to turn it on or off.
Keysight E36200 Series User's Guide 23
