Using the Data Logger Function
The Data Logger allows you to view and log output voltage and current data for up to 21,845 hours (for single
output, depending on the memory size) and up to 5 MB of data.
You can configure the Data Logger View to display voltage or current waveforms for all outputs. Once data logging
completes, the data is automatically stored to a file named default.dlog.
Logging data
In the following data log example, a user-defined arbitrary waveform is captured on the data logger. The data logger
records the actual output voltage of the arbitrary waveform.
Step 1 – Program the sequence for the output channels
Configure the output sequence as described under Using the Output LIST.

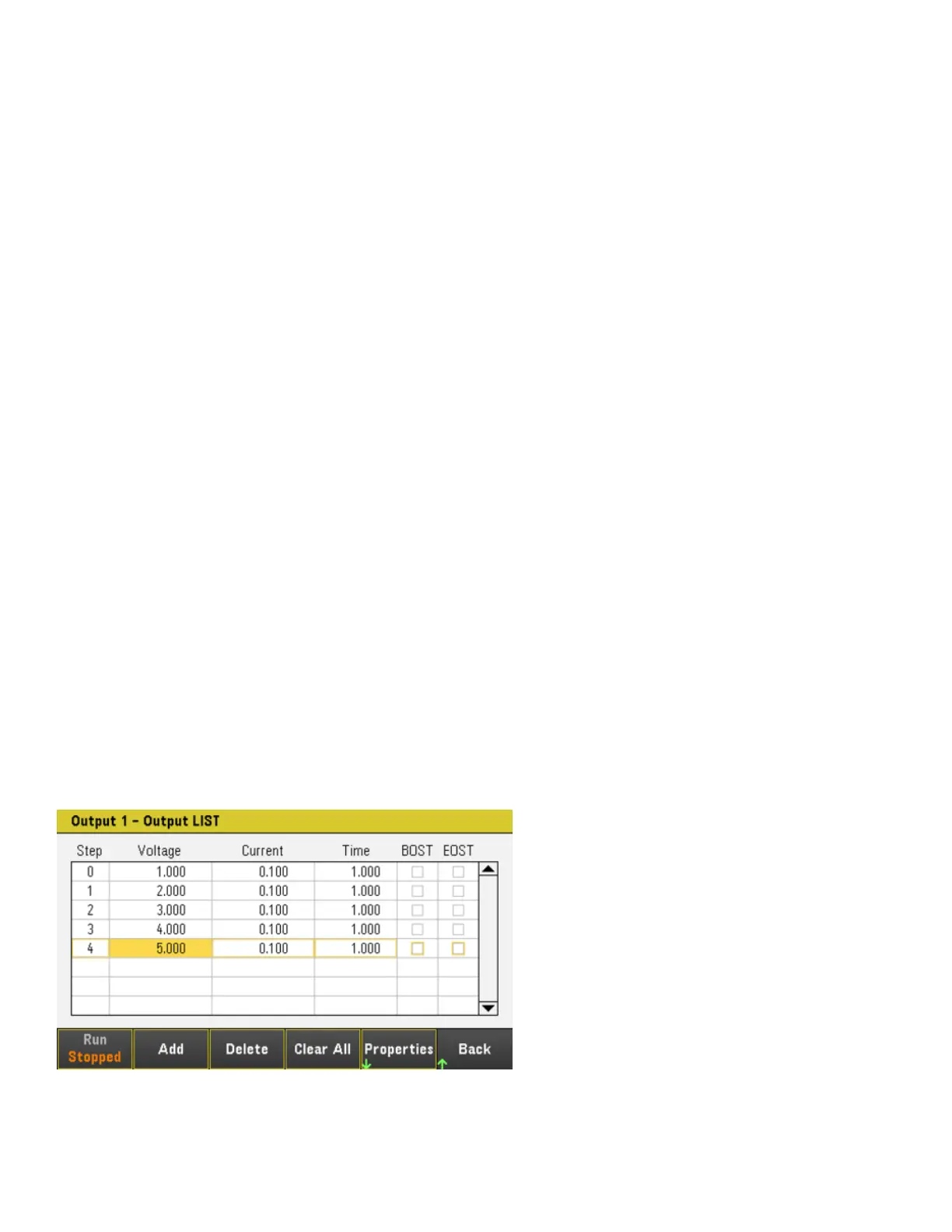

Program the output voltage and time values as follows:
Step 0: 1 V; 0.1 A; 1 s
Step 1: 2 V; 0.1 A; 1 s
Step 2: 3 V; 0.1 A; 1 s
Step 3: 4 V; 0.1 A; 1 s
Step 4: 5 V; 0.1 A; 1 s
Repeat Count: 5
Pace: Dwell
Voltage Mode: List
Current Mode: List
Trigger Source: List Run/Stop Key
94
Keysight E36200 Series User's Guide
