Rear panel

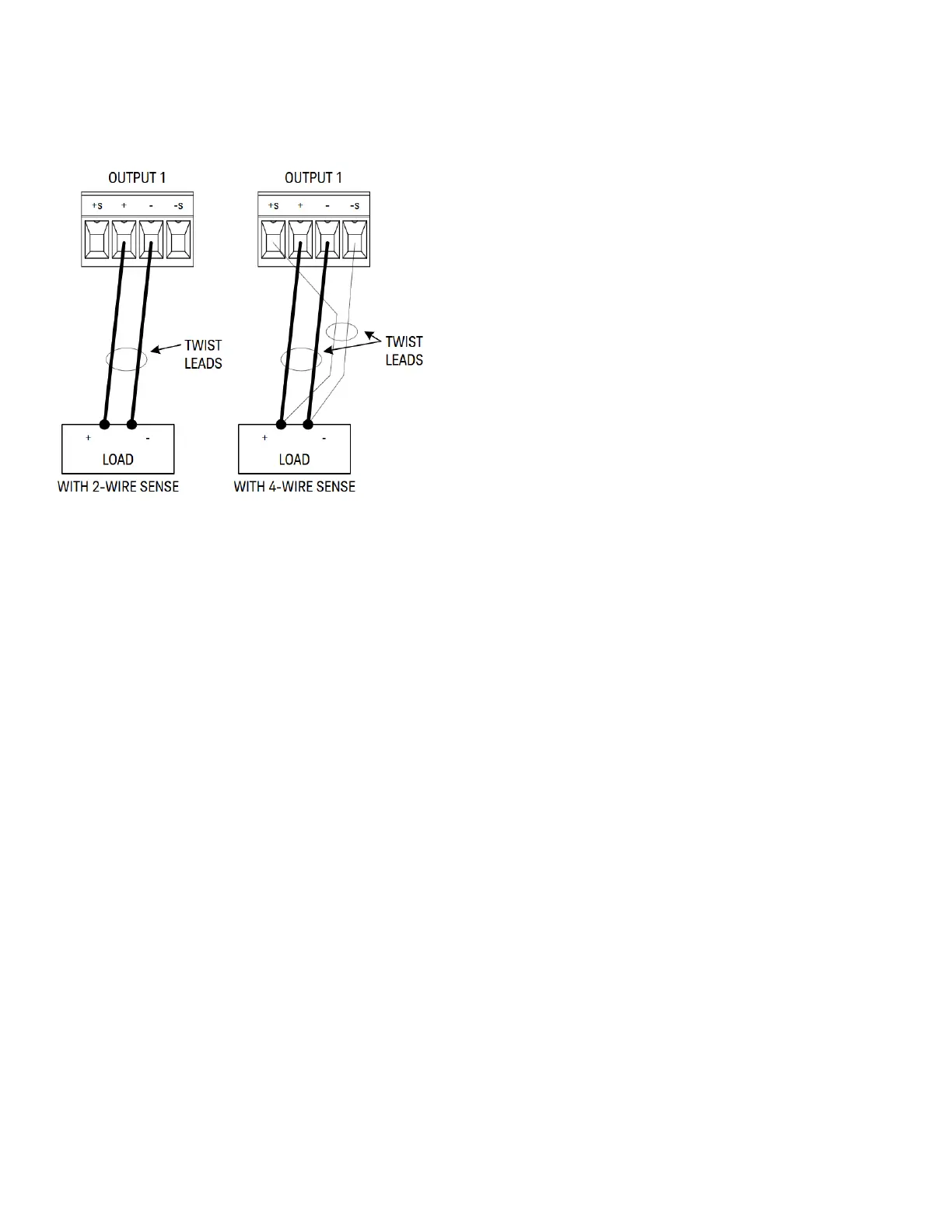

The figure on the left illustrates 2-wire sensing. If voltage drop in the load leads is a concern, the figure on the right
shows how to connect the sense leads directly at the load.
36
Keysight E36200 Series User's Guide
