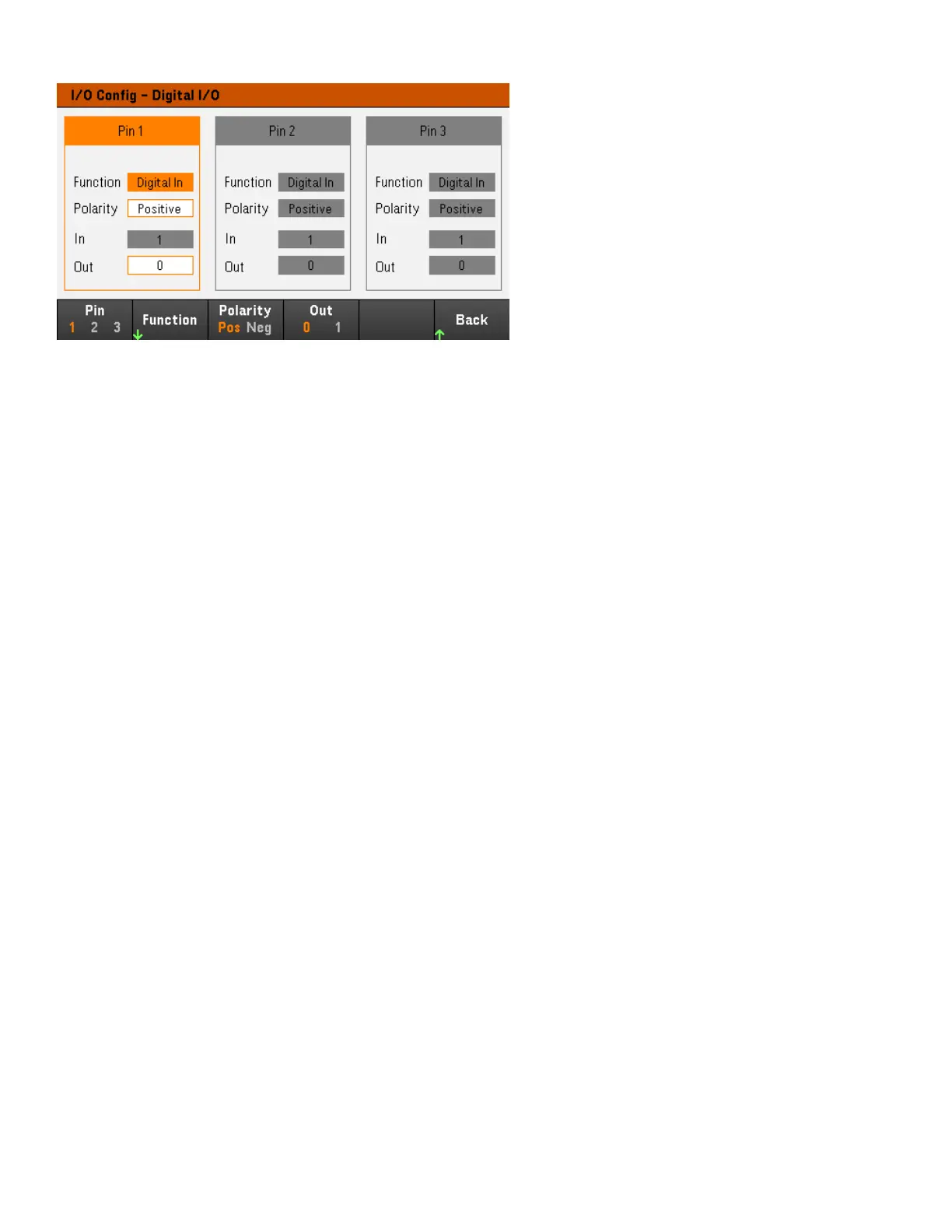

2. Select the pin you wish to configure. For example, press Pin 1 to configure Pin 1.
3. Press Function and select Digital I/O. Select and program the remaining pins in the same manner. Press Back to
return to previous page.
4. Configure the polarity for each of the pin. Press Polarity Pos to select Positive and Polarity Neg to select
Negative. Select and program the remaining pins in the same manner.
5. The In and Out field only apply to the Digital I/O and Digital In functions. Press Out to toggle and enter the binary
bit (0 or 1) into the Out field of the digital I/O window. For Digital I/O function, a binary bit 1 with positive polarity
specify a voltage high at the pin while a binary bit 0 with positive polarity specify a voltage low at the pin. The In field
reflects the condition of the external signal that is applied to the pins.
From the remote interface:
To configure the digital I/O function for pins 1 through 3:
DIG:PIN 1:FUNC DIO
DIG:PIN 2:FUNC DIO
DIG:PIN 3:FUNC DIO
To configure the pin polarity to positive for pins 1 through 3:
DIG:PIN 1:POL POS
DIG:PIN 2:POL POS
DIG:PIN 3:POL POS
To send a binary weighted value to configure pins 1 through 3 as “111”:
DIG:OUTP:DATA 7
