.aintenance -ight bulbs

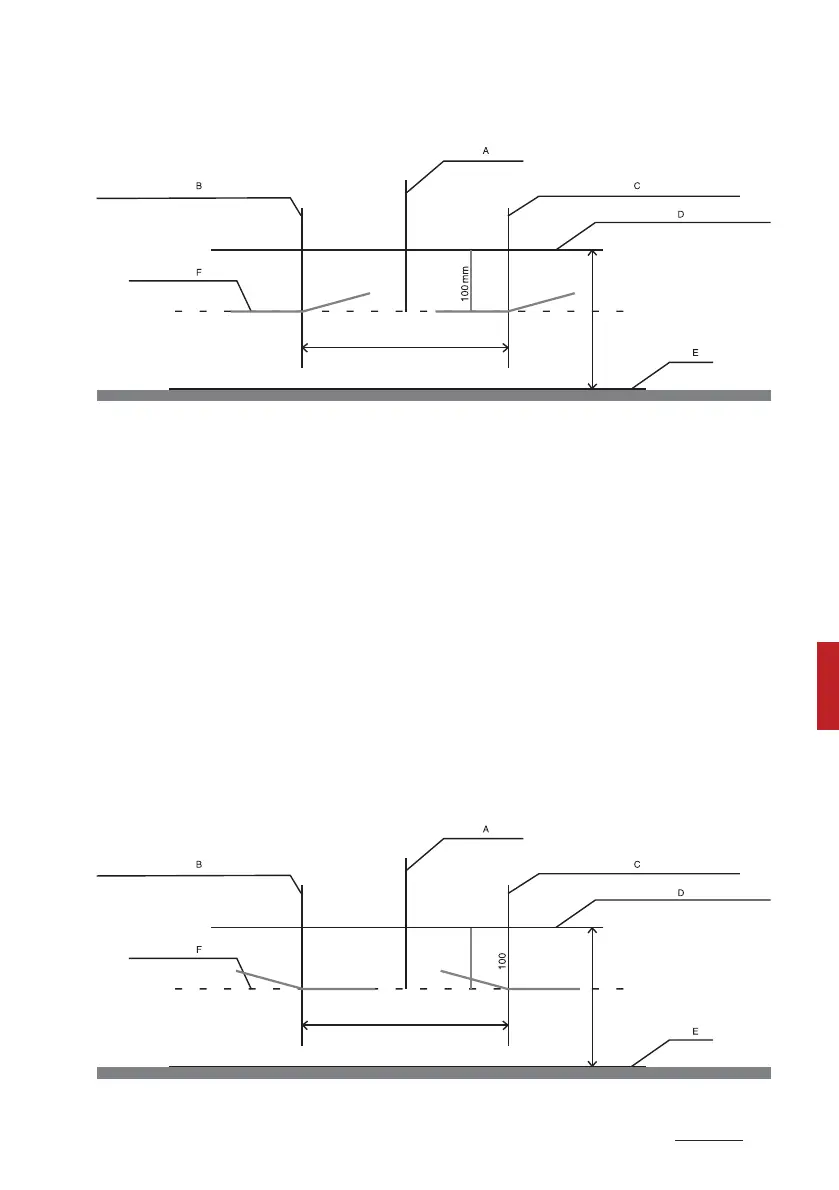

Based on 10m screen
A : Vehicle axis
B : Vertical line of the left head lamp bulb centre
C : Vertical line of the right head lamp bulb centre
D : Horizontal line of head lamp bulb centre
& : Ground
F : Cut-0ff line
Head lamp low beam (RHD Vehicle)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the pic
-
ture.
. 8hen aiming the low beam, vertical aiming should be adjusted after
adjusting the horizontal aiming.
. If head lamp levelling device is equipped, adjust the head lamp levelling
device switch with 0 positions.
Based on 10m screen
H1
W1
To Next Page
