- 18 -
INSTALLATION

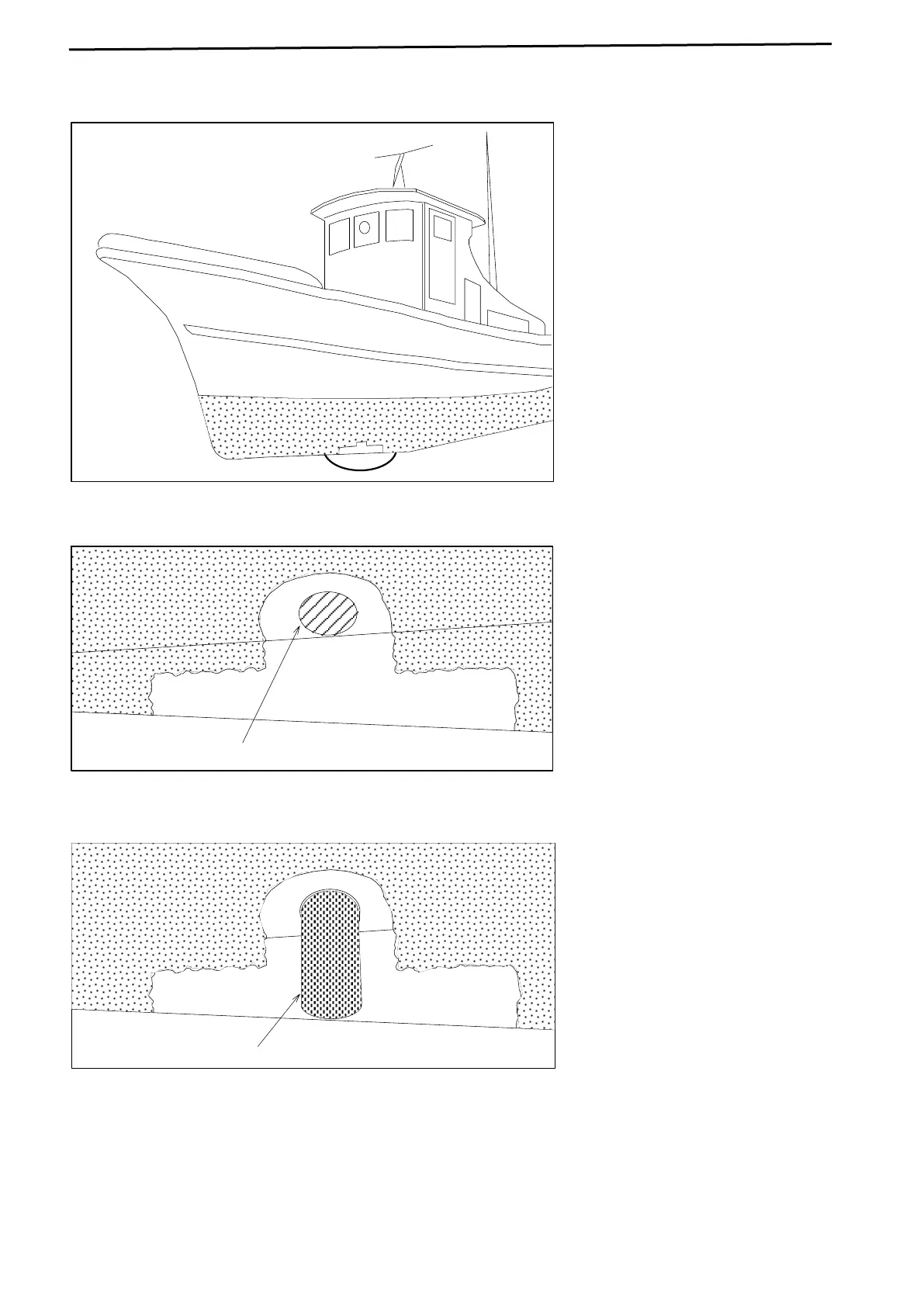

3. TD TANK INSTALLATION EXAMPLES
＜To be continued＞
- Select a location of TD tank.
Refer to page 11
-Make a hole of TD tank
diameter in the bottom of ship.
-Install the TD tank.
Flange should be positioned in
parallel with the ship’s draft in
sailing.
HULL
KEEL
TD TANK HOLE
TD TANK
