- 23 -
INSTALLATION

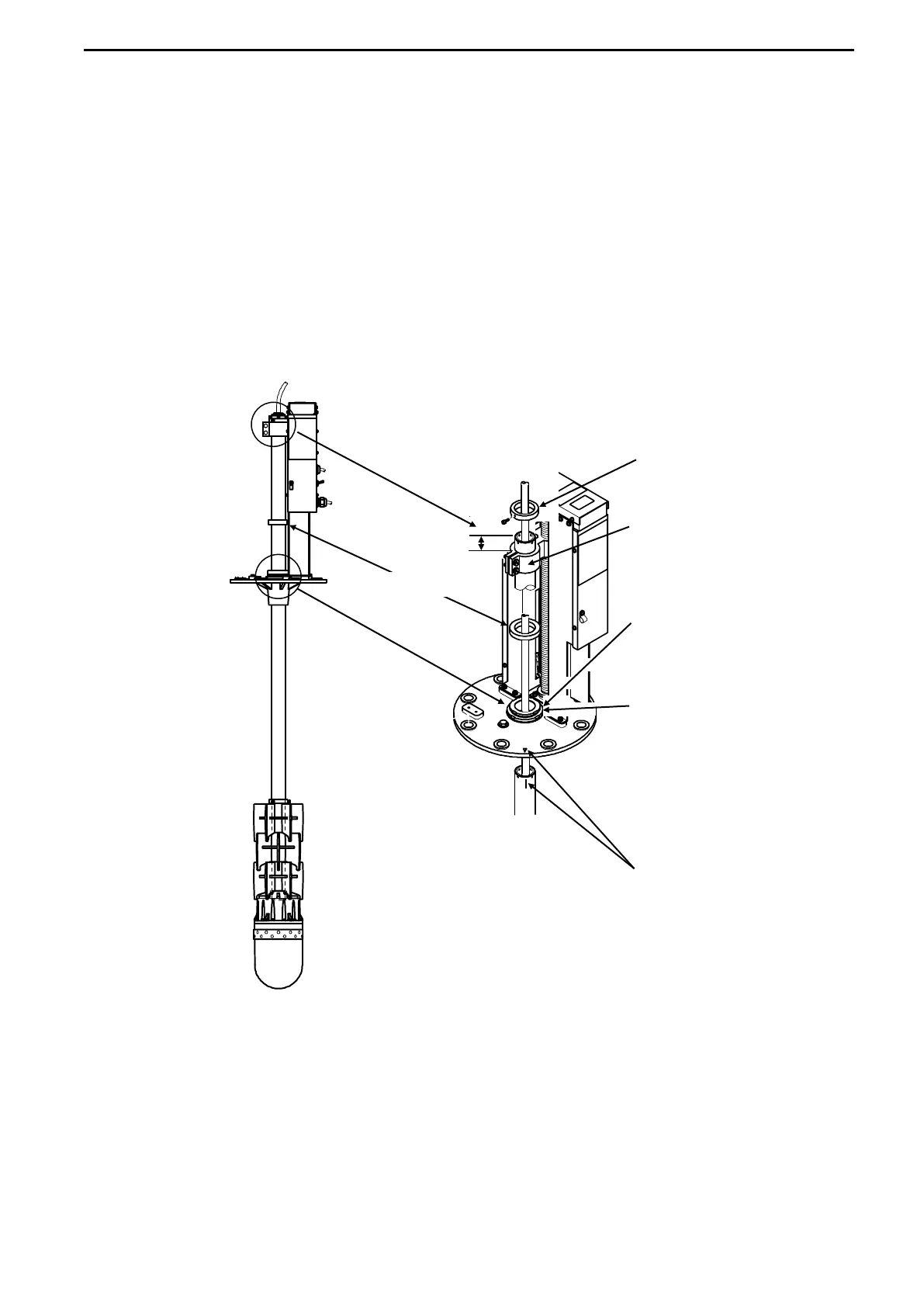

3) Mount the Transducer unit on the Hull unit
-Apply Grease inside the nuts and the Flange.
-Unscrew the nuts. Pass the TD shaft through the Flange assembly.
Pass the Damper through and align the bow mark on the Transducer unit with the mark on the
Flange assembly. Fix the Joint Arm to the TD shaft.
-Take care the position of the Transducer unit bottom is 48mm up from the TD tank bottom.
-Pass the Fixing Collar into the TD shaft and fasten it with the cap bolts (2 pcs).
＜To be continued＞
Align the bow mark when fixing
the TD shaft in the Joint Arm.
Flange assembly is shipped with
the nuts screwed.
Apply Grease to the TD shaft
and the contact surface with the TD
shaft.
Refer to the next page to know
how to tighten the nuts.
次ページをお読みください。
To Next Page
