INSTALLATION

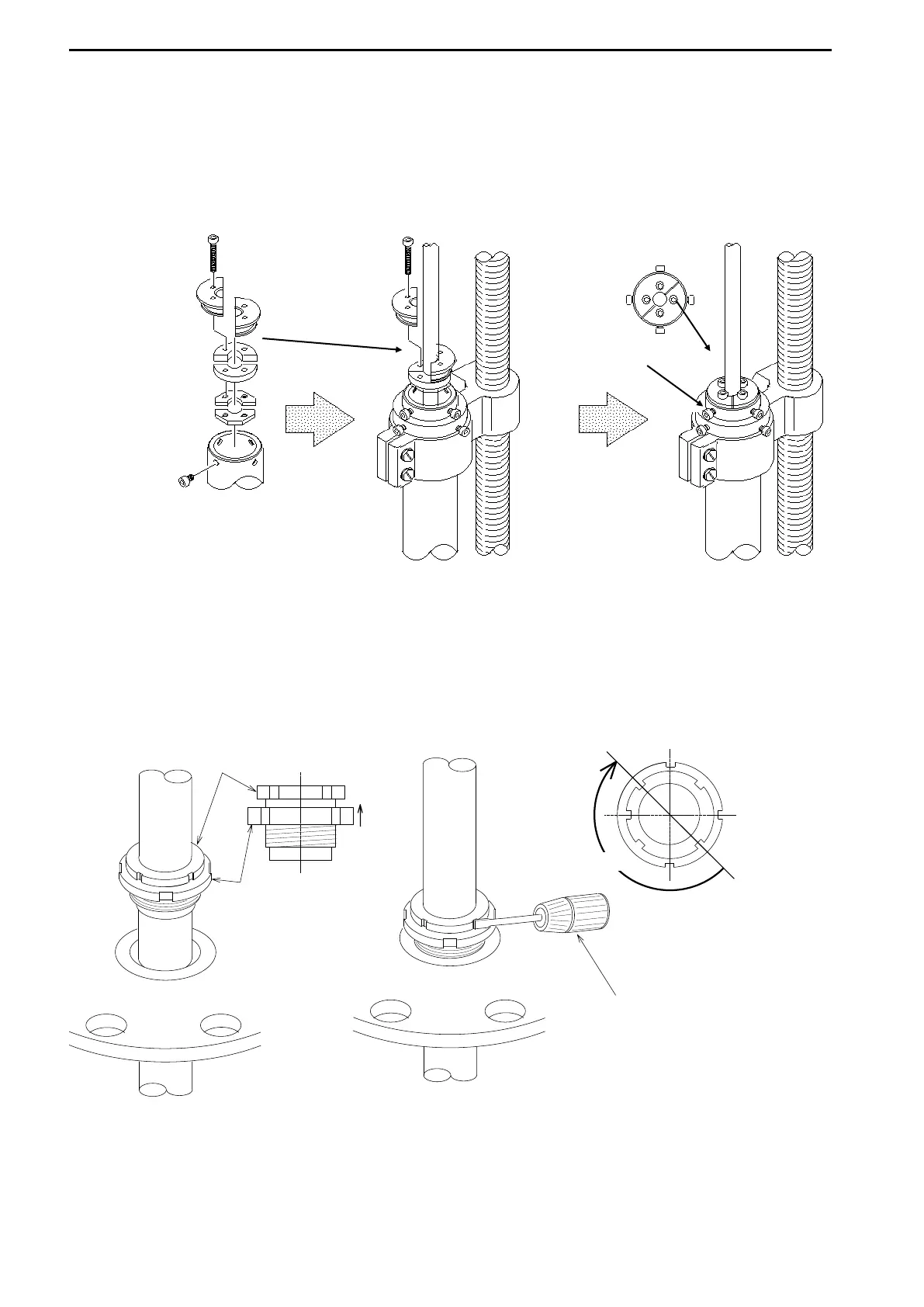

4) Mount the shaft cap at the end of TD shaft
Insert the shaft cap into the TD shaft.
Screw it with the cap bolts, M4x25 (4 pcs).
Screw the cap bolts, M4x10 (4 pcs) to prevent slip-out of the shaft cap.
5) How to tighten the nuts
Lift up the Lock Nut as shown in the drawing. Place the Waterproof Nut on the Flange opening
and tighten it firmly by hand and then make a 180-degree turn with a screwdriver.
Take care not to over a 180-degree. This Lock Nut is to protect loosening the Waterproof Nut.
Screw the Lock Nut tightly with a screwdriver and a hammer.
＜To be continued＞
Ensure the bolt position each.
After tightening the Water
Proof Nut by hand, use a
Screw Driver to clamp it
further by 180°.
