- 25 -
INSTALLATION

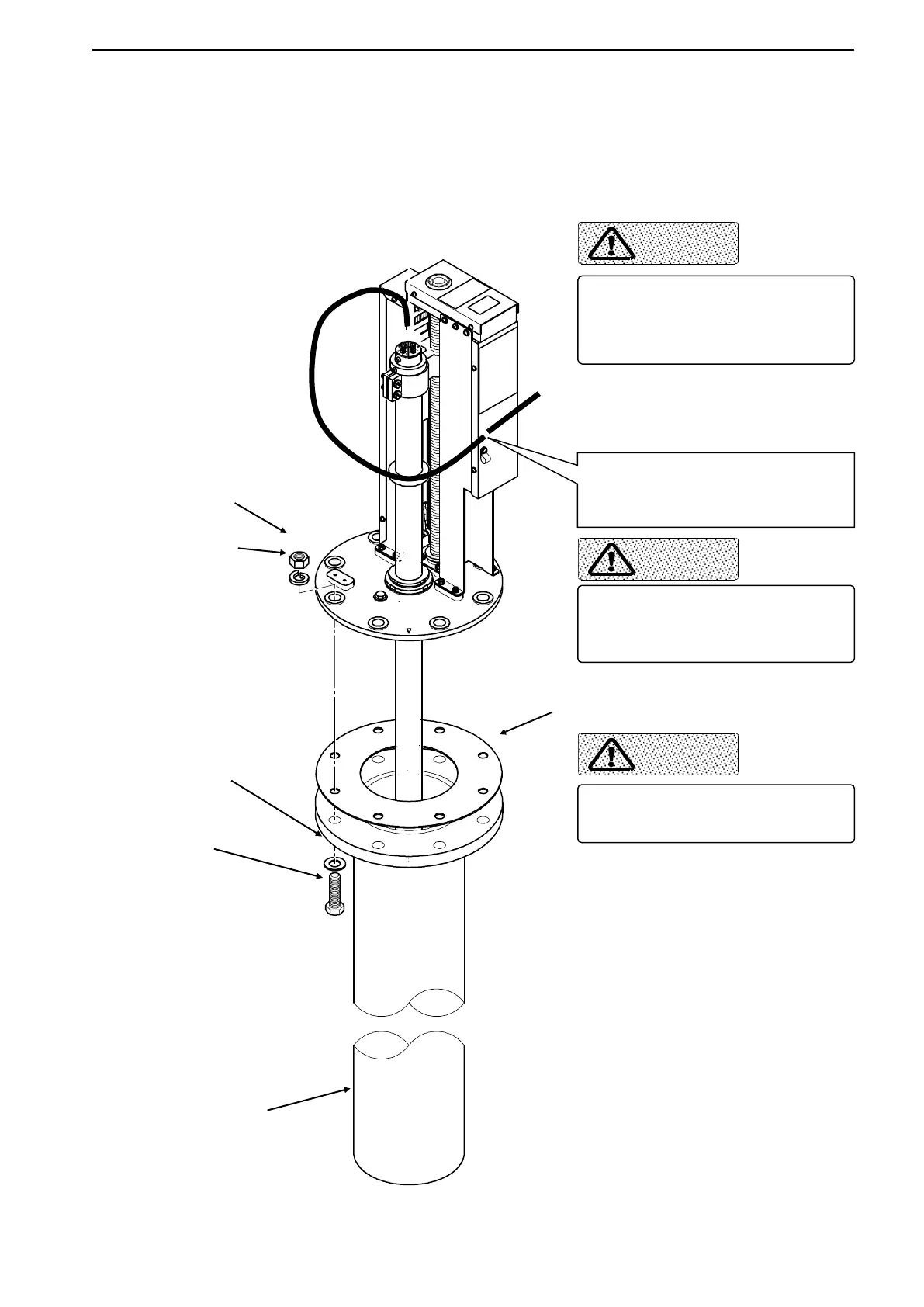

6) Assemble Hull unit with TD tank
Insert Gum Packing between Hull unit and TD tank.
Use 8 Hex.Bolts (M16x65) to fit Hull unit in TD tank.
Check the performance of hoisting/lowering of the Transducer unit several times while
tentatively clamping with Hex.Bolts and fasten them after the performance is confirmed.
Do not apply Adhesive, etc. on the
Gum Packing for Flange.
Flat Washer
(16 x 32 x 2)
Fix the Transducer unit cable with a
Nylon Clip.
The sufficient space should be kept
not to disturb the raise/lower of the
the transducer unit.
Apply Grease regularly to the parts
of Gear of Hull unit and Flange
Opening.
To Next Page
