AU-DDR Advanced U-Arm System with
Dynamic Digital Radiography (KDR AU DDR)
III. USER INTERFACES

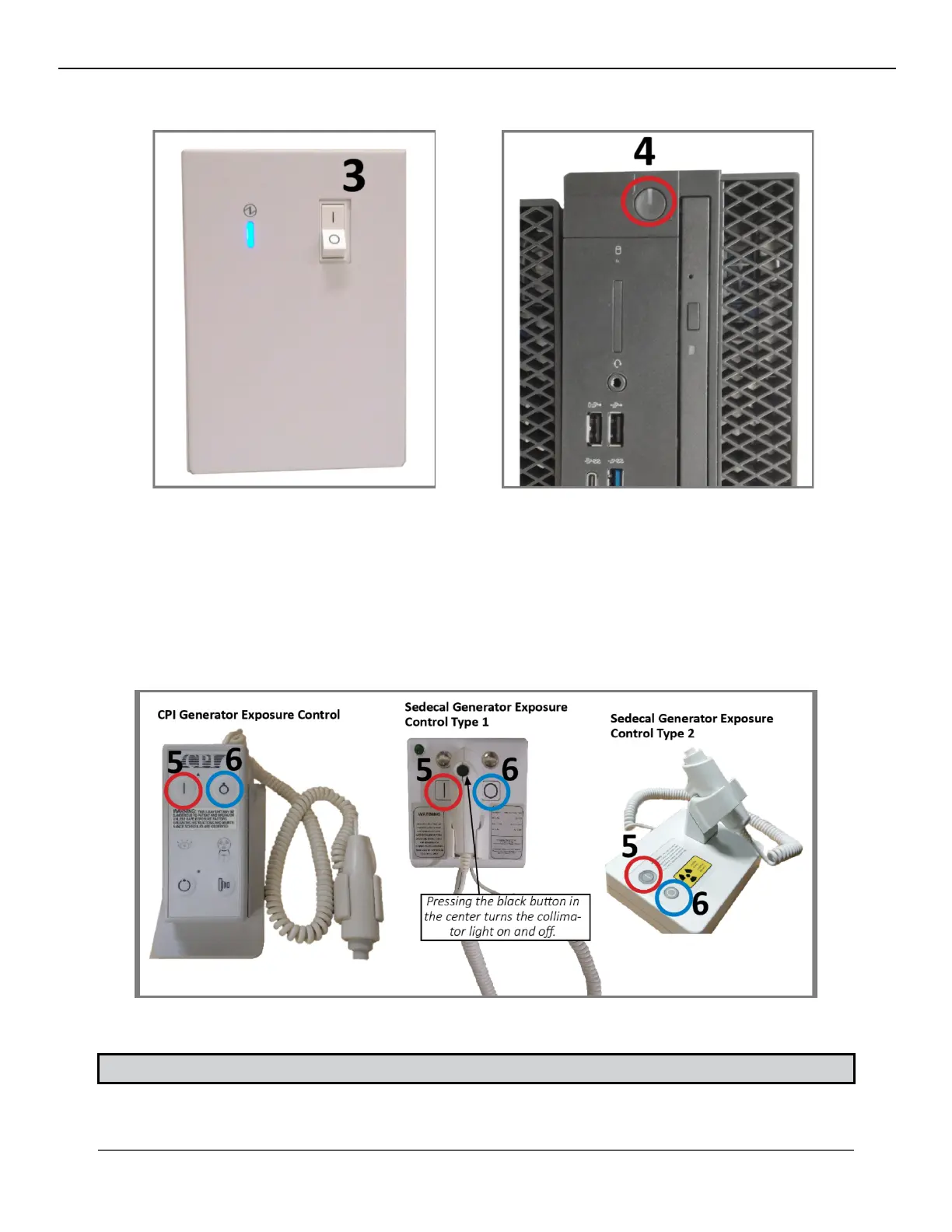

Figure 9.1.3
Interface Power Supply Unit Switch “3”
Figure 9.1.4
Computer Switch “4”
This controls the power to the computer. ULTRA software will automatically load.
Make sure steps 1, 2, 3, and 4 are complete before turning on switch “5.”
5. Turn on the generator.
Press the upper left button on the generator control unit labelled “5” (see Figure 9.1.5).
Figure 9.1.5
Switches “5” and “6”
This controls the power to the generator.
NOTE: Pressing and holding the hand-held exposure control button will make an exposure.
