14.2 Ultra Screen Overview: Upper Icons
Technologist Icon: displays the select-
ed technologist of record for the exam.
Exit Icon: clicking the exit icon
logs you out of the Ultra soft-
ware.
DR Panel Battery Indicator: (wireless
DR panels only) – when fully green,
batteries are fully charged. As the
battery becomes more discharged with
use, the green portion will display less
in stages.
Search Field: this eld is used to search
for previous exams. The search checks for
a match in all available elds for patient ex-
ams within either the worklist or completed
tabs.
Broken Link Icon: When a wireless DR
panel battery has become fully dis-
charged or if the panel has been turned
off, the battery indicator will change to
a broken link icon.
Home Return: touching the
Home button clears all search
lters and returns the display
back to the default unltered
view.
Options Icon: launches the options
menu to congure settings for Ultra
and devices (password required.)
Refresh: refreshes the Ultra
Worklist screen.
IV. SOFTWARE
14.0 ULTRA SCREEN OVERVIEW
14.1 Ultra Screen Overview

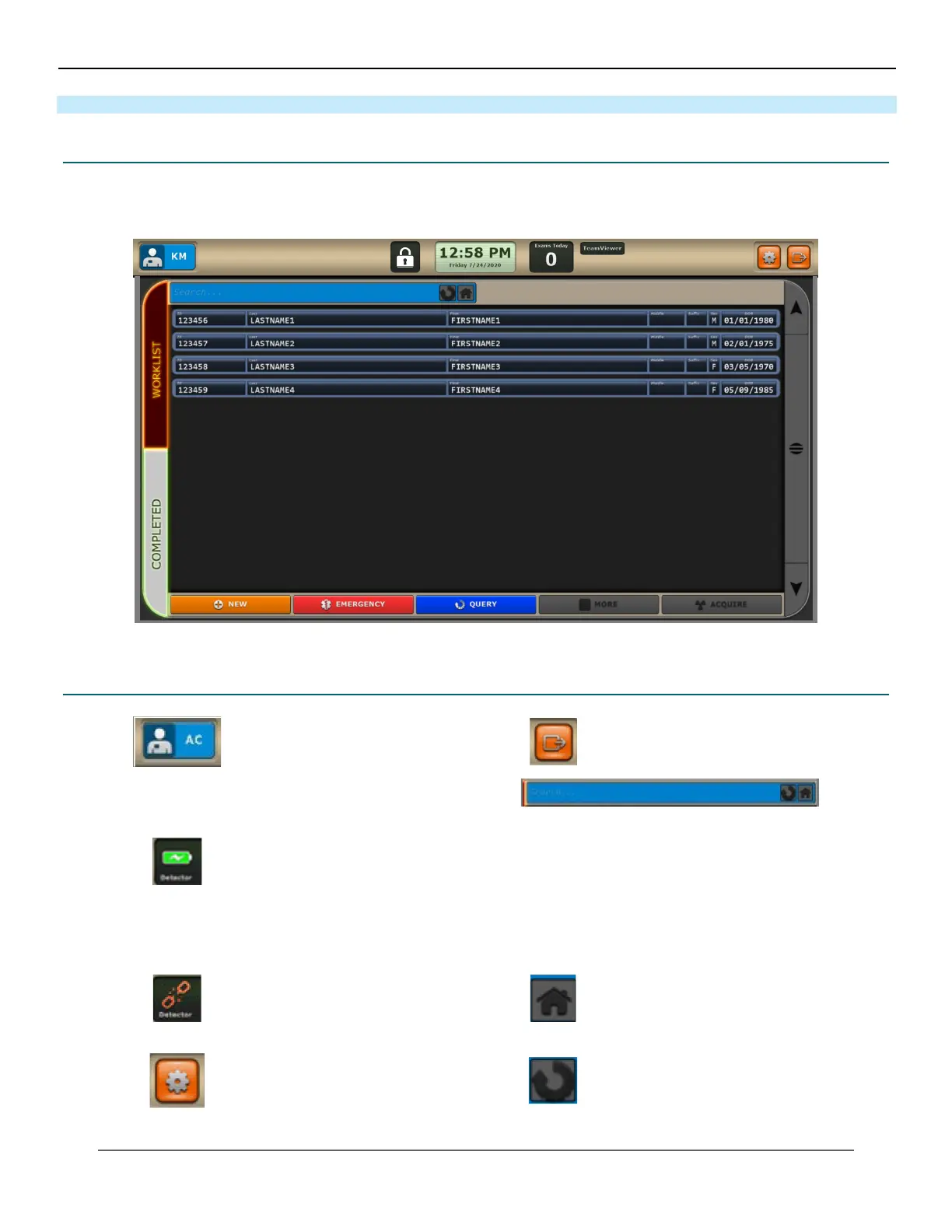

Figure 14.1.1
Ultra Screen Overview
