Konica Minolta KDR AU DDR User Manual

105
KMHA 500-000099
Revision D
KDR
TM
AU-DDR Advanced U-Arm System with
Dynamic Digital Radiography (KDR AU DDR)
22.7 Physicist Mode - ROI
Physics tools are used for image diagnostics. These tools are designed for use by engineers or technicians only.
The ROI tool is a click and drag utility that allows you to draw a box around a portion of the image to determine the values
of that selected area. As the box is resized, the dimension of the custom ROI being drawn is displayed.
1. Acquire an Image

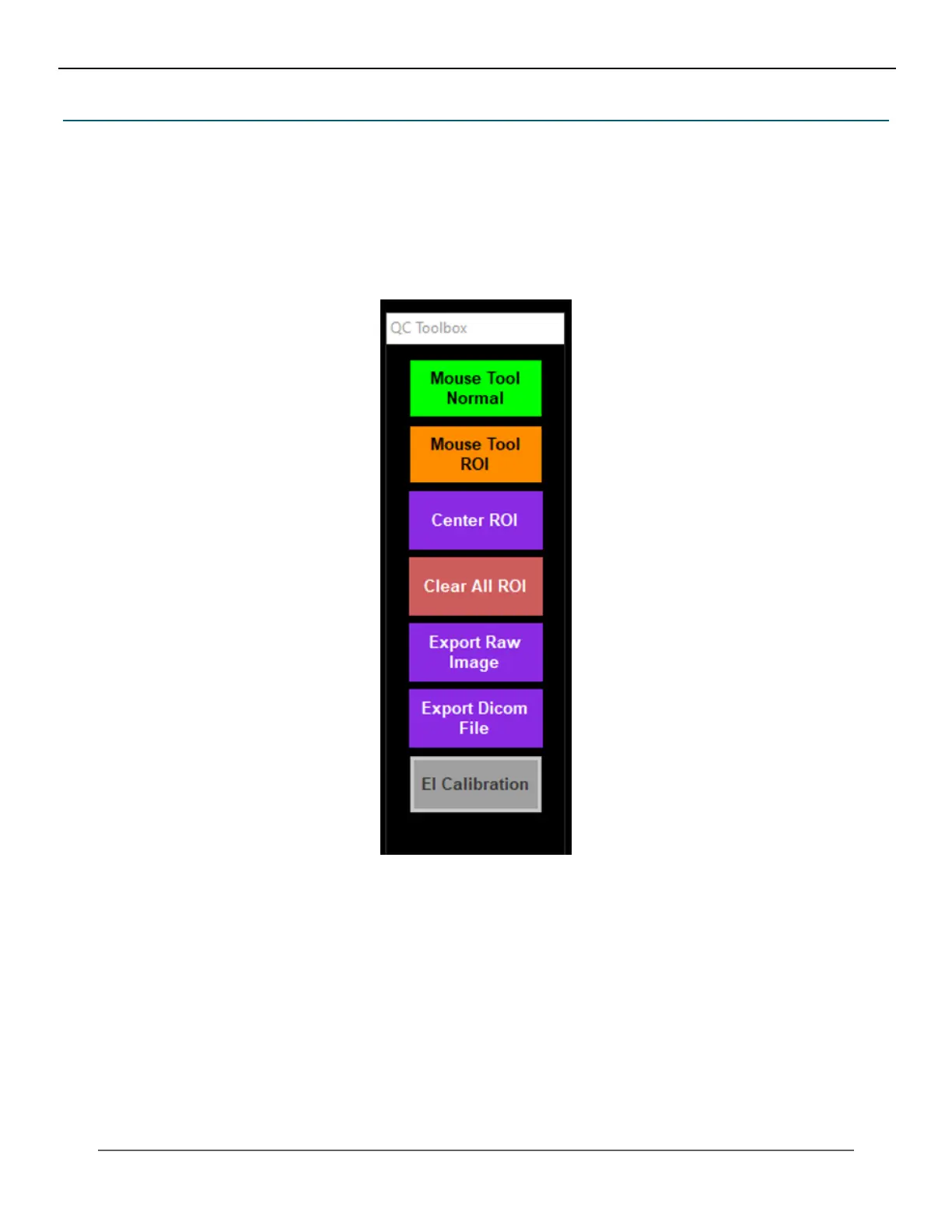

2. In acquisition screen, right click on the Annotation button. The QC toolbox displays:
IV. SOFTWARE
