Konica Minolta KDR AU DDR - Page 28

28
KMHA 500-000099
Revision D
KDR
TM
AU-DDR Advanced U-Arm System with
Dynamic Digital Radiography (KDR AU DDR)
III. USER INTERFACES

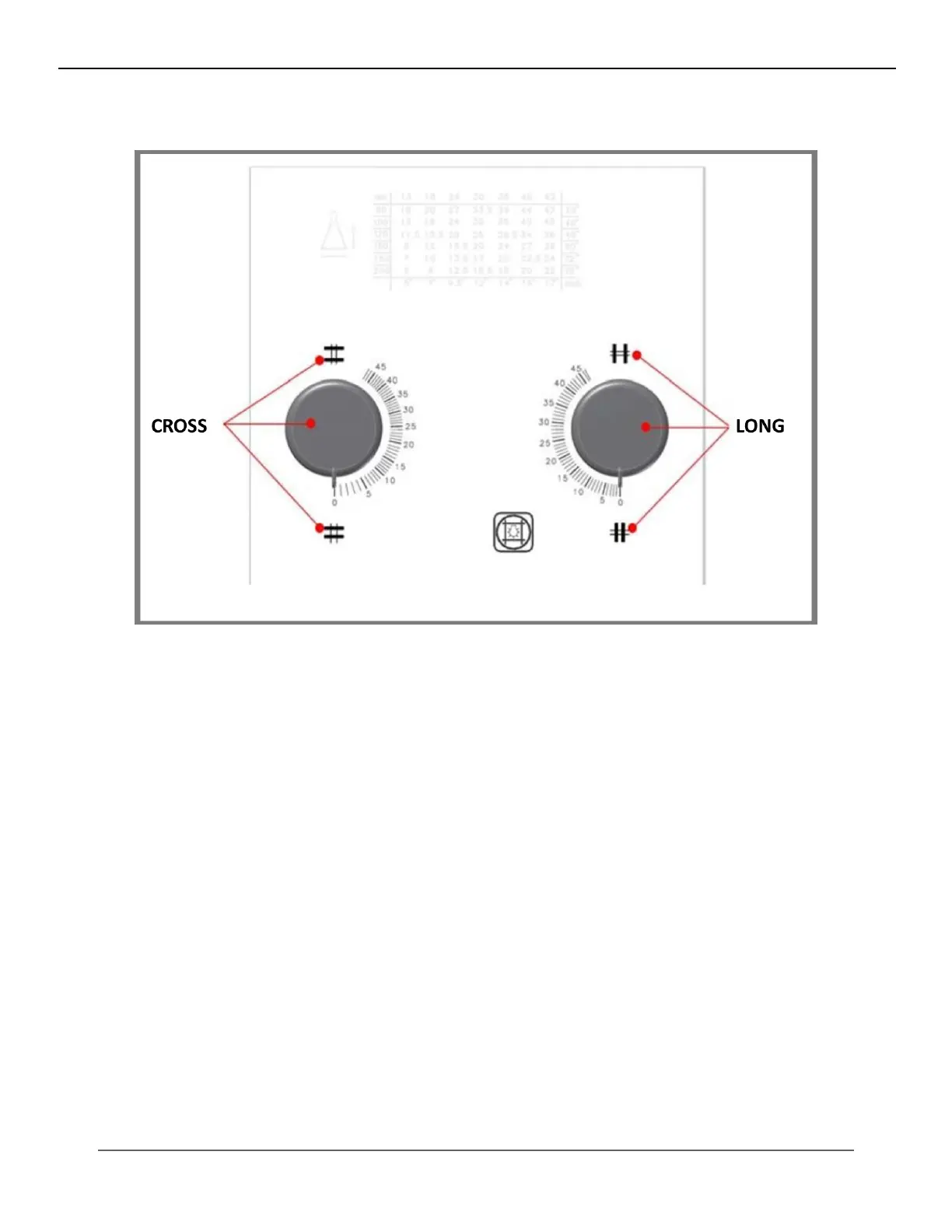

Figure 10.2.1
Front Panel
Figures 10.2.2 and 10.2.3 show the values that must be set with the knobs. The exact value to be set is obtained by cross-
ing the SID in use (the value indicated by the vertical axis), with the cassette size value in cm or inches (horizontal axis).
