AU-DDR Advanced U-Arm System with
Dynamic Digital Radiography (KDR AU DDR)

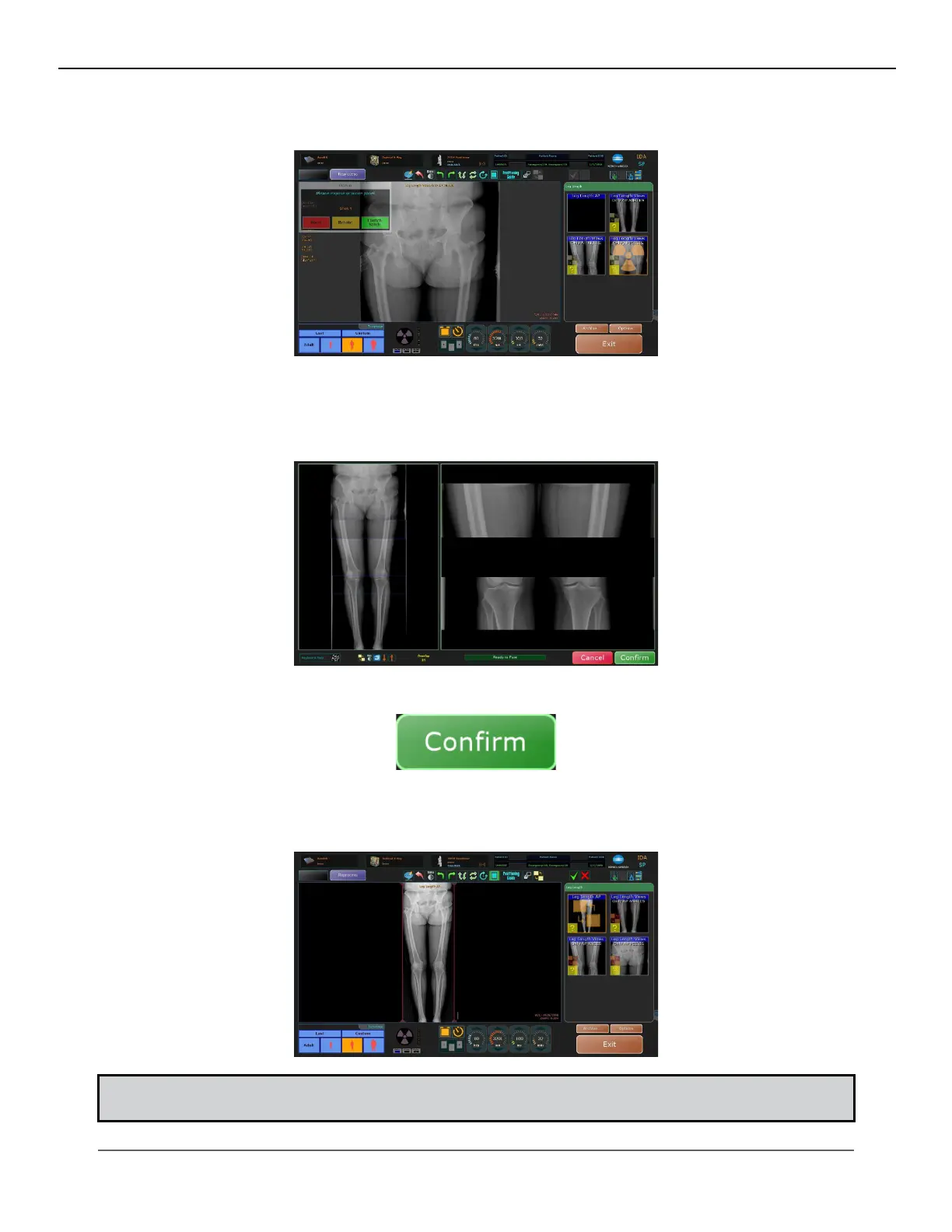

5. Left click on the Pelvis leg length view.
6. Finally, left click on the stitching icon.
7. After left clicking on the stitching icon, this window will appear, allowing you to manipulate the image however
necessary.
8. After clicking the Conrm button, your nal stitched image will appear.
9. At this point, you are able to either accept the stitched image or re-stitch the two to four images together again
if you decide they are not lined up correctly.
CAUTION: Images can be re-stitched as many times as needed. Even if the images have been sent to PACS, this
process can be followed to send another edited nal stitched image.
IV. SOFTWARE
