Loading Paper (continued)
8-6 Maintenance & Supplies
Maintenance & Supplies
Loading Paper in LCT (LT-402/LT-412)
When Thick or Thin is displayed on the tray key of the Basic Screen, be sure to load the
specified paper; otherwise mishandled paper may occur.
When TAB is displayed on the tray key of the Basic Screen, see p. 8-9.

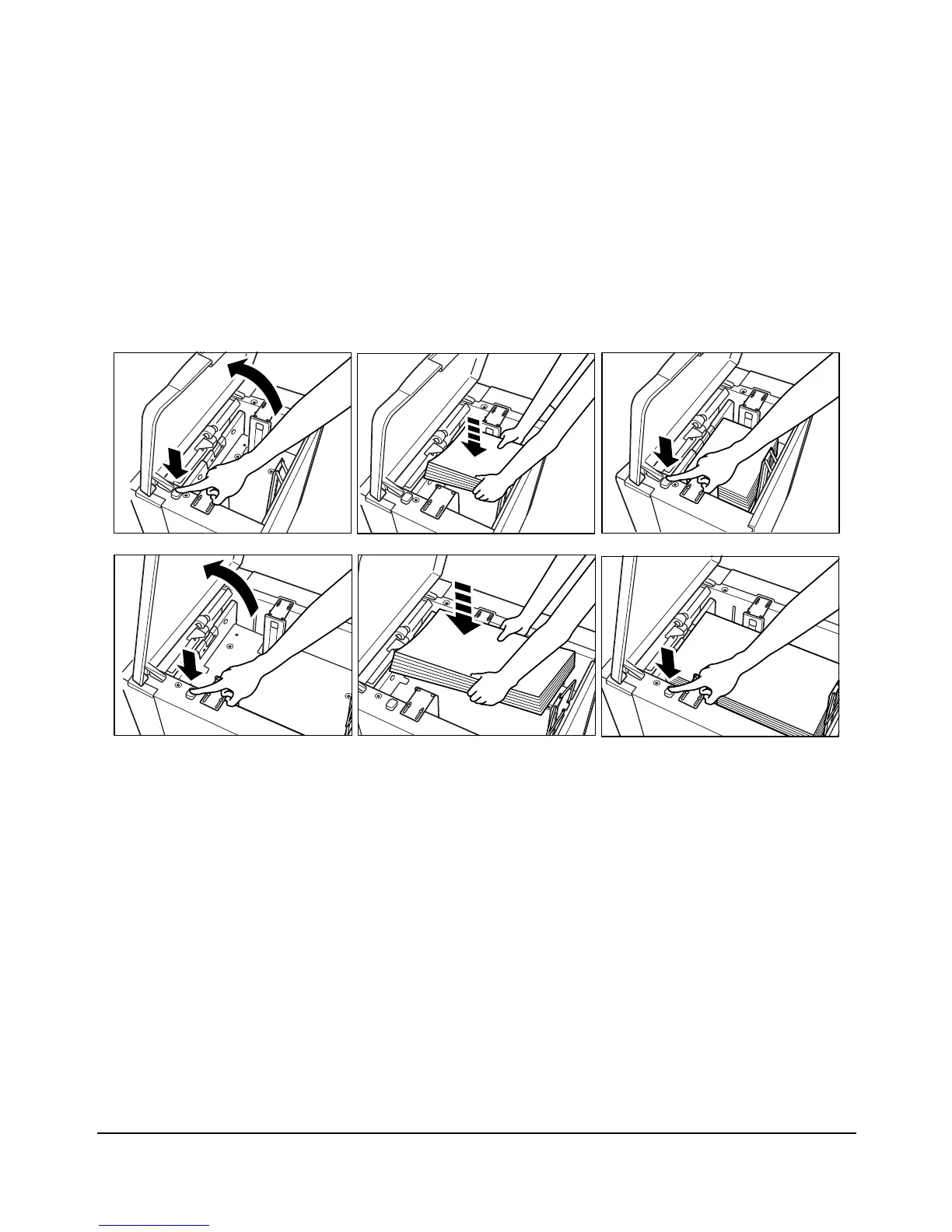

1 Open the LCT top door.
2 Press the paper loading button to lower the LCT bottom plate.
3 Load the fixed size paper into the LCT with the paper curl turning downward.
4 Repeat the steps 2 and 3 until the bottom plate cannot go down any more.
Load size 8.5"x11" or A4 (service-adjustable) for LT-402; or load size 11"x17", 8.5"x14",
8.5"x11", 8.5"x11"R, A3, B4, A4, A4R, or F4 for LT-412.
Do not stack paper above the paper hook level.
5 Close the LCT top door.
To Next Page
