Internal Machine

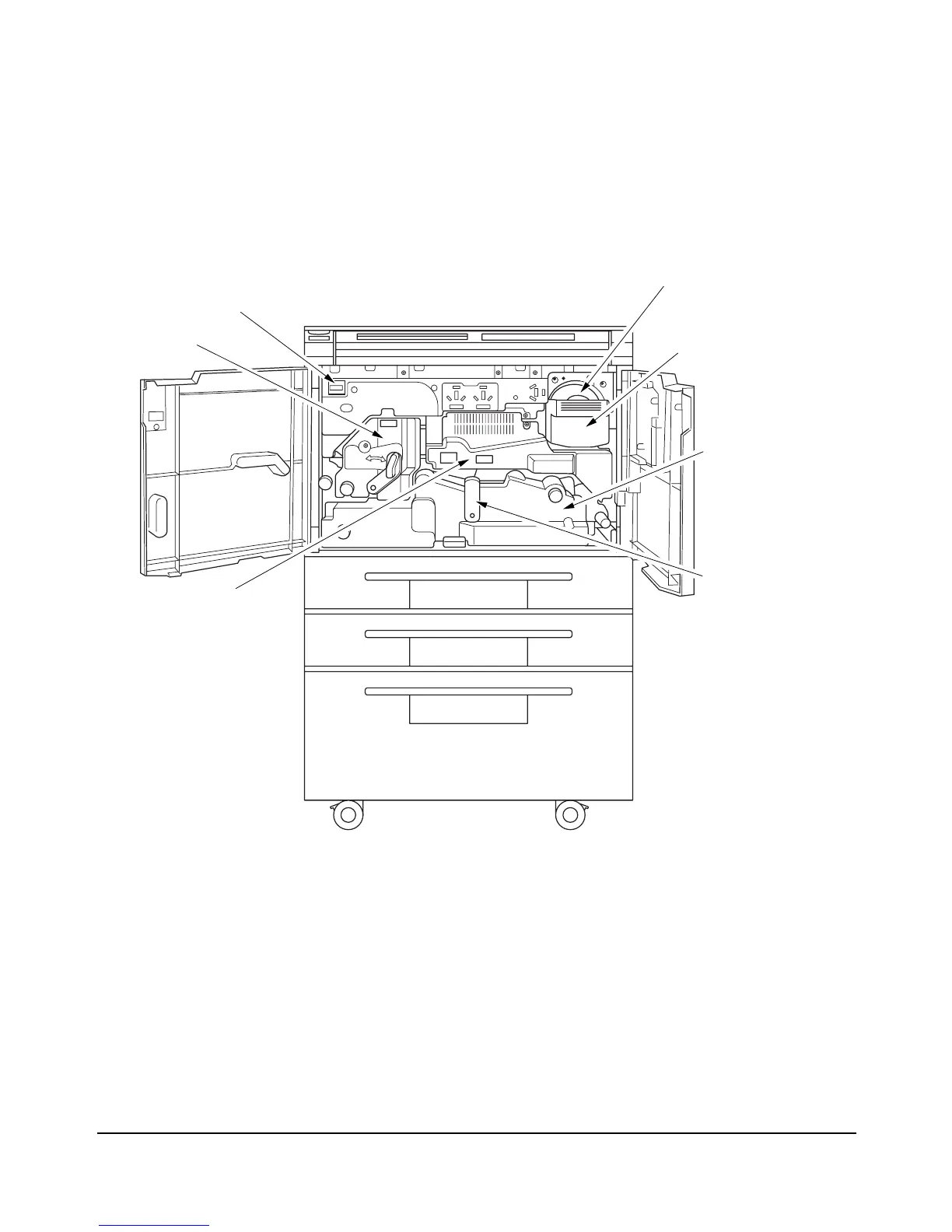

Internal Machine Call-outs
1Toner cartridge holds toner and is replaced when replenishing toner.
2Toner cartridge holder lever can be pulled forward to withdraw the toner cartridge
holder for replacing the toner cartridge.
3 Conveyance/Fixing unit passes the paper through the drum unit, and fuses the
toner onto the print paper, and is to be withdrawn for removal of mishandled paper.
4Lever A can be moved to withdraw the conveyance fixing unit for removal of
mishandled paper.
5 Drum unit forms the print image.
6 Fixing unit fuses the toner onto the print paper.
7Total counter indicates the total number of prints made.
q Toner cartridge
w Toner cartridge
holder lever
e Conveyance/
Fixing unit
r Lever A
t Drum unit
y Fixing unit
u Total counter
